A fully equipped operating room, built on the legendary Toyota Hino chassis and constructed with high-strength CTP composite panels. Surgical care, anywhere.
When your mission requires taking surgical capabilities beyond the hospital walls, you need a platform that is as tough as it is functional. You need a vehicle that can handle rough terrain, extreme climates, and the rigorous demands of field surgery, all while maintaining a sterile, safe environment for both patients and medical staff.
Our Toyota Hino Mobile Surgery Unit is the answer. It combines the world-renowned reliability of a Hino truck with our advanced medical body construction using CTP (Composite Technology Panel) sandwich panels. This isn’t just a vehicle; it’s a durable, self-contained surgical facility engineered for rapid deployment in the most challenging environments, from disaster zones to remote rural communities.
Why Choose the Toyota Hino & CTP Panel Combination?
This specific configuration is born from decades of experience building mobile units for military, humanitarian, and government clients. Here’s why this combination is a game-changer:
- Unmatched Reliability: The Toyota Hino chassis is legendary for its durability, low maintenance costs, and ability to perform reliably in extreme conditions, from scorching deserts to freezing mountains.
- Superior Thermal & Acoustic Insulation: CTP sandwich panels (fiberglass reinforced plastic outer layers with a high-density foam core) provide exceptional insulation. This means your HVAC system works efficiently, maintaining a stable internal temperature with less energy, and keeping the operating room quiet.
- 100% Waterproof & Corrosion-Resistant: Unlike traditional metal or wood constructions, CTP panels are completely waterproof and will never rust or rot. This ensures a longer lifespan for your valuable asset and maintains the sterile integrity of the walls.
- Lightweight & Strong: CTP panels offer a high strength-to-weight ratio, allowing for a fully equipped surgical suite without overburdening the chassis, which improves fuel efficiency and handling.
- Smooth, Sterile Surfaces: The non-porous, gel-coated interior surface of CTP panels is easy to clean, disinfect, and meets the highest hygiene standards for an operating room. There are no seams or crevices for bacteria to hide.
Technical Specifications: Built for Performance Mobile Surgery Unit for Sale
| Feature | Specification |
|---|---|
| Chassis | Toyota Hino (Model varies by regional availability & capacity, e.g., Hino 300 Series, 500 Series) |
| Body Construction | Full CTP (Composite Technology) Sandwich Panels. Thickness: 40mm – 60mm. |
| Dimensions (L x W x H) | Approx. 7.5m – 9.5m x 2.55m x 3.5m (Customizable based on chassis) |
| Gross Vehicle Mass (GVM) | 7.5 – 12 tons (depending on chassis) |
| Drive Configuration | 4×2 (Standard) / 4×4 (Optional for extreme terrain) |

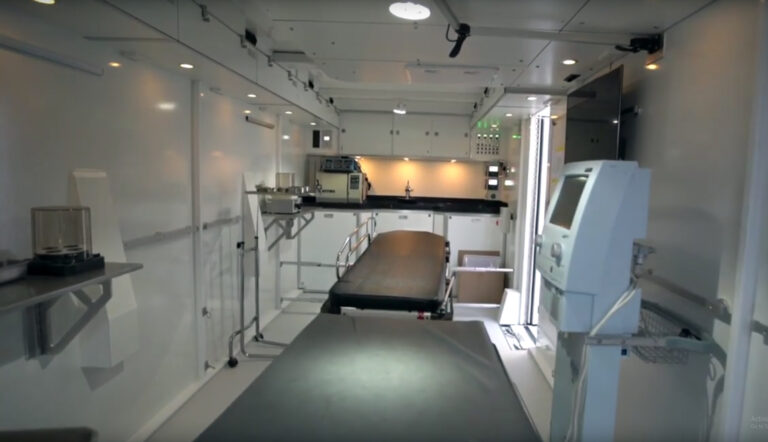

Interior Layout: Optimized for Surgical Workflow
The interior of the Toyota Hino Mobile Surgery Unit is meticulously designed to support a sterile and efficient surgical environment. The layout follows strict zoning principles to prevent cross-contamination.
1. Driver’s Cabin & Communication Area:
- Separate, air-conditioned cabin for the crew.
- Integrated communication and navigation systems.
2. Clean & Sterile Zones:
- Anteroom / Scrub Area: A dedicated space for surgical staff to perform hand hygiene, don sterile gowns and gloves, and prepare for entry into the main OR.
- Main Operating Room: The sterile core of the unit.
- Surgical Table: Electric-hydraulic, adjustable for various procedures.
- Surgical Lights: Dual LED surgical lights with shadowless, high-intensity illumination.
- Medical Gases: Centralized outlets for Oxygen, Medical Air, and Vacuum (suction).
- Anesthesia Area: Space and mounting for a modern anesthesia machine and patient monitor.
3. Support & Utility Zone:
- Equipment Storage: Secure, lockable cabinetry for surgical instruments and supplies.
- Sterilization Corner: Space for a bench-top autoclave to process instruments on-site.
- HVAC Controls: Central panel to manage the medical-grade air conditioning system.
Key Features & Integrated Systems Mobile Surgery Unit for Sale
- Medical-Grade HVAC System: A dedicated, high-capacity air conditioning system with HEPA filtration provides positive pressure, ensuring that only clean, filtered air enters the sterile operating field. It maintains precise temperature and humidity levels, critical for patient safety and equipment function.
- Redundant Electrical System:
- External Mains Hookup: For connection to shore power.
- On-Board Diesel Generator: A quiet, reliable generator (e.g., 8-12 kVA) provides primary power in the field.
- Uninterruptible Power Supply (UPS): An integrated inverter/battery system provides instant backup power for life-support and critical equipment in the event of a generator failure.
- Integrated Medical Gas System:
- Manifold with capacity for multiple large Oxygen and Medical Air cylinders, located in an easily accessible external compartment.
- Pipeline system with color-coded, quick-connect terminals inside the OR.
- Water & Waste Management:
- Fresh water tank (approx. 150-200 Liters) with electric pump.
- Waste water holding tank (approx. 150-200 Liters).
- Instantaneous water heater for the scrub sink.
Pricing & Customization
The Toyota Hino Mobile Surgery Unit is a semi-custom platform designed to meet a wide range of operational needs and budgets. The final price depends on the specific chassis model, the level of medical equipment integration, and optional features like 4×4 drive.
| Base Configuration | Description | Estimated Price Range (Ex Works) |
|---|---|---|
| Standard Mission Unit | Toyota Hino 4×2 chassis, standard CTP body, basic surgical lighting and table, essential HVAC and electrical system. Ideal for routine surgical outreach in accessible areas. | €80,000 – €95,000 |
| Advanced Field OR | Toyota Hino 4×2 or 4×4 chassis, enhanced insulation, premium LED lights, advanced anesthesia monitor, integrated UPS system, upgraded HVAC. Perfect for demanding field hospitals and longer missions. | €95,000 – €110,000 |
| Full-Spec Tactical Unit | Toyota Hino 4×4 chassis, heavy-duty suspension, full medical equipment package (including autoclave, advanced patient monitor, full suite of surgical instruments), 4×4 capability, and maximum system redundancy. Designed for military and disaster response. | €110,000 – €120,000+ |
Note: Prices are estimates and exclude optional extras, shipping, taxes, and destination charges. A detailed quote can be provided based on your specific mission requirements.
Who Is This Unit For?
- Ministries of Health seeking to expand surgical access to remote populations.
- Military Medical Corps requiring a mobile, rugged forward surgical team (FST) platform.
- International NGOs and Humanitarian Organizations involved in disaster response and long-term development.
- Private Hospitals needing temporary surge capacity or a mobile outreach program.
Why Choose Infinity Chassis Units?
With over 25 years of experience, we don’t just bolt medical equipment into a truck. We engineer integrated, mission-ready surgical platforms from the ground up. Our team works closely with you to understand your specific clinical workflows and environmental challenges, ensuring the final vehicle performs flawlessly when it matters most.
Ready to bring surgical care to the front lines?
Contact us today for a detailed consultation and a customized quote for your Toyota Hino Mobile Surgery Unit.
