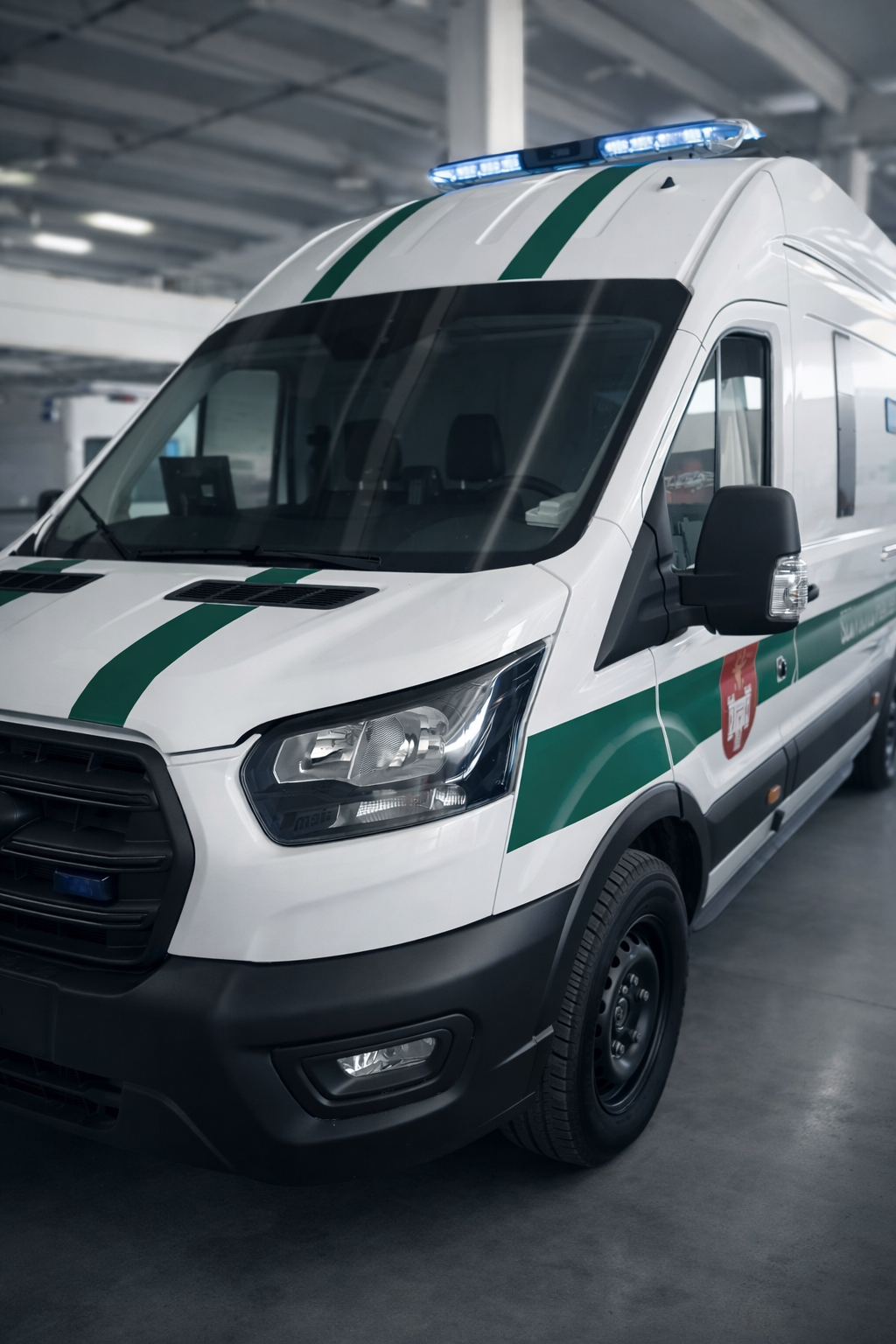

Vehicle Platform & Core Engineering Prisoner Transport Vehicle

Our custody transport van is constructed on a reliable, heavy-duty van platform, specifically selected for its durability, payload capacity, and service network. The foundation is a rear dual-wheel (4×2) automatic diesel chassis, providing the necessary stability and torque for urban maneuvering and highway transit under full load.

Powertrain & Performance Specifications

• Engine: Turbocharged diesel engine, displacement ≥ 2.7L, delivering ≥170 HP, ensuring reliable performance under full load and in varied climatic conditions.
• Emission Standard: Fully compliant with Euro 5/6 emission regulations, facilitating registration and operation within the EU and other regions with strict environmental standards.
• Transmission: Fully automatic transmission for smooth operation and reduced driver fatigue during extended duty cycles.
• Chassis: Reinforced chassis structure to support the additional weight of security fittings and withstand the rigors of constant operational use.

Interior Security Configuration & Capacity

The interior layout is the cornerstone of the vehicle’s security functionality. It is designed to maximize safety by physically separating detainees from escort personnel and from each other, thereby minimizing risk during transit.

Secure Detainee Compartment

• Capacity: Configurable for the secure transport of up to 14 detainees.
• Cell Structure: Four (4) separate, independently locking security cells constructed within the main compartment. This segregation prevents collusion and manages risk by category (e.g., by gender, risk level, or gang affiliation).
• Interior Construction: Walls, ceiling, and floor of the detainee area are lined with reinforced, laminated plywood and overlaid with 3mm thick aluminum checker plate. This combination provides exceptional resistance to vandalism, attempted concealment of contraband, and is easy to clean and disinfect.
• Seating: Fixed, bench-style seating within each cell, fabricated from reinforced, seamless polycarbonate material. Seats are designed to be vandal-proof, without crevices, and are securely bolted to the vehicle structure.
• Doors & Partitions: Individual cell doors and the partition separating the detainee compartment from the driver/escort area are constructed from steel reinforcement and high-impact, transparent polycarbonate. This allows for maximum visual supervision while maintaining a formidable physical barrier.

Escort & Driver Cabin

• Capacity: Designed to comfortably and safely accommodate up to 4 escort officers in addition to the driver.
• Layout: Separate, secure cabin with direct access to the driver’s area. Includes dedicated seating and secure storage for equipment.
• Access Control: All access points to the detainee compartment are controlled exclusively from the escort cabin via a centralized locking panel, ensuring officers maintain complete control over movement.

Security Systems & Containment Features

Beyond physical strength, the vehicle integrates multiple layers of electronic and mechanical security to create a comprehensive correctional transport solution.

Physical Security & Access Control

• Locking Systems: High-security, pick-resistant mechanical locks on all external and internal security doors. An electronic central locking system, controlled from the escort cabin, allows for rapid lockdown in an emergency.
• Windows: All windows in the detainee compartment are fitted with heavy-duty polycarbonate glazing, resistant to impact and scratching. Driver and escort area windows may be fitted with optional ballistic or attack-resistant glazing.
• Communication: A secure, hands-free intercom system allows clear communication between escort personnel and individuals in specific cells without compromising security.

Integrated Video Surveillance System

• Camera Coverage: A comprehensive IP-rated digital video surveillance system is installed with multiple strategic camera views covering: each individual cell, the central detainee aisle, the exterior perimeter of the vehicle, and the driver’s cabin.
• Recording & Storage: High-definition recording onto a dedicated, vibration-resistant Digital Video Recorder (DVR) with a minimum of 15 days of continuous storage capacity. Footage is critical for incident review and procedural accountability.
• Monitoring: Live feeds from all cameras are displayed on monitors within the escort cabin, providing real-time situational awareness to officers throughout the journey.

Environmental Control & Operational Systems

To ensure duty of care and operational functionality in all climates, the vehicle is equipped with independent environmental systems.

• Ventilation: A dedicated, forced-air ventilation system with separate ducts for the driver’s cabin, escort area, and each secure cell. This ensures adequate fresh air circulation and prevents fumes from entering occupant areas.
• Heating: An independent diesel-fired air heater provides reliable warmth for the detainee compartment and escort area in cold climates, independent of the vehicle’s main engine.
• Lighting: Each secure cell is equipped with its own sealed, vandal-resistant LED light fixture, controlled by escort personnel. General aisle lighting and emergency lighting are also provided.

Safety, Emergency & Regulatory Features

The vehicle is designed not only to prevent incidents but also to manage emergencies effectively.

• Emergency Lighting & Siren: Integrated roof-mounted LED warning light bar and electronic siren system for use during high-priority escorts or emergency situations.
• Emergency Exits: Clearly marked, mechanically operated emergency exits are installed in the escort cabin and, as per regulation, in the detainee compartment, operable only by authorized personnel from the outside.
• Safety Equipment: Includes onboard fire extinguishers, first-aid kit, and emergency tools, all securely mounted in the escort cabin.
• Regulatory Markings: Exterior is prepared for the application of official agency livery, emergency contact numbers, and any required regulatory markings as per the operating country’s laws.

Compliance & Certification Framework Prisoner Transport Vehicle

Infinity Chassis Units designs and manufactures this high-security transport van within a framework aimed at facilitating client compliance with relevant national and international standards.

• Manufacturing Quality: Our production processes are governed by an ISO 9001:2015 certified Quality Management System, ensuring consistency, traceability, and reliability.
• Design Alignment: The vehicle’s design philosophy incorporates principles from EU vehicle safety regulations (ECE), recommendations for prisoner transport, and common requirements found in global penitentiary service specifications.
• Technical Documentation: We provide a comprehensive dossier including detailed technical specifications, wiring diagrams, material certifications, and maintenance manuals to support your agency’s internal approval and licensing processes.
• Customization for Tender Compliance: We recognize that each government tender vehicle specification is unique. Our engineering team works closely with clients to adapt the base design to meet specific national standards, required equipment lists, and operational protocols.

Operational Use-Case Scenarios Detainee Transport Vehicle

This versatile platform is designed to serve multiple critical functions within the justice and security ecosystem.

Daily Prisoner Transfer & Court Appearances

The standard configuration is ideal for the routine, high-volume movement of detainees between detention centers, courthouses, and medical facilities. The segregated cells allow for efficient, secure group transfers.

High-Security Escort & Special Operations

For the movement of high-risk individuals or sensitive operations, the vehicle’s robust construction, extensive surveillance, and independent systems provide a secure mobile containment platform. Options for additional armor plating and advanced communication systems are available.

Inter-City & Long-Distance Penitentiary Transport

The vehicle’s durability, reliability, and onboard systems make it suitable for secure long-distance transfers between correctional facilities across regions.

Infinity Chassis Units: Your Partner in Specialized Security Mobility

As a Turkish engineering-driven manufacturer, ICU brings a blend of advanced manufacturing capability, cost efficiency, and a deep understanding of the B2G sector. Our portfolio includes a range of armored and special-purpose vehicles, and we have a proven track record of successfully fulfilling technical specifications for government tenders worldwide. We do not offer a one-size-fits-all product; we provide engineered solutions that can be customized to your agency’s exact operational requirements and regulatory landscape.

Technical Specifications Summary Detainee Transport Vehicle

• Base Vehicle: Van-type, Rear Dual Wheel (4×2), Automatic Transmission
• Engine: Diesel, ≥2.7L, ≥170 HP, Euro 5/6 Compliant
• Capacity: 1 Driver + 4 Escort Officers + 14 Detainees (in 4 cells)
• Interior Security Lining: Reinforced Plywood + 3mm Aluminum Checker Plate
• Doors/Windows: Vandal-Resistant Polycarbonate & Security Glazing
• Surveillance: Full IP Camera System with 15-Day DVR
• Environmental: Independent Heating & Forced Ventilation per Cell
• Lighting: Individual Cell LED Lights + Emergency Lighting
• Safety: Central Locking, Intercom, Siren, Light Bar, Emergency Exits
• Compliance: Designed to Support EU/National Penitentiary Regulations

Procurement & Next Steps Detainee Transport Vehicle

This secure prisoner vehicle represents a strategic investment in the safety of your personnel, the security of your operations, and the integrity of the justice process. We invite procurement officials, fleet managers, and senior officers to engage with our technical team for a detailed briefing.

Contact Infinity Chassis Units Today to request the complete technical specification package, discuss customization options for your upcoming tender, or to initiate the process for a formal, detailed quotation tailored to your specific requirements and volume. Let our engineering expertise provide the reliable, compliant, and secure transport solution your duty demands.
