Ford Transit Ambulance

Technical Compliance Response

1. Engine and Vehicle Performance Parameters

• Ford Transit Ambulance The vehicle will be 2025 Model Ford Transit 350L, 2.0L EcoBlue Diesel, Manual Transmission.

• The engine output meets the required standard:

  • Power: 170 HP ±5% (compliant)

  • Torque and acceleration values comply with minimum requirements and are documented in the Ford technical sheet.

• The vehicle fully complies with Euro 6 emission standards.

• Manufacturing model year 2025 is confirmed.

2. Patient Compartment Dimensions

The ambulance conversion will be performed on the 2025 Ford Transit 350L High Roof / Long Wheelbase (LWB) chassis.

Net internal dimensions after insulation, wall panels and full ambulance conversion:

• Net Length: 3250 mm

• Net Height: 1820 mm

• Net Width:

  • Roof level: 1780 mm

  • Waist level: 1720 mm

  • Floor level: 1700 mm

➡️ These dimensions fully meet the minimum requirement of 3200 × 1800 × 1700 mm.

Ford Transit Ambulance:

Ford Transit Ambulance; In the high-stakes world of emergency medical services (EMS), the vehicle is more than just transport; it’s a mobile intensive care unit, a first responder’s sanctuary, and a critical link in the chain of survival. The Ford Transit Ambulance, as detailed in this technical offer from Infinity Chassis Units, stands as a paragon of this philosophy. This article provides an in-depth exploration of its features, medical equipment, and technical specifications, demonstrating why it is a top-tier choice for emergency and annual ambulance services worldwide.

Introduction: The Mobile Clinic on the Ford Transit Platform

Built on the robust and reliable Ford Transit chassis, this ambulance conversion is engineered to meet the rigorous demands of 24/7 emergency response. The vehicle is customized by INFINITY CHASSIS UNITS OTOMOTIV, a Turkish specialist in automotive import, export, and consultancy, ensuring that every component adheres to stringent quality and functionality standards. From its advanced electrical systems to its comprehensive medical arsenal, this Ford Transit Ambulance is designed to save lives.

1. Advanced Electrical and Warning Systems

A reliable electrical system is the backbone of any modern ambulance. This Ford Transit is equipped with a state-of-the-art setup to ensure operational readiness and safety.

• Lighting and Siren: The vehicle features a full suite of Armas (Turkey) warning equipment, including front and rear headlamps, an electronic siren with an announcement device, and multiple side warning lamps in blue and amber. This ensures high visibility and audibility in all emergency scenarios.

• Power Management: Critical for powering sensitive medical devices, the ambulance includes a 12V to 220V inverter and a 220V to 12V rectifier from EMS (Turkey). A secondary battery (Yiğit, Turkey) provides an independent power source, ensuring that medical equipment never loses power.

• Interior and Control: The cabin is illuminated with energy-efficient fluorescent lamps and spotlights. A centralized, illuminated control panel allows for intuitive management of the vehicle’s electrical functions. An intercom system (Kumel, Turkey) ensures clear communication between the driver’s cabin and the patient compartment.

• Safety and Connectivity: The electrical installation complies with TSE standards and includes thermal fuses, circuit breakers, and leakage current protection (Siemens, Germany). It also features multiple 12V and 220V sockets, a 220V external input, and a radio system with a Yaesu (Japan) antenna for seamless communication.

2. Comprehensive Medical Equipment: A Fully-Stocked Emergency Room on Wheels

The true measure of an ambulance is its medical capability. This Ford Transit is outfitted with a complete set of devices and supplies to handle a wide range of emergencies.

A. Critical Life Support Devices:

• Defibrillator with Monitor (Zoll M2, Germany): A 12kg advanced device for cardiac arrest management, allowing for rhythm monitoring and delivering life-saving shocks.

• Transport Ventilator (AVS, Turkey): A 15kg unit essential for patients who cannot breathe on their own, complete with wall mounting, patient circuits, and anesthesia masks.

• Portable Suction Unit (Oscar Bascoral, Italy): A 6.8kg vacuum aspirator for clearing airways, crucial for trauma and respiratory distress patients.

• Oxygen System: A robust system featuring two 10-liter oxygen tubes (Bursan, Turkey), regulators, flow meters, and dedicated sockets for both O2 and suction, ensuring a continuous supply of medical oxygen.

B. Patient Handling and Immobilization:

• Stretchers: The ambulance is equipped with a versatile array of patient transport solutions:

  • Main Stretcher (54kg): The primary patient bed with a locking system, cushion, safety belts, and arm support.

  • Scoop Stretcher (9.5kg): For safely lifting patients with suspected spinal injuries.

  • Vacuum Stretcher (Ems, Turkey): Molds to the patient’s body for optimal immobilization.

  • Chair Stretcher (12.4kg): For transporting patients in a seated position through narrow spaces.

  • Spine Board (Plastic) and Traction Splint Set: For full spinal immobilization and limb fracture stabilization.

C. Diagnostic and Medical Supplies:

• Diagnostics: A diagnostic set including otoscopes and a rhinoscope, portable and wall-mounted sphygmomanometers (Honsun, China), and a stethoscope (F-Bosh, Germany).

• Comprehensive Medical Kits: The vehicle includes meticulously stocked kits for various situations:

  • Basic Medical Supplies Bag: Contains a vast array of bandages, compresses, adhesive tapes, tourniquets, scissors, and other essential tools.

  • Emergency Set (Bag): Includes a portable oxygen unit, laryngoscope, intubation tubes, resuscitator (for adults and children), and injection sets.

  • Emergency Set (Söhngen, Germany) & Burnt Set (Söhngen, Germany): Specialized kits for pediatric emergencies and burn victims, including aluminum blankets, burn wraps, and maternity supplies.

  • Neck Collar Set and Inflatable Splint Set: For spinal and limb injury management.

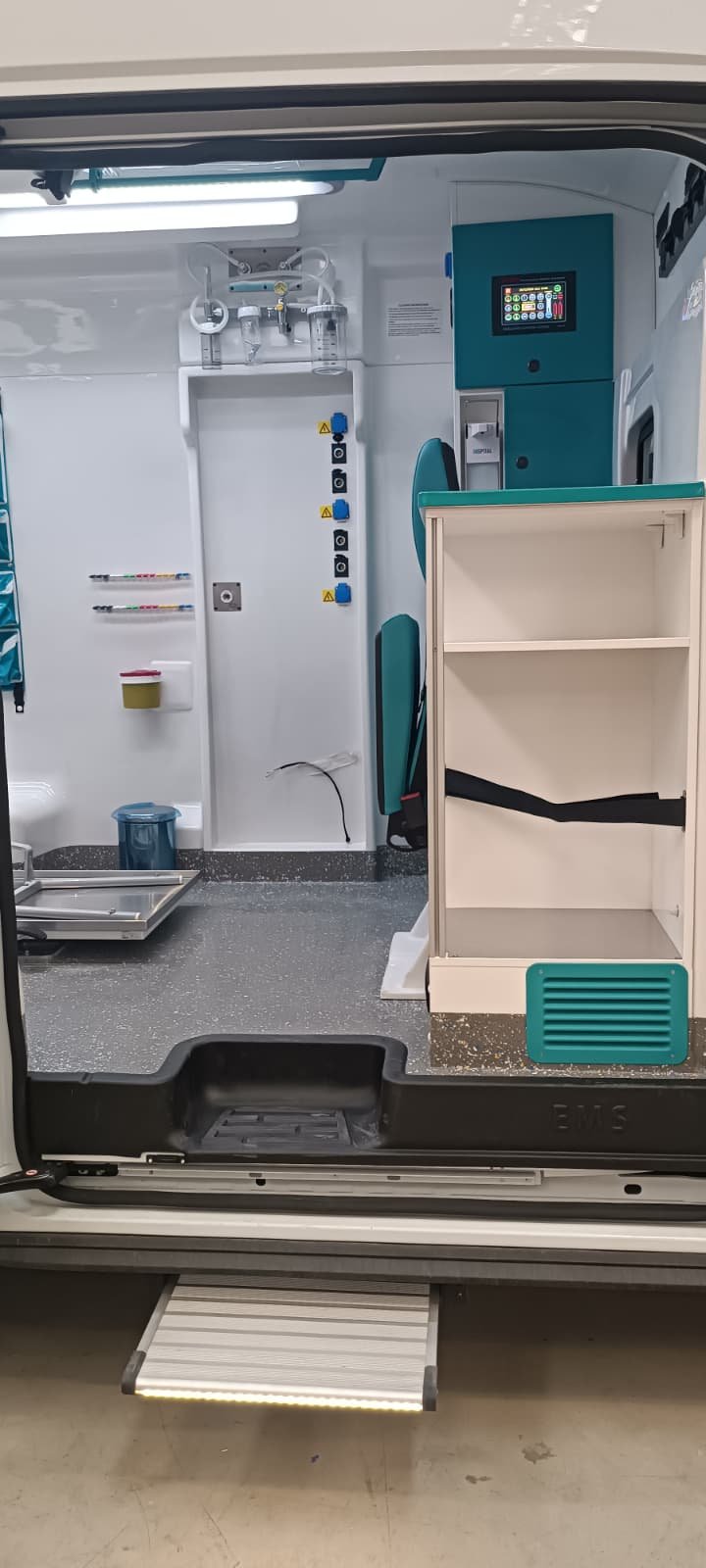

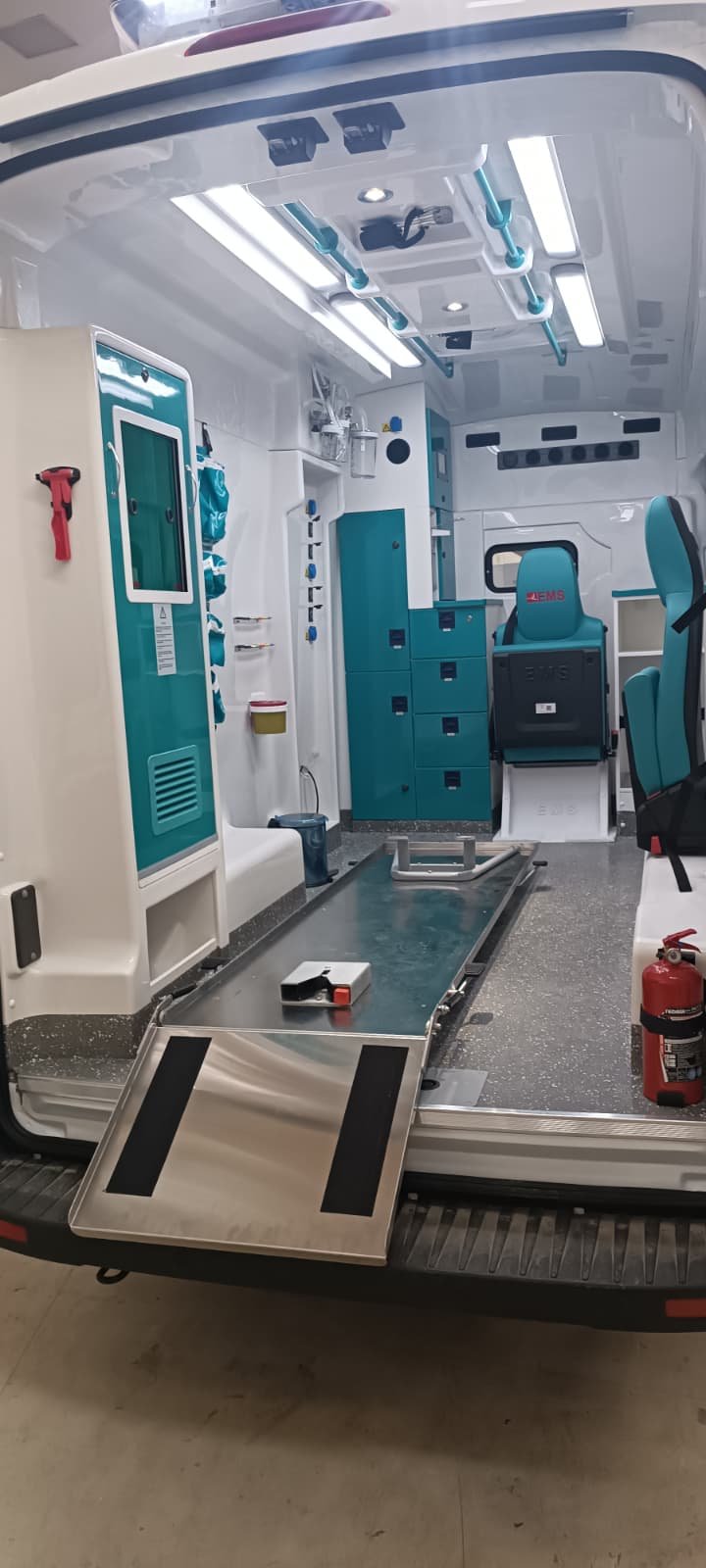

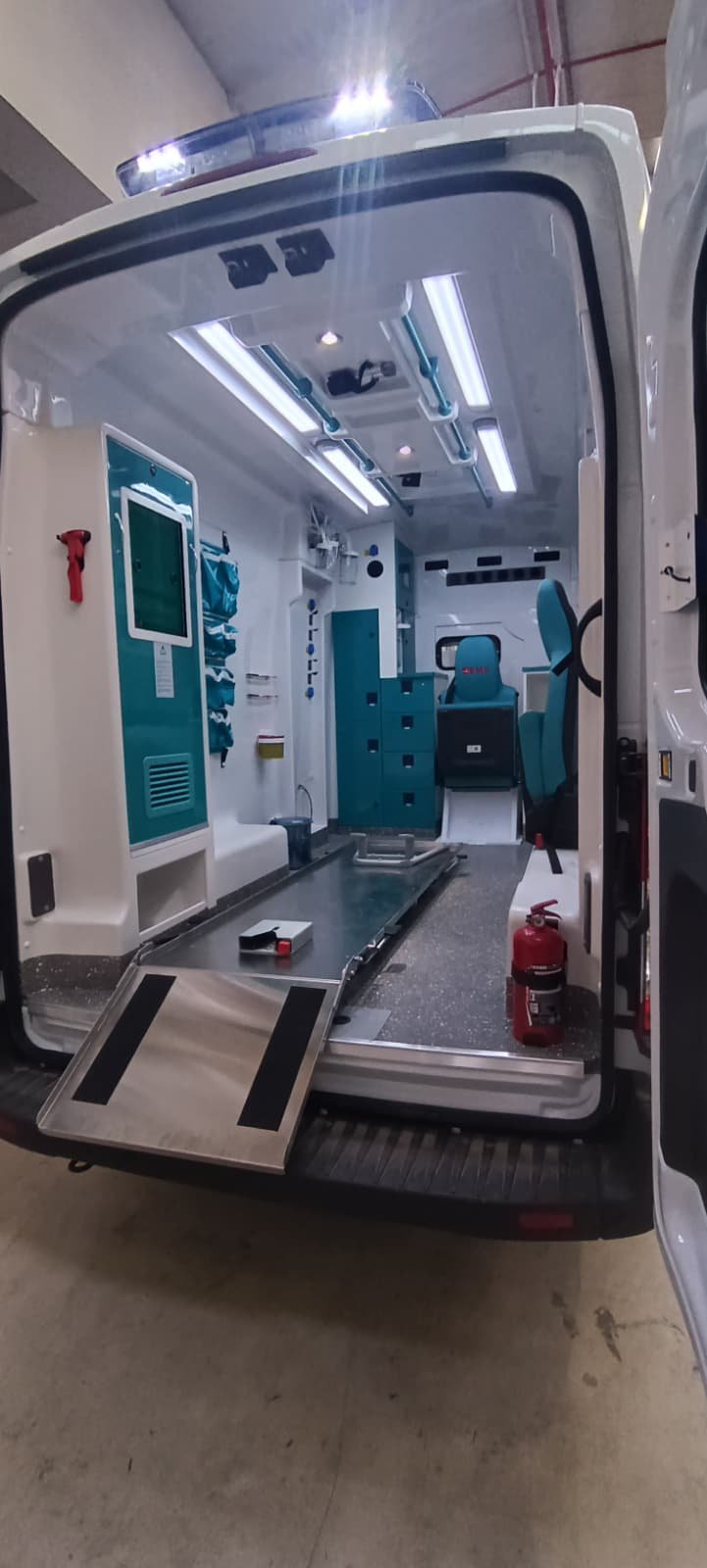

3. Interior Design, Cabinetry, and Climate Control

The patient cabin is engineered for efficiency, durability, and ease of sanitation.

• Cabinet System: The Foamboard cabinet system from Vekaplan (Germany) provides lightweight yet robust storage. It includes locked drawers, a dedicated cabinet for the ventilator, defibrillator, and aspirator, and specialized fixing apparatuses for all stretchers and spine boards.

• Interior Coating: The cabin features an easy-to-clean epoxy floor coating (Sika, Turkey) and ABS panels for the ceiling and walls. The monolithic MDF base is durable and resistant to heavy use.

• Climate Control: A dedicated chilling system for the patient cabinet and separate blowing vents for both the driver and patient compartments ensure a controlled and comfortable environment for the patient and crew, regardless of external conditions. A rear cabin heater (Yılkar, Turkey) provides warmth when needed.

• Insulation: The cabin is insulated with elastomeric rubber foam, reducing noise and maintaining a stable internal temperature, while side sheet reinforcements enhance structural integrity.

4. Crew and Operational Considerations

Understanding that the well-being of the medical team is crucial, this ambulance is designed with their needs in mind.

• Ergonomic Seating: A dedicated, heavy-duty doctor’s seat (51.8kg) and an attendant seat (30kg) are installed, providing secure and comfortable positioning during transport.

• Refrigerator (Dometic, Turkey): An essential unit for storing temperature-sensitive medications.

• Address Search Lamp (Armas, Turkey): A practical feature for locating addresses quickly during night-time calls.

Conclusion: Why Choose This Ford Transit Ambulance?

The Ford Transit Ambulance presented by INFINITY CHASSIS UNITS is more than just a vehicle; it is a fully integrated emergency response solution. Its strengths lie in:

1. Comprehensiveness: It leaves no stone unturned, from advanced life support and diagnostic equipment to basic but critical medical supplies.

2. Quality and Provenance: It features a blend of reputable international brands (Zoll, Siemens, Söhngen) and high-quality Turkish manufacturers (Armas, EMS, AVS), ensuring reliability and performance.

3. Thoughtful Design: The layout prioritizes workflow, with logically placed cabinets, secure equipment mounting, and an intuitive control panel, allowing medics to focus on patient care.

4. Robust Foundation: Built on the trusted Ford Transit chassis, it promises the durability, serviceability, and driving performance that fleet managers require.

For any municipality, private ambulance service, or organization looking to invest in a capable, reliable, and fully-equipped emergency medical vehicle, this Ford Transit Ambulance represents a premier choice, ready to serve and save lives from the moment it hits the road.
