Description

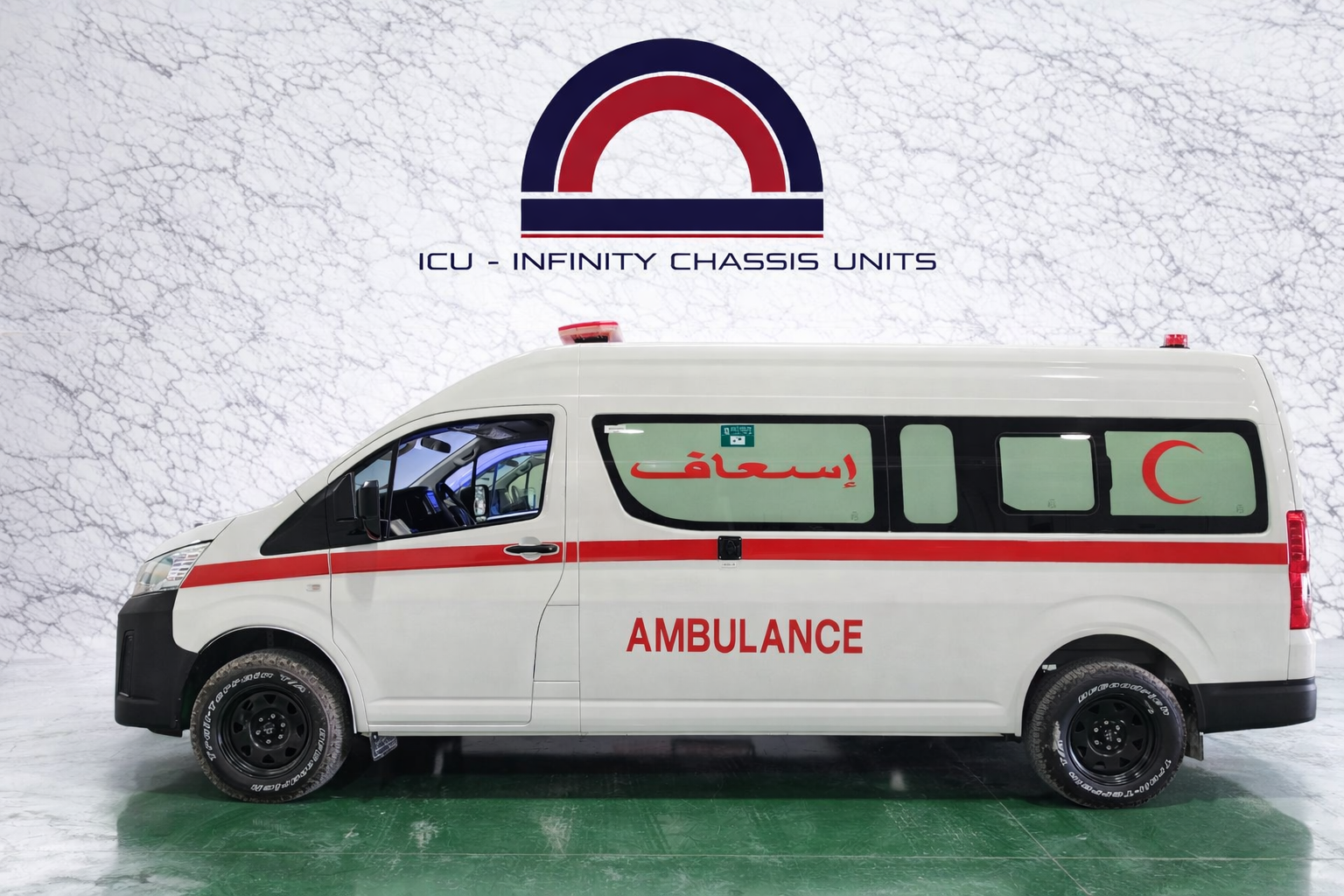

This document provides the technical specifications and configuration details for a purpose-built ambulance based on the Toyota Hiace 4×4 Ambulance platform. The vehicle is engineered for reliability, off-road capability, and sustained operation in the demanding environmental and infrastructural conditions prevalent across Africa.
Vehicle Base & Chassis Specifications
The ambulance conversion utilizes a new Toyota Hiace 4×4 panel van as its base vehicle, selected for its proven mechanical durability and service network.
-
Base Vehicle: Toyota Hiace 4×4 Panel Van.
-
Drivetrain: Selectable four-wheel-drive system (2H/4H/4L). Provides on-road efficiency with the capability to engage high-range 4WD for poor traction surfaces and low-range gearing for severe off-road gradients or soft terrain.
-
Engine: Turbocharged diesel engine, configured for high low-end torque and fuel efficiency. Diesel fuel suitability ensures wider availability and security in remote regions.
-
Transmission: Manual transmission, standard for the region, offering direct control and durability.
-
Steering Configuration: Left-hand drive (LHD), supplied as standard for export to continental Africa.
-
Suspension: The base vehicle’s suspension is evaluated and reinforced as necessary during conversion to account for the permanent added weight of the medical module and equipment, maintaining stability and ride characteristics.
-
Payload Capacity: The conversion is calculated to remain within the manufacturer’s gross vehicle weight rating (GVWR), ensuring structural integrity and braking performance.
Off-Road & Environmental Performance
The vehicle’s design prioritizes access and mobility in varied terrain typical of rural and remote areas.
-
Terrain Capability: Engineered for sustained travel on unpaved roads, compacted gravel, sandy tracks, and muddy conditions. The 4×4 system and appropriate all-terrain tires provide necessary traction.
-
Ground Clearance: The standard ground clearance of the Hiace 4×4 platform is maintained to navigate rutted tracks, drainage humps, and uneven surfaces without compromise.
-
Thermal Management: The engine cooling system is specified for continuous operation in high ambient temperatures, common in regions across Senegal, Kenya, and Ethiopia. Additional transmission oil coolers may be fitted for extreme-use cases.
-
Dust Protection: Enhanced air filtration and cabin sealing protocols are implemented to minimize dust ingress into both the engine bay and the patient compartment, protecting mechanical components and maintaining a clean medical environment.
Ambulance Conversion & Medical Cell Construction
The patient compartment is a dedicated, safety-certified medical module.
-
Structural Reinforcement: The patient cell is constructed with a reinforced frame integrated with the vehicle chassis, ensuring rigidity and crash safety.
-
Insulation: Full thermal and acoustic insulation is applied to the walls and ceiling. This regulates internal temperature and reduces noise and vibration for patient comfort during long-distance transfers.
-
Interior Surfaces: Walls and ceiling are lined with smooth, non-porous, medical-grade composite panels. The flooring is a seamless, chemical-resistant, and anti-slip material. All surfaces are designed for rapid decontamination and infection control.
-
Corrosion Protection: The underbody and all structural components of the medical module receive additional anti-corrosion treatment, suitable for coastal and humid climates in countries like Ghana, Cameroon, and Tanzania.
Medical Equipment Configuration
The vehicle is prepared as a platform for medical intervention. Two standard configuration levels are defined.
BLS (Basic Life Support) Configuration
This configuration provides the infrastructure for essential patient stabilization and transport.
-
Stretcher System: A certified, height-adjustable, wheeled ambulance stretcher with a multi-point locking mechanism is mounted centrally.
-
Oxygen System: A fixed, high-capacity medical oxygen cylinder is installed in a secured, externally-ventilated compartment. The system includes a pressure regulator, flowmeter, and outlet points inside the patient cabin.
-
Suction Unit: A portable or fixed electrically-operated suction unit is provided, with storage for associated consumables.
-
Storage: Locking, shock-mounted cabinets and drawers are installed for organized storage of BLS equipment, trauma kits, IV supplies, and immobilization devices.
ALS (Advanced Life Support) Optional Upgrade
The vehicle can be configured as an ALS-ready platform to support advanced interventions.
-
Infrastructure Preparation: Electrical pre-wiring for mounting a patient monitor/defibrillator and additional medical devices. Secured mounting points are provided.
-
Expanded Medical Gas System: Preparation for additional oxygen outlet points and optional medical air system.
-
Electrical Load Capacity: The vehicle’s dual electrical system (see below) is sized to support the continuous and peak loads of ALS equipment, including portable ventilators if required.
Electrical & Power System
A robust and redundant electrical system is critical for medical operation.
-
Dual Battery System: The vehicle features an isolated dual-battery system. A primary battery starts the vehicle engine. A secondary, deep-cycle battery bank powers all medical equipment and interior systems, preventing depletion of the starting battery.
-
Inverter: A pure sine wave inverter provides stable AC power from the secondary battery bank for sensitive medical equipment.
-
External Power Inlet: A standard external 220V AC power inlet is fitted, allowing the medical systems to be powered from grid or generator power when the vehicle is stationary, conserving vehicle battery life.
-
Lighting: The patient compartment features energy-efficient LED medical examination lighting, general interior lighting, and low-intensity night lights. Exterior work lights are fitted for nighttime operations at unlit sites.
Typical African Operating Scenarios
This vehicle is specified for the following operational profiles:
-
Rural & Remote Patient Transfer: Transport from dispersed communities to primary or secondary healthcare facilities over long distances on mixed-quality roads.
-
Inter-Facility Transport: Scheduled or emergency transfers between hospitals, often involving highways and urban traffic.
-
NGO & Humanitarian Field Operations: Deployment as a mobile medical unit for project sites, vaccination campaigns, or emergency response in regions like DR Congo or the Sahel.
-
Industrial Medical Standby: Provision of emergency medical services at mining, oil & gas, or large-scale agricultural operations in Zambia, Nigeria, or Mozambique.
-
Government EMS Integration: Use as part of a national or regional fleet for the Ministry of Health, providing a standardized, serviceable platform for public EMS.
Export Configuration & Compliance
Vehicles are supplied ready for deployment and registration.
-
Build Standard: Each ambulance is built to order as a complete, turn-key unit, tested and inspected prior to shipment.
-
Documentation: Comprehensive documentation packs are supplied, including certificates of conformity, medical equipment lists, and detailed technical manuals.
-
Homologation Support: The vehicle is constructed to specifications that facilitate registration and type approval processes common in African markets. We provide necessary supporting documentation for these procedures.
-
Shipping Terms: Vehicles are available for shipment on standard FOB or CIF Incoterms to major African ports, including but not limited to Mombasa, Dar es Salaam, Durban, Lagos, and Tema.
Toyota Hiace 4×4 Ambulance – FAQ (Technical Focus)
1. Is the Toyota Hiace 4×4 suitable for off-road ambulance use in Africa?
Yes. The selectable 4WD system, diesel powertrain, and robust ladder-frame chassis of the Hiace 4×4 provide a mechanically suitable base. The subsequent ambulance conversion includes necessary reinforcements and systems engineering to create a fit-for-purpose off-road medical transport vehicle.
2. What type of roads and terrain can this ambulance operate on?
It is engineered for reliable operation on paved highways, severely degraded paved roads, and sustained travel on unpaved surfaces including gravel, hard-packed earth, sandy tracks, and muddy conditions. It is not designed as an extreme off-road vehicle for rock crawling or deep water fording.
3. Is the vehicle designed for high-temperature environments?
Yes. Core design considerations include engine and transmission cooling capacity for sustained operation in ambient temperatures exceeding 40°C, thermal insulation of the patient compartment, and the use of materials resistant to UV degradation.
4. Can the ambulance be configured for both BLS and ALS use?
The standard build is a complete BLS ambulance. The platform is pre-prepared for ALS upgrades, with the necessary electrical capacity, mounting points, and medical gas infrastructure. ALS medical devices are typically procured separately by the end-user to meet specific clinical protocols.
5. How is maintenance and spare part availability in Africa?
The Toyota Hiace platform benefits from the most extensive parts distribution and technical service network across the continent. Mechanical components for the base vehicle are widely available in Kenya, Uganda, Nigeria, South Africa, and most major markets, minimizing operational downtime.
6. What factors affect the final technical specification and price?
Key variables are: the level of medical equipment (BLS vs. ALS devices), the choice of optional equipment (e.g., roof air conditioning, additional exterior lighting, communication systems), the specific destination country’s import regulations, and the chosen shipping terms (FOB vs. CIF).
For a formal quotation, detailed technical specifications sheet, or to discuss a tender requirement, please contact our technical sales department with your specific operational parameters and intended region of deployment.
