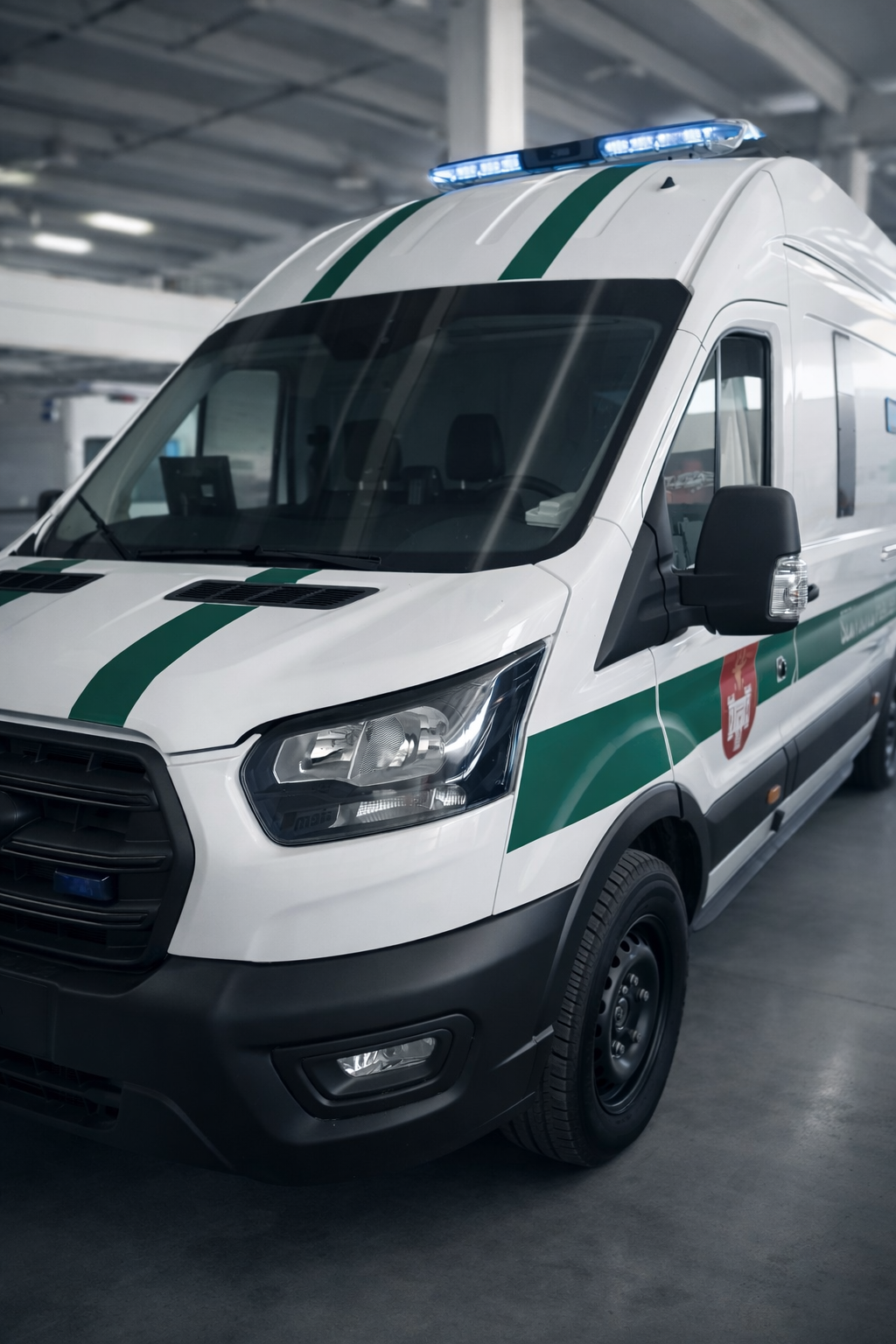

Prisoner Transport Vehicle: High-Security Detainee Mobility

The secure and humane transportation of detainees is a critical function of modern justice and law enforcement systems, requiring specialized equipment that prioritizes security, officer safety, and regulatory compliance. Infinity Chassis Units, a leading engineering and manufacturing specialist, addresses this complex operational need with our purpose-built Detainee Transport Vehicle (Prisoner Transport Vehicle). Engineered from the ground up on robust commercial chassis, this secure prisoner transport van is a dedicated penitentiary vehicle designed to meet the stringent demands of daily prisoner transfers, high-security escorts, and inter-facility logistics.

Vehicle Platform & Powertrain specifications

Our custody transport van is constructed on a reliable, heavy-duty rear dual-wheel (4x2) van platform.

• Engine: Turbocharged diesel engine (displacement ≥ 2.7L, delivering ≥170 HP) ensuring reliable performance under full load.
• Emission Standard: Fully compliant with Euro 5/6 regulations.
• Transmission: Fully automatic transmission for smooth operation and reduced driver fatigue.
• Chassis Reinforcement: Structural enhancements to support security fittings and withstand constant operational use.

Interior Security Configuration

The layout is designed to maximize safety by physically separating detainees from escort personnel.

• Detainee Capacity: Configurable for the secure transport of up to 14 detainees.
• Cell Structure: Four (4) independently locking security cells to prevent collusion and manage risk by category.
• Interior Construction: Reinforced, laminated plywood overlaid with 3mm thick aluminum checker plate for vandal resistance and easy cleaning.
• Seating: Fixed, bench-style seating fabricated from reinforced, seamless polycarbonate material.
• Escort Cabin: Separated secure cabin accommodating up to 4 escort officers, featuring centralized access control for all detainee doors.

Security Systems & Surveillance

Integrated electronic and mechanical security systems create a comprehensive containment solution.

• Physical Access Control: High-security, pick-resistant locks combined with an electronic central locking system controlled from the escort cabin.
• Glazing: Heavy-duty, impact-resistant polycarbonate windows in the detainee area, with optional ballistic glass for the driver's cabin.
• IP Video Surveillance: Comprehensive camera coverage of each cell, central aisle, exterior perimeter, and driver's cabin, recording to a high-definition DVR with 15+ days of storage.
• Communication: Secure, hands-free intercom system between escort personnel and specific cells.

Environmental Control & Compliance

Engineered to ensure duty of care and operational functionality in all climates.

• HVAC Systems: Independent forced-air ventilation and a diesel-fired air heater provide adequate fresh air and reliable warmth for all compartments.
• Emergency Features: Integrated roof-mounted LED warning light bar, electronic siren, emergency exits, fire extinguishers, and first-aid kits.
• Compliance: Manufactured under ISO 9001:2015, supporting EU (ECE) vehicle safety regulations and global penitentiary standards.

Contact Infinity Chassis Units today to request a complete technical specification package and discuss customization options for your upcoming government tender.
