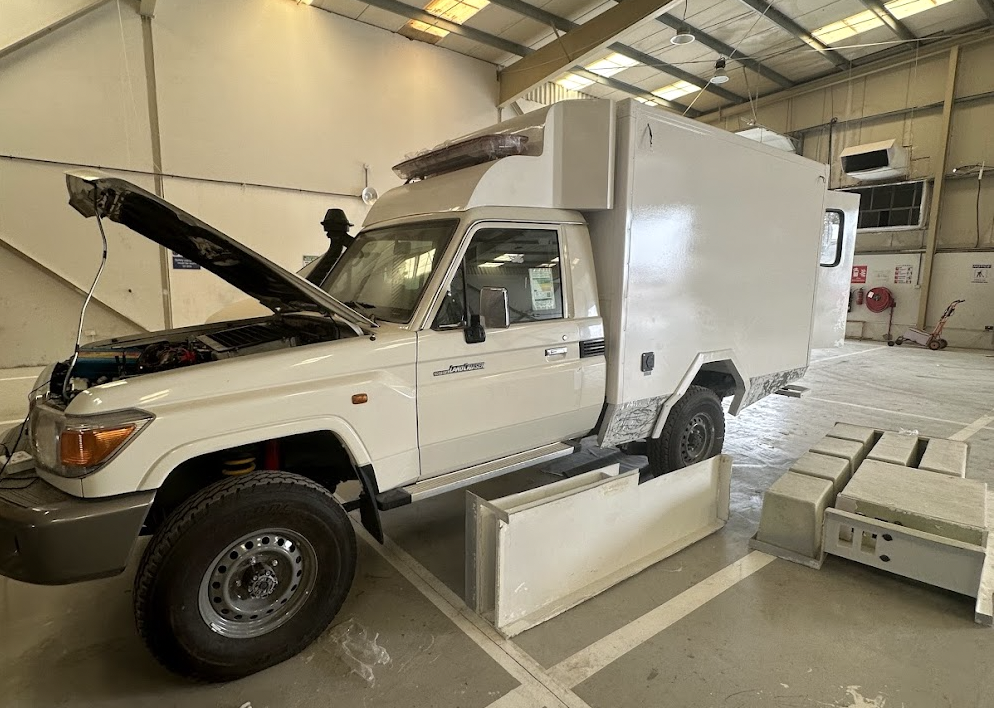

Toyota Land Cruiser 4×4 Box-Type Ambulance: Extreme Terrain EMS

The Toyota Land Cruiser 4×4 Box-Type Ambulance is a high-performance medical transport vehicle engineered specifically for extreme environments. Built on the legendary Toyota Land Cruiser 70/78 Series, this heavy-duty ambulance is the ultimate solution for rural, desert, mountain, and post-conflict regions where standard ambulances cannot operate reliably. Available in both standard and armored configurations (B6/B7), and featuring highly customizable modular medical cabin layouts for BLS, ALS, and light-ICU applications, the Land Cruiser ambulance is the vehicle of choice for health ministries, humanitarian organizations, and military medical corps worldwide.

Purpose-Built Off-Road Chassis

At the heart of this vehicle is the Toyota Land Cruiser LC78 or LC70 chassis, globally respected for its unmatched off-road performance, durability, and mechanical simplicity.

• Drivetrain superiority: Features full-time 4x4 capability with locking differentials, ensuring traction in the most challenging conditions.
• Engine Options: Powered by the proven 4.2L 1HZ Inline-6 Diesel or the immensely powerful 4.5L V8 Turbo Diesel (1VD-FTV) in newer LC78 models.
• Rugged Suspension: Heavy-duty front coil and rear leaf suspension system paired with 235–270 mm of ground clearance to navigate deep ruts and rocky terrain.
• Operational Range: Equipped with dual fuel tanks (130–180 liters capacity) and optional snorkels/winches for deep water crossings and self-recovery.

Box-Type Medical Cabin Configuration

The custom medical box is securely mounted onto the chassis via reinforced subframe rails, isolating the cabin from terrain stress and maximizing structural integrity.

• Construction: Built with a welded aluminum or galvanized steel frame, featuring double-wall sandwich panels for superior thermal insulation.
• Spacious Ergonomics: Offers up to 1850 mm of interior standing height, providing significantly more working room and storage than standard van conversions.
• Accessibility & Lighting: Features side sliding or swing doors, 270° opening rear double doors, and comprehensive LED perimeter and scene flood lamps.
• Medical Layouts: Fully customizable for Basic Life Support (BLS), Advanced Life Support (ALS) with inverter systems (1500–2000W) and lockable medication storage, or Light ICU configurations with ventilator support and optional air-suspension.

Armored Options & Global Deployment

For conflict-prone or high-risk areas, the Land Cruiser Box-Type is available with certified ballistic protection, frequently referred to as Land Cruiser Blindé or Blindado.

• Ballistic Protection: Available in B6 Armor (protection against assault rifles like the AK-47) or B7 Armor (protection against armor-piercing rounds).
• Security Features: Armored units feature multi-layered ballistic glass, armored floor/underbody protection, run-flat tires, and reinforced suspension and brakes to handle the increased weight.
• Export Support: Successfully delivered to over 50 countries across Sub-Saharan Africa, MENA, South/Central Asia, and Latin America.
• Compliance: Delivered mission-ready with WHO, MSF, ICRC, and UNOPS compliant configurations, alongside full export documentation (CIF/DDP/FOB), multilingual manuals, and spare parts packages.

Contact the Infinity Chassis Units export team to request a customized 2D/3D layout design and formal quotation for the Toyota Land Cruiser Box-Type Ambulance.
