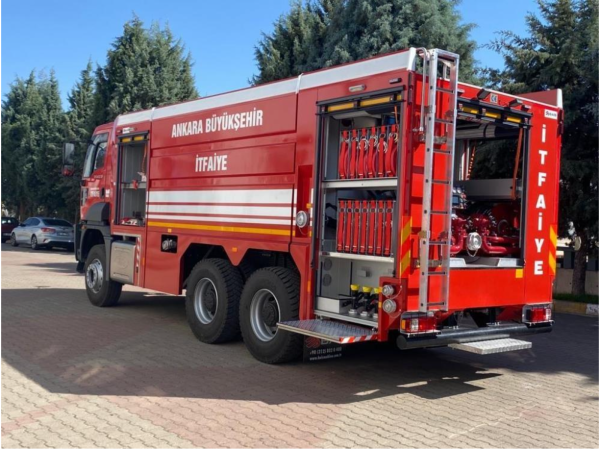

1.CHASSIS

WB: 4200 mm

6×4 EURO 3

LEFT HAND DRIVE

(Subframe)

·       The mounting will be done by suitable apparatus (Flexible and Rigid connections) and there will be no welding between the main chassis and subframe.

·       The subframe will be manufactured from at least 6 mm St.52 Carbon Steel

3. BODYWORK

(Superstructure)

·       Vehicle Bodywork will be manufactured by high-quality carbon steel material and assembled to a subframe.

·       The Superstructure walls of lockers and floor of the lockers will be special light alloy aluminum material (Aluminum Extrusion Profiles )

·       The Superstructure Aluminum Profiles will be 550 mm width.

·       There will be no welding for superstructure.

·       Main Connection Materials will be rust-proof.

·       The floor of the all compartments shall be provided with drain holes to allow complete water drainage.

·       A climbing ladder will be provided at the rear side of the Vehicle. Ladder will be aluminum and it will be telescopic type.

·       Equipment Lockers will have Aluminum Roller Shutters which can be locked with full width locking bar and rugged handles.

·       There will be enough roller shutters at the side and the rear side of the vehicle. The Roller Shutters will be water & dust proof.

·       Foldable steps with a load capacity of min. 200 kg, will be fitted around the bodywork to allow easy reach to the compartments and equipments.

·       Roof Deck shall be covered by anti skid aluminum chequered plates and aluminum hand rails fitted as a safety barriers on both sides and at full length of the deck

·       Equipment Lockers will be illuminated, and the lights will be opened&closed when the roller shutters are opened&closed. When the Lockers lights are open, the driver will be warned in the cabin.

·       All the Electrical Cables will be layed through the cable channels on the Aluminum Profiles. So, Electrical Cables will not be visible.

·       Brackets and Sliding Drawers will be provided with the vehicle

4. PUMP AREA

5. WATER TANK

·       Connection to the subframe Via flexible and rigid brackets

·       Material: Made of GRP Material

·       Vent: Yes

·       Recirculation line: Yes

·       Maintenance hole: Yes, minimum Ø500mm

·       Filling connections: 2 x Ø75mm with mesh + opening on the top side for refilling via “pipe”.

·       Discharge connections: Ø 110mm

·       Baffles to prevent ripples and splashing of water

·       Strengthening of the equipment warehouse according to the technical needs of the equipment

·       Water capacity control with electric water level indicator with minimum alarm.

·       Allowed filling pressure Minimum 3 bar

·       Overflow pipe

6.FOAM TANK

·       Material: Made of GRP Material

·       Vent: Yes

·       4-inch filling valve on top

·       2” spherical valve for cleaning and draining.

·       A digital Foam Level Indicator will be available on the Control Panel

7.CENTRIFUGAL FIRE PUMP

·       MALECO NIAGARA C30.10

·       Normal & High Pressure Double stage

·       Fire Fighting Centrifugal Pump

·       Rated capasity : 3000 lpm @10 bar

·       250 LPM @40bar

·       Case made of Aluminium with anti-corrosion treatment

·       Medium pressure stage impeller made of Aluminium

·       Impeller’s wear rings replaceable

·       DUPLEX Stainless Steel shaft supported by ball -bearings

·       Self-balanced mechanical seal, maintenance free

·       Delivery manifold made of Aluminium with No. 4

·       Thermal Relief valve

·       Overpressure Security Valve on HP stage

·       Recirculation Valve for medium pressure operation

·       High pressure hose reel connection

·       Fully compliant to EN 1028-1 and EN 1028-2

8.HOSE REEL

·       CELIKSAN Brand

·       Hose Reel: 1 pieces for quick extinguishing with water/foam – one side of the vehicle, two-reel VP (high pressure) length 40m, hose Ø 19mm with gun nozzle, (type “C”).

·       Electric winding and electric winch brake

·       Nozzle: Capacity 200 lit/min with foam attachment

9.WATER & FOAM MONITOR

·       MALECO P180 FOAM PROPORTION

·       Manual “around the pump” foam mixer with Venturimetric type suction to suck automatically

·       Measuring valve with mixing rate 0 – 3% – 6%

·       Aluminium construction.

·       The foam proportioning is done with low pressure loss.

·       Freely selectable foam mixing rates

·       One foam tank suction line

·       One external suction line

10.CONTROL PANEL

·       Water & Corrosion Proof Body and Connector System

·       Long life & rear lightining keyboard

·       Functional keyboard

·       7 inch LCD touchscreen display

·       Pressure, Vacuum, Pump RPM, Water & Foam Tank Level gauges

·       Full Automatic Vacuum ( Primer ) Control System

·       Digital Pressure Fixing System

·       Pump Operation Gauge

·       Pump Engagement & disengagement

·       Located At the rear of the truck

·       Emergency Stop Button

11.ELECTRICAL INSTALLATION

·       Traffic installation as per national regulation, 24 V.

·       1 x searchlights, 24 V, 100 W fitted on the roof the superstructure.

·       1 LED Light Bar (red/red) on top of the cabin roof.

·       1 electronic “wail-yelp” siren with control panel, incorporated Public Address System and 100 W loudspeaker built inside the Light bar.

·       Warning flashing lights (red / blue) installed on the sides and rear of the fire truck superstructure.

·       Reverse warning buzzer

13.ACCESSORIES

·       4 units Rubber Suction Hose with 4” BSRT coupling and 1.6 meters Length with Light alloy coupling as per BSS 336 standard

·       4 units delivery hoses :Rubber Lined, very sturdy and durable hose, Resistant to Chemical, abrasion, kinking and contact heat. Working Pressure 14 Bars. Size 2-1/2” Length 25 meters Maintenance Free Color Red Fitted with 2.5” BS 336 Instantaneous Aluminum coupling

·       6 units Delivery hoses : Rubber Lined, very sturdy and durable hose, Resistant to Chemical, abrasion, kinking and contact heat. Working Pressure 14 Bars. Size 1-1/2” Length 25 meters Maintenance Free Color Red Fitted with 2.5” BS 336 Instantaneous Aluminum coupling

·       2 units Hard Anodized Aluminum Selectable Gallonage Handline Nozzle (30- 60-95-125 GPM @ 7 bar) with 1.5″ BIC Adapter.

·       2 units Hard Anodized Aluminum Selectable Gallonage Handline Nozzle (95- 125-150-200-250 GPM @ 7 bar) with 2.5″ BIC Adapter

·       1 unit Foam branch pipe 200 LPM (without pick up tube) with BSS coupling in aluminum alloy construction and valve. Capacity: 200 LPM

·       1 unit Inline Foam inductor with pickup tube. Flow capacity: 200 LPM, aluminium construction with BSS coupling.

·       1 unit Dividing breeching with valve, light alloy construction. BS 2.5” male – 2 x

2.5” female

·       1 unit Dividing breeching with valve, light alloy construction. BS 2.5” male – 2 x

2.5” female

·       1 unit Dividing breeching with valve, light alloy construction.

·       BS 2.5” male – 3 x 2.5” female

·       3 units Reducer from 2.5” BSS to 1.5” BSS connection

·       4 units complete fire fighting kits (Outer Layer: More than 50% para-aramid inside, providing high tear strength, tensile strength and fire resistance. Furthermore, it contains FFR fiber. Moisture Barrier: Aramid non-woven fabric + PTFE. Thermal Barrier: KANOX® F70SL quilt.

·       Inner Lining: Aramid + Flame Resistant viscose plain weave fabric )

·       4 units Fire fighting helmets ( Impact and Shock Resistant helmet for Technical Fire Fighting certified as per EN 443:2008. Color: Red or Yellow.High temperature heat resistant, Anti impact, Anti abrasion, Shock abrasion, Fire proof, Comfortable and convenient to wear.

·       2 units Self Contained Breathing Apparatus (full face mask and threaded connection to EN 148/3 Pressure reducer Pressure gauge Demand valve with a fix connection to pressure reducer by means of a MP hose, i.e. without quick couplings on the MP hose Warning signal on the back. Padded shoulders, 6 L x 300 bars steel cylinder (delivered in empty conditions due to dangerous goods transport restrictions)

·       2 units Fire Fighting Gloves Made of cowhide outershell, reinforced palm, heat and flame resistant lining. Two ply Kevlar wristlet. Certified as per NFPA 1971:2018

·       2 units LED Rechargeable Handheld Search light with Charger and battery.

·       1 unit Rope for Suction hose 8 mm dia x 15 Mtrs length

·       4 units Foldable stretcher for injured person Frame made of light metal square profile Lockable cross joints (belt)

·       1 kit Medical First Aid Box

·       1 unit Multi-purpose rescue tool box

·       1 unit Fire axe with insulated handle, 20000V

·       1 unit Digging axe

·       1 unit Wood cutting axe

·       1 unit Apade-shovel

·       4 units Reflective signal traffic cone

·       1 unit Electric extension power cord on 15mtrs lenght wound on a cable drum

·       2 units DCP Portable Fire Extinguisher, Stored Pressure type capasity – 12 kgs

·       1 unit Light Alloy, 2 section Extension Ladder (mounted on a roof), extended lenght: apprx. 8 meters
