Land Cruiser Ambulance 78-Series 2.8TD AUTO Advanced Life Support (ALS)
Land Cruiser Ambulance 78-Series 2.8TD AUTO Advanced Life Support (ALS)
Land Cruiser Ambulance 78-Series 2.8TD AUTO Advanced Life Support (ALS) Ambulance is engineered for maximum reliability and performance in the most demanding conditions. Built upon Toyota’s legendary 70-Series chassis, this vehicle integrates a robust powertrain with a comprehensive medical module and advanced electrical systems to create a fully autonomous mobile critical care unit. Designed for endurance, off-road capability, and uninterrupted medical intervention, it is the prime choice for remote area support, inter-facility transfers, and urban emergency response.
1. Vehicle Platform & Technical Specifications

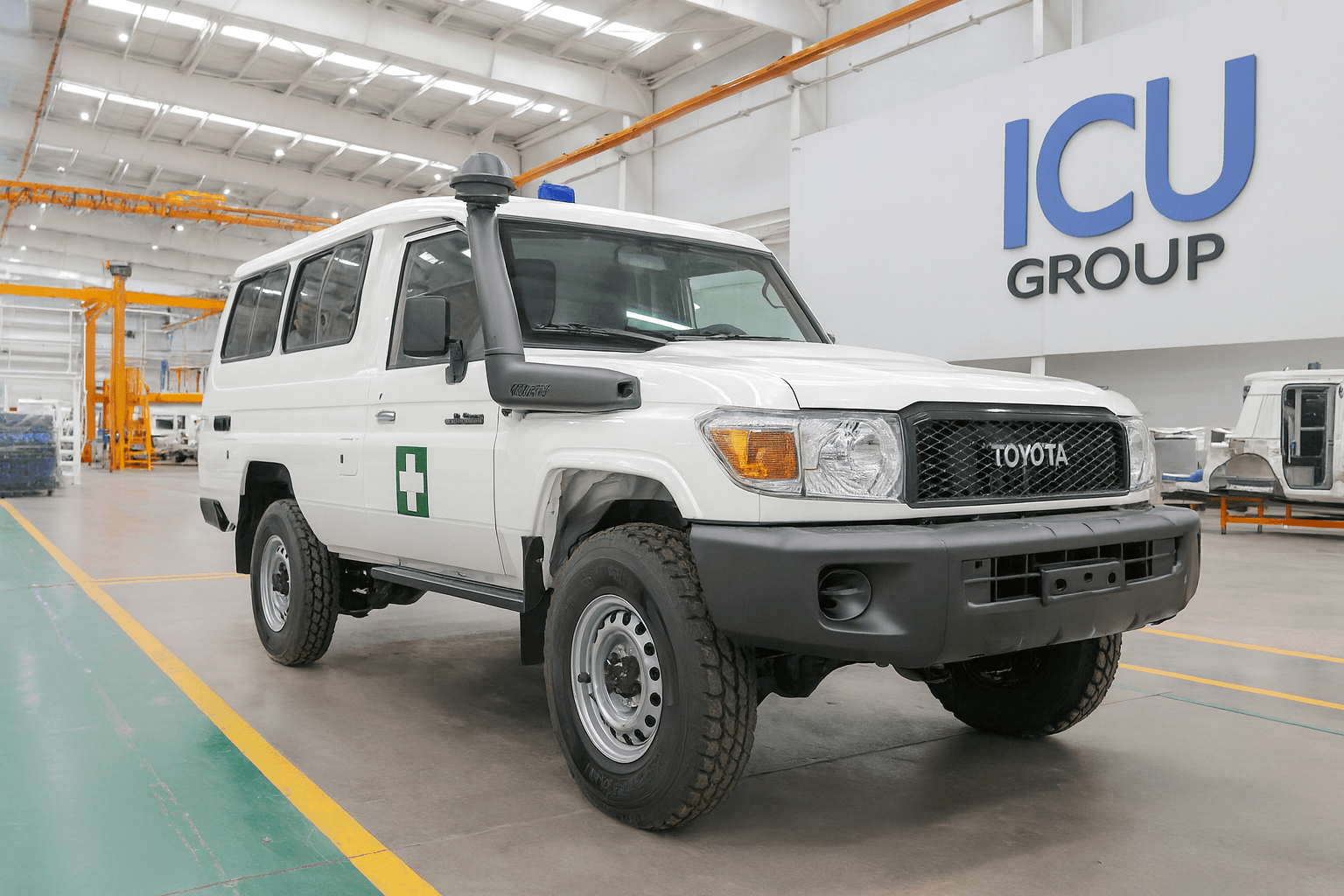

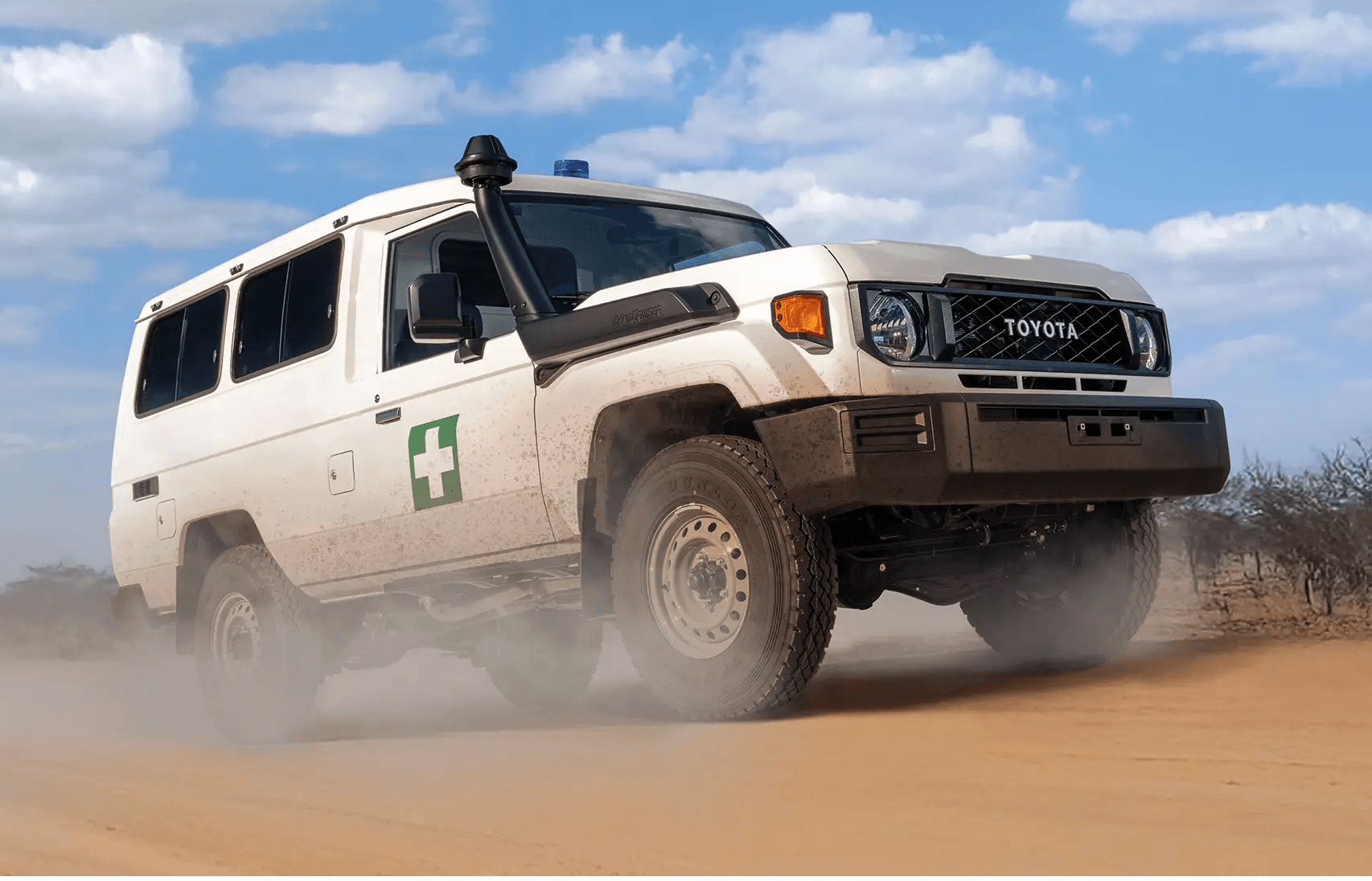

The foundation of this ambulance is the globally proven Toyota Land Cruiser 78-Series, specifically selected for its unparalleled durability and serviceability.
Table 1: Base Vehicle Technical Data
| Parameter | Specification |
|---|---|
| Model | Toyota Land Cruiser 78-Series |
| Engine | 2.8-Liter 1GD-FTV 4-Cylinder Turbo Diesel |
| Transmission | 6-Speed Automatic (AUTO) |
| Drivetrain | 4-Wheel Drive (4WD) with High/Low Range |
| Chassis | Reinforced Ladder Frame |
| Suspension (Front/Rear) | Heavy-Duty Coil Spring / Heavy-Duty Leaf Spring |
| Primary Application | Rugged Terrain, Remote Access, Long-Distance ALS Transport |
2. Medical Module & Cabin Specifications

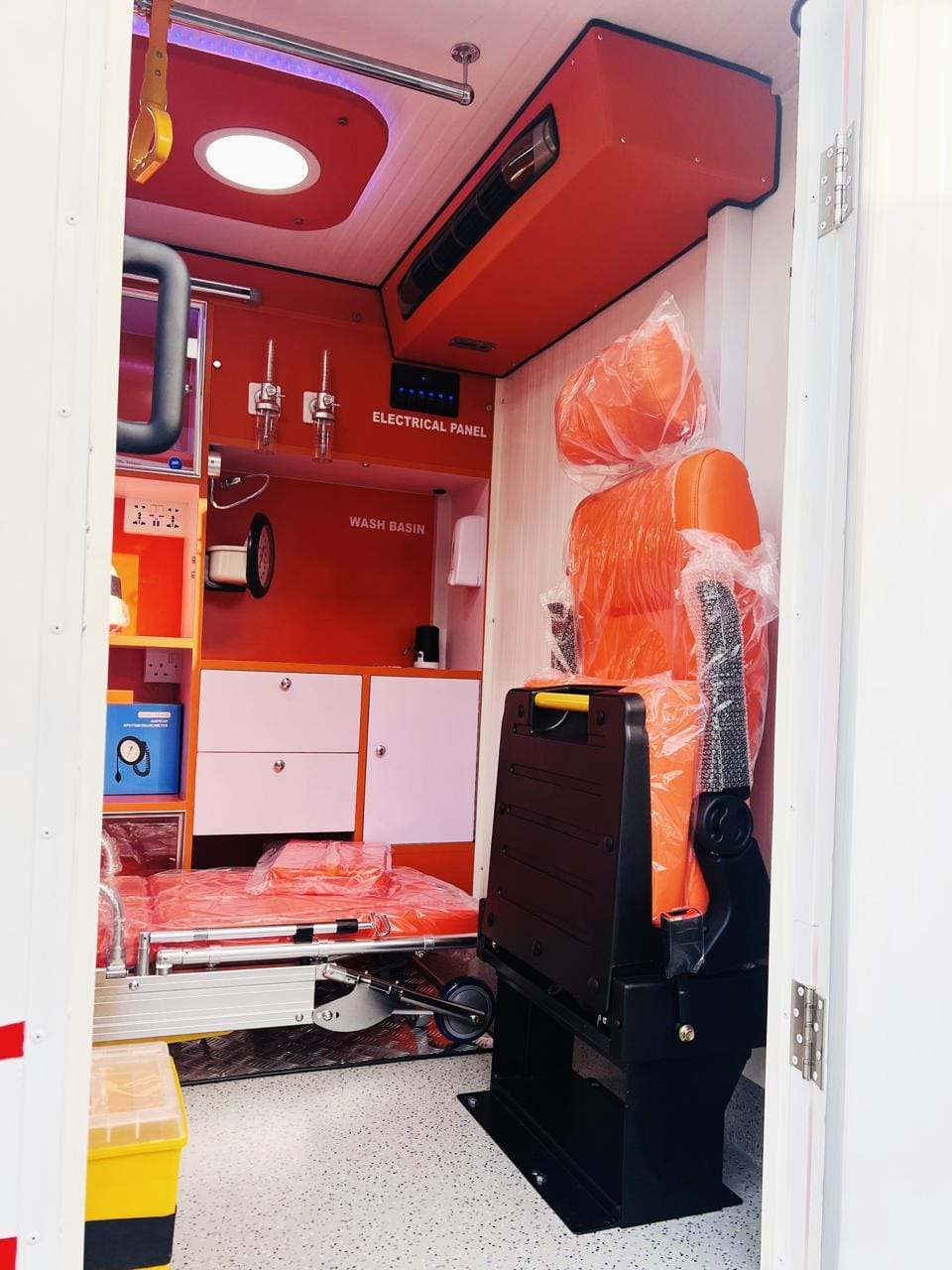

The patient cabin is a purpose-built environment focusing on hygiene, functionality, and safety for both the patient and the medical crew.
2.1. Structural Layout & Safety
Compartmentalization: Driver’s cabin is separated from the patient care area by a hygienic MDF panel.
Integration: The panel features two sliding windows for communication and transfer of supplies.
Crew Safety: Integrated 3-point safety belt for the paramedic’s seat within the medical cabin.
2.2. Environmental Control & Visibility
Dedicated AC Unit: Independent air-conditioning system for the patient compartment.
Lighting:
General sanitary cabin LED lighting.
Rear spotlight for patient loading/unloading.
Privacy: ¾ masking of rear and side windows with “3M” quality, sandblasted translucent film.
2.3. Storage & Ergonomics
Side Storage Cabinet: Custom-designed cabinet with multiple compartments and drawers.
Closure Mechanism: All drawers and cabinets feature secure, positive-latching locks.
Illumination: Integrated LED lighting within the storage cabinet.

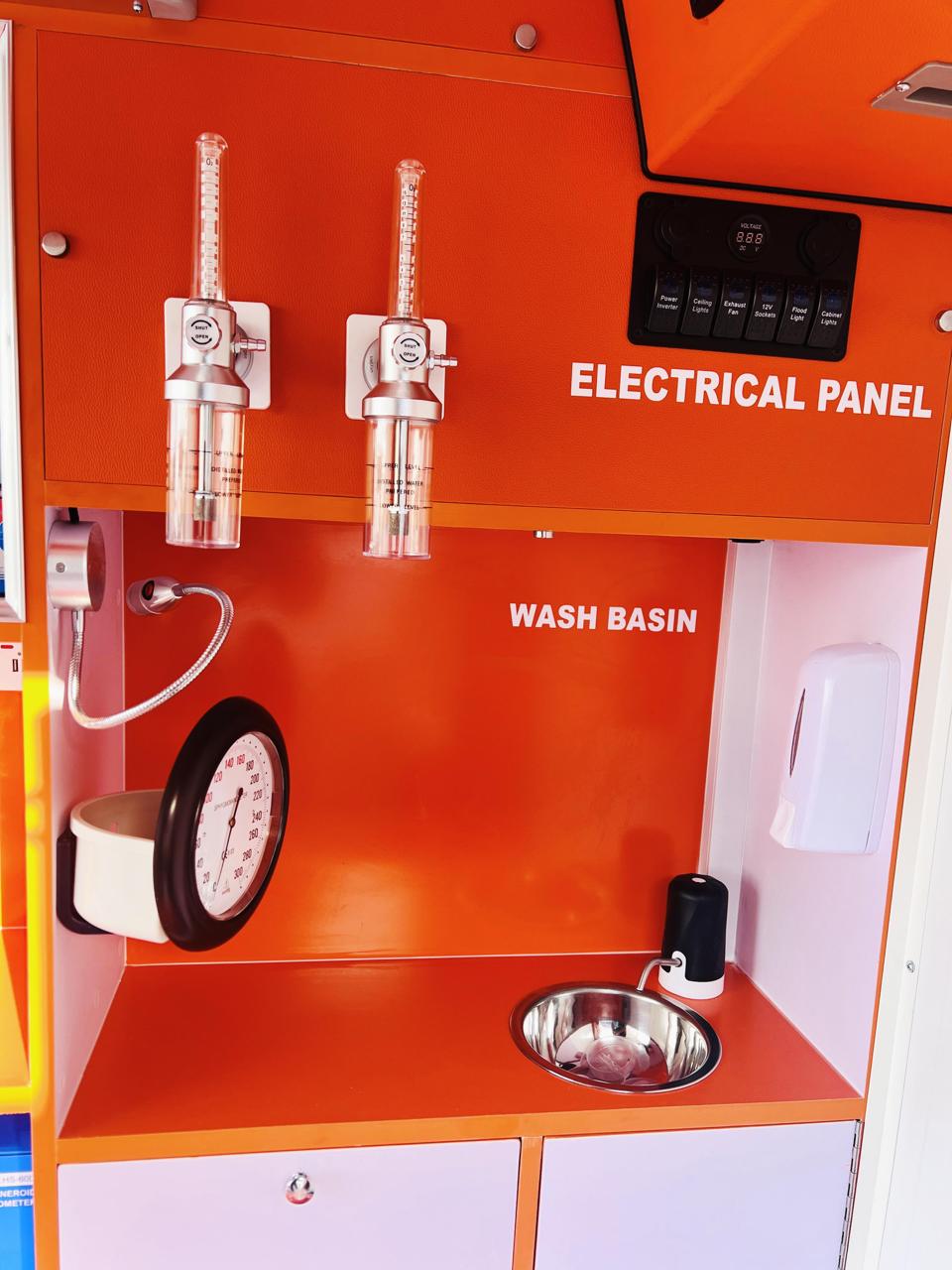

3. Electrical & Power Management System
A dual-power system ensures operational independence and reliability for all critical medical devices.
Table 2: Electrical System Specifications
| Component | Specification |
|---|---|
| Auxiliary Battery | 12V, Minimum 90Ah, Deep-Cycle AGM/Gel |
| Isolation System | Automatic Voltage-Sensitive Relay (VSR) |
| Internal Sockets | 2x 12V DC + 2x 220V AC (Cigar Lighter Type) |
| External Power Input | IP-65 Rated 220V “Male” Connector (Driver’s Side) |
| External Power Output | 2x “Female” Connectors on 20m Cable |
| Warning Systems | LED Roof Light Bar (Red/Blue), Rear Beacons, 150W Electronic Siren |
| Siren Functions | Multiple Tones, Horn, Public Address (PA) |
4. Integrated Medical Equipment Suite (ALS Standard Package)
The vehicle is supplied as a turn-key solution with a complete set of advanced medical devices.
4.1. Electric Suction Unit
Vacuum Performance: Adjustable, 0 to >550 mmHg.
Flow Rate: ≥ 30 Liters/Minute.
Power Supply: 220V AC / 12V DC.
Bottle System: 2x 1000ml sterilizable bottles with overflow protection.
Mounting: Ambulance wall mount with integrated 12V DC charger.
Accessories: 100 sets of suction tubing and cannulae, 10 spare hydrophobic filters.
4.2. Transport Patient Monitor A multi-parameter monitor for comprehensive patient assessment during transport.
Table 3: Patient Monitor Specifications
| Parameter | Specification |
|---|---|
| Display | 5″ Color TFT LCD Touchscreen |
| Parameters | ECG (12-Lead), SPO2, NIBP, Temperature, EtCO2 (Capnography) |
| SPO2 Range | 70-100% (Accuracy: ±3%) |
| NIBP Range | 10-250 mmHg (Accuracy: ±5%) |
| ECG | Arrhythmia Analysis, ST-Segment Analysis, Pacemaker Detection |
| Battery | Rechargeable, >3 hours of continuous operation |
| Data Storage | Graphical & Tabular Trends for >24 hours |
| Power Input | 220V AC / 12V DC |
4.3. Semi-Automatic External Defibrillator (SAED) with Pacemaker
Defibrillation: Biphasic waveform, energy levels 1-220J (Biphasic).
Pacing: Integrated external pacemaker.
CPR Feedback: Real-time metronome and instructions.
Display: 8″ TFT screen for ECG monitoring.
Protection Rating: IPX4, Resistant to medical disinfectants.
Accessories: Includes adult and pediatric electrodes.
4.4. Ambulance Stretcher
Frame Material: Aluminum Alloy.
Load Capacity: 250 kg.
Height Adjustment: Hydraulic/Pneumatic, range 25 cm – 80 cm.
Positions: Flat, Trendelenburg (up to 15°).
Wheels: 4x swivel casters with locks.
Features: 4x safety straps, adjustable side rails, IV pole mount.
5. Additional Essential Equipment
The vehicle is fully stocked with complementary medical and safety gear:
Oxygen System: Medical oxygen cylinder (10L water capacity, 200 bar) with regulator and ambulance mount.
Diagnostic: Manual aneroid sphygmomanometer with 4 cuffs.
Airway Management: Oxygen cannulas (2.1m tube).
Infection Control: Sharps container (1L), vomit bags (1.5L capacity).
Diagnostic Tools: Pupillary penlight, seat belt cutter.
Scene Safety: Warning triangle, high-intensity LED searchlight (≥5,000 lumens).
Crew Gear: High-visibility paramedic vest (EN ISO 20471 Class 2).
Pediatric Transport: Approved baby carrycot/securing system.
6. Compliance & Warranty
Markings: Custom markings are finalized and applied prior to delivery as per customer agreement.
Warranty: Comprehensive warranty of 2 years or 100,000 kilometers for the ambulance conversion and installed systems.
Contact our sales team for a detailed quotation and custom configuration options.
