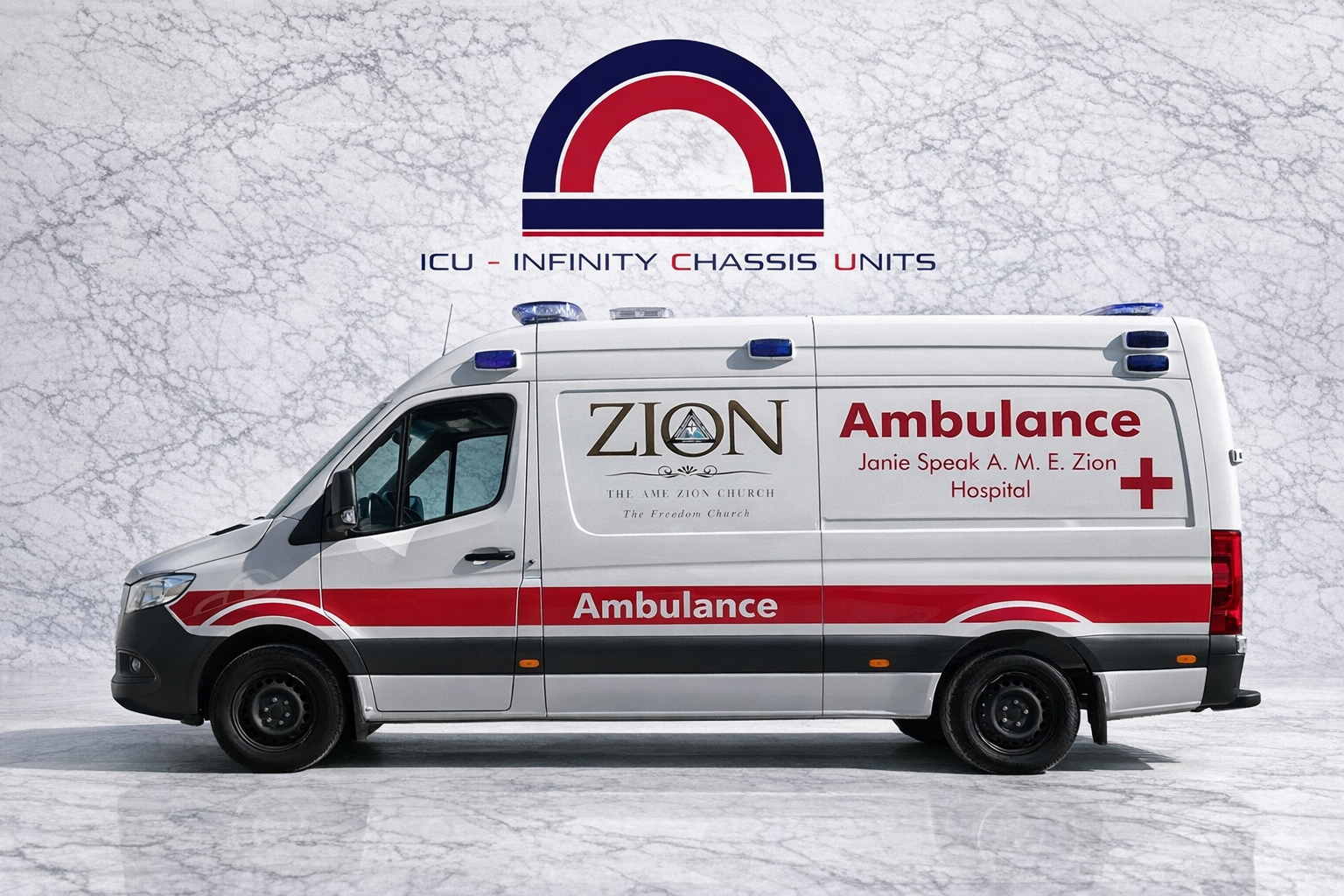

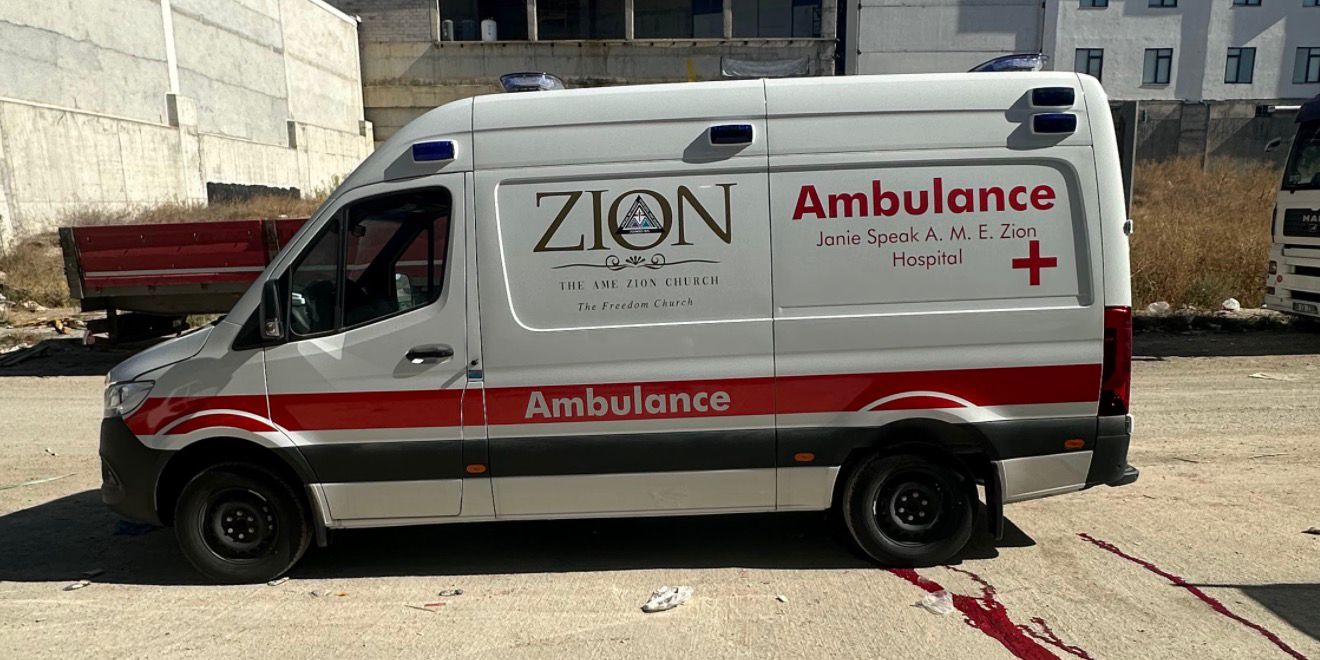

Mercedes-Benz Sprinter 417 / 317 ALS & ICU Ambulance (Model Year 2026)
Type C Advanced Life Support & Mobile Intensive Care Unit (ICU) Emergency Vehicle — Engineered to EN 1789, TSE, AMD & GSA Standards
🌟 Key Engineering & Operational Highlights
- Official Homologation & Chassis: 2026 Mercedes-Benz Sprinter (Type 906BB35 / OM654 Diesel Engine) N1 Category Emergency Ambulance Platform.
- Standard Certified Mass Architecture: 3,500 kg Gross Vehicle Weight (GVW) with 2,130 kg mass in running order.
- Hygienic Interior Engineering: Thermoformed ABS monolithic ceiling and sidewall paneling paired with high-durability Sika Industrial Epoxy anti-slip flooring.
- Integrated Medical Oxygen & Suction Grid: Dual 10L steel O2 cylinder vault with Koyuncu pressure regulators, flowmeters, and Medrag/ICU suction units.
- Advanced ICU Equipment Matrix: Equipped with Schiller Defigard 4000 Biphasic Defibrillator, Kozmovent Transport Ventilator, and Aveus Precision Infusion Systems.
⚙️ 1. Drivetrain, Chassis & Mechanical Performance
| Engineering Parameter | Technical Specification & Values |
|---|---|
| Base Chassis Platform | Mercedes-Benz Sprinter 417 / 317 (Model Year 2026, Type 906BB35) |
| Vehicle Category & Body Code | Category N1 / Type BB Van Emergency Ambulance |
| Engine Architecture & Code | Mercedes-Benz OM654 2.0L Turbo Diesel, 4-Cylinder Inline |
| Displacement & Max Output | 1,950 cc | 125.0 kW (170 HP) @ 3,800 RPM |
| Emission Standard & WLTP CO2 | Euro 6EA | Combined CO2: 238 g/km | Combined Fuel Consumption: 9.1 L/100km |
| Transmission & Gear Ratios | 6-Speed Manual (Ratios: 1st 5.076, 2nd 2.610, 3rd 1.518, 4th 1.000, 5th 0.791, 6th 0.675 / Final Axle 3.923) |
| Drivetrain Architecture | Rear-Wheel Drive (RWD) / Single Rear Axle (1/A2 Configuration) |
| Dimensions (L x W x H) | 5,932 mm (L) x 2,020 mm (W) x 2,620 mm (H) |
| Wheelbase & Cargo Length | Wheelbase: 3,665 mm | Cargo Area Length: 3,272 mm |
| Mass & Weight Ratings | Technically Permissible Max Mass (GVW): 3,500 kg | Mass in Running Order: 2,130–2,311 kg |
| Axle Load Limits & Tyres | Front Axle: 1,860 kg | Rear Axle: 2,250 kg | Tyres: 235/65 R16C 115/113R (6.5Jx16 ET54) |
| Active Electronics & Safety | AEBS, AIF, DDAW, EDR, ELKS, ESS, ISA, TPMS |

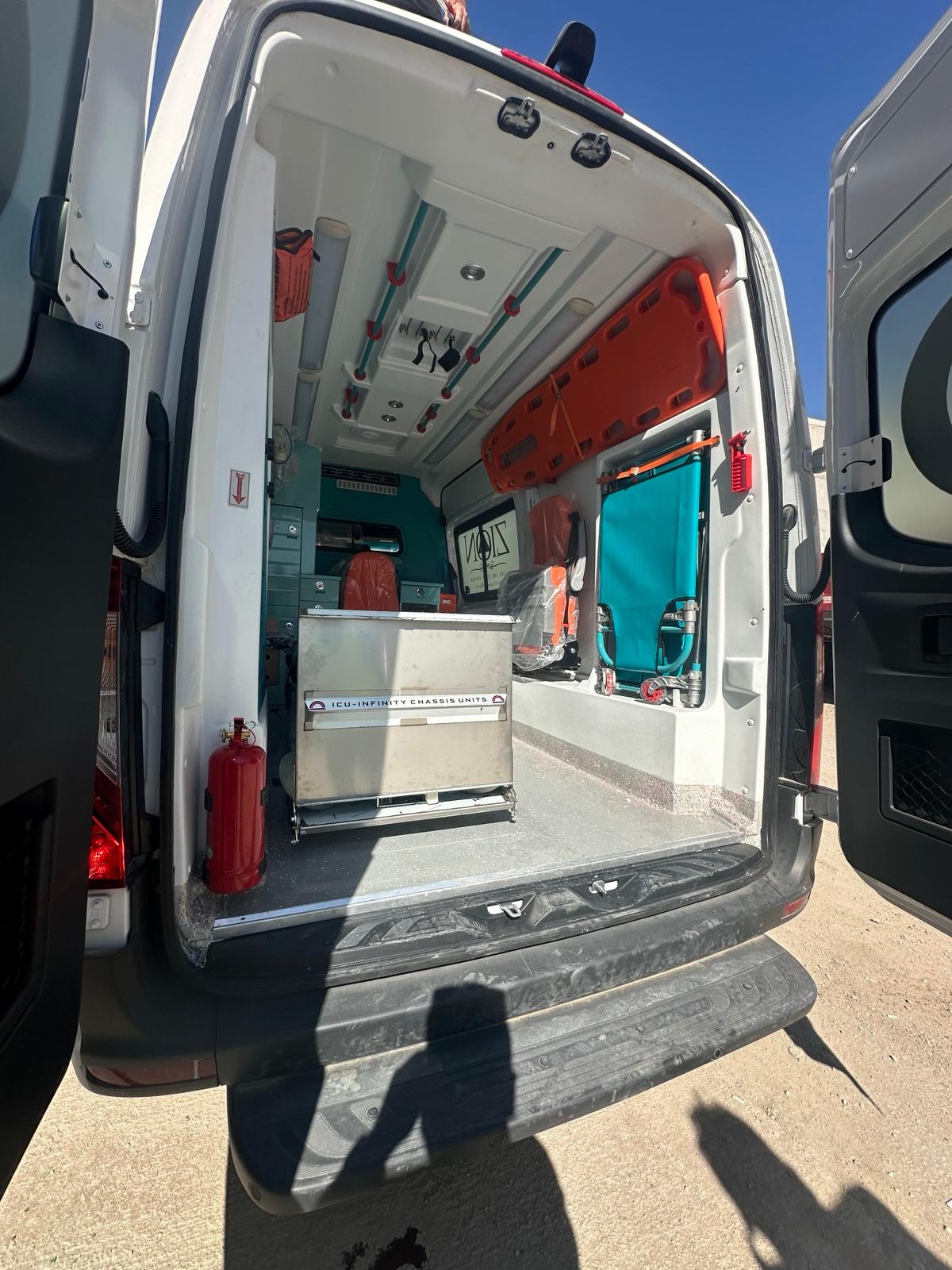

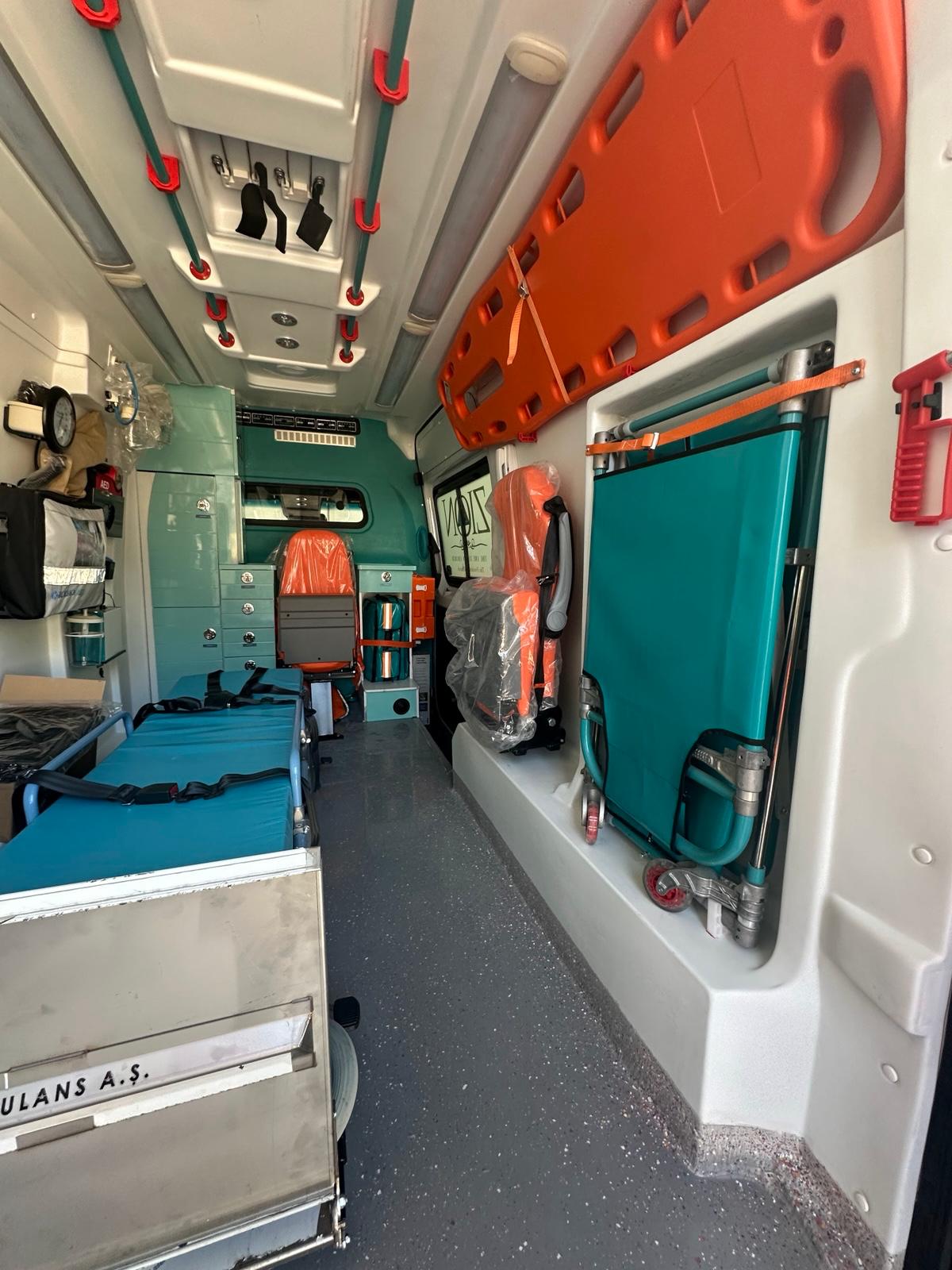

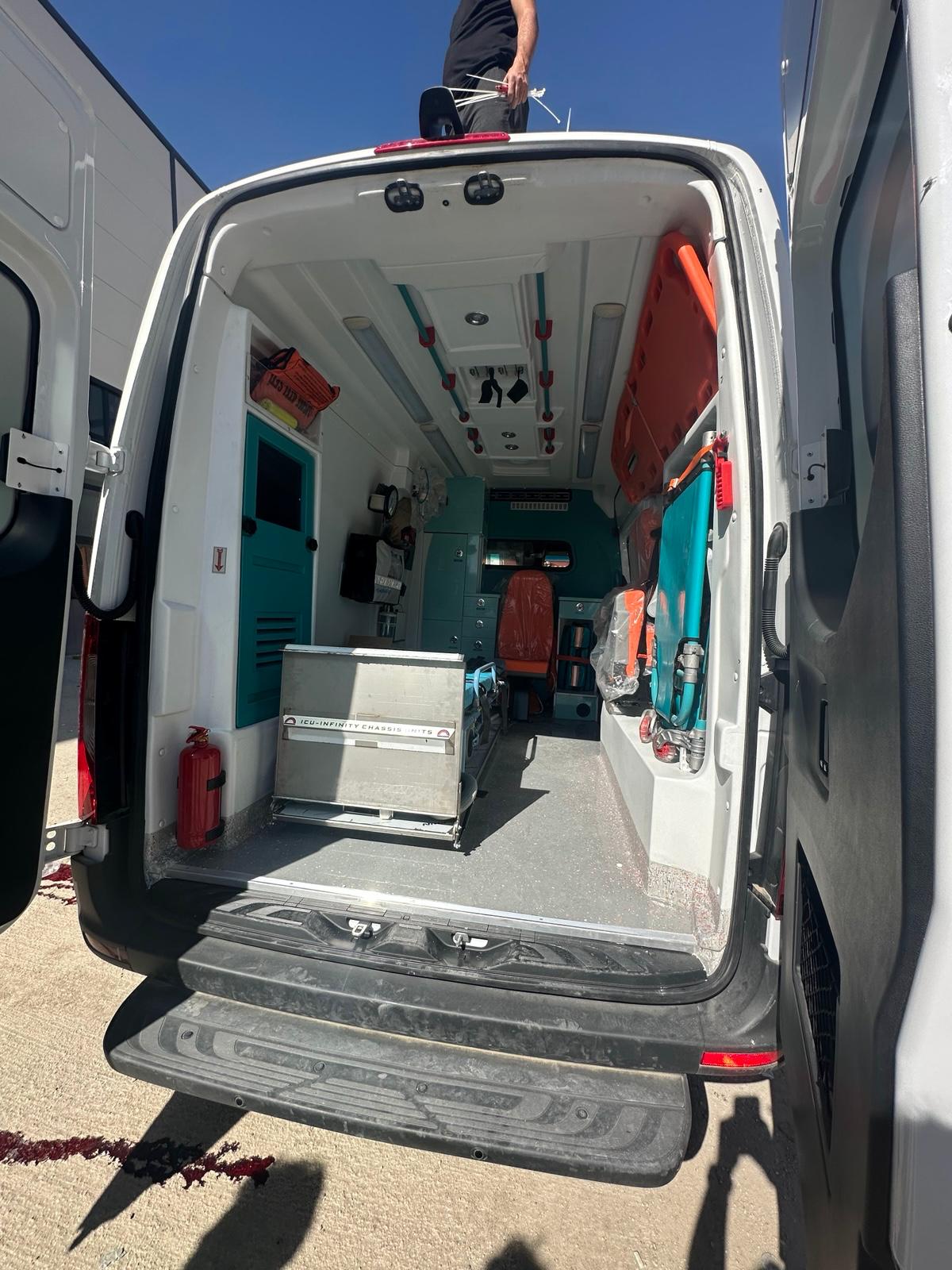

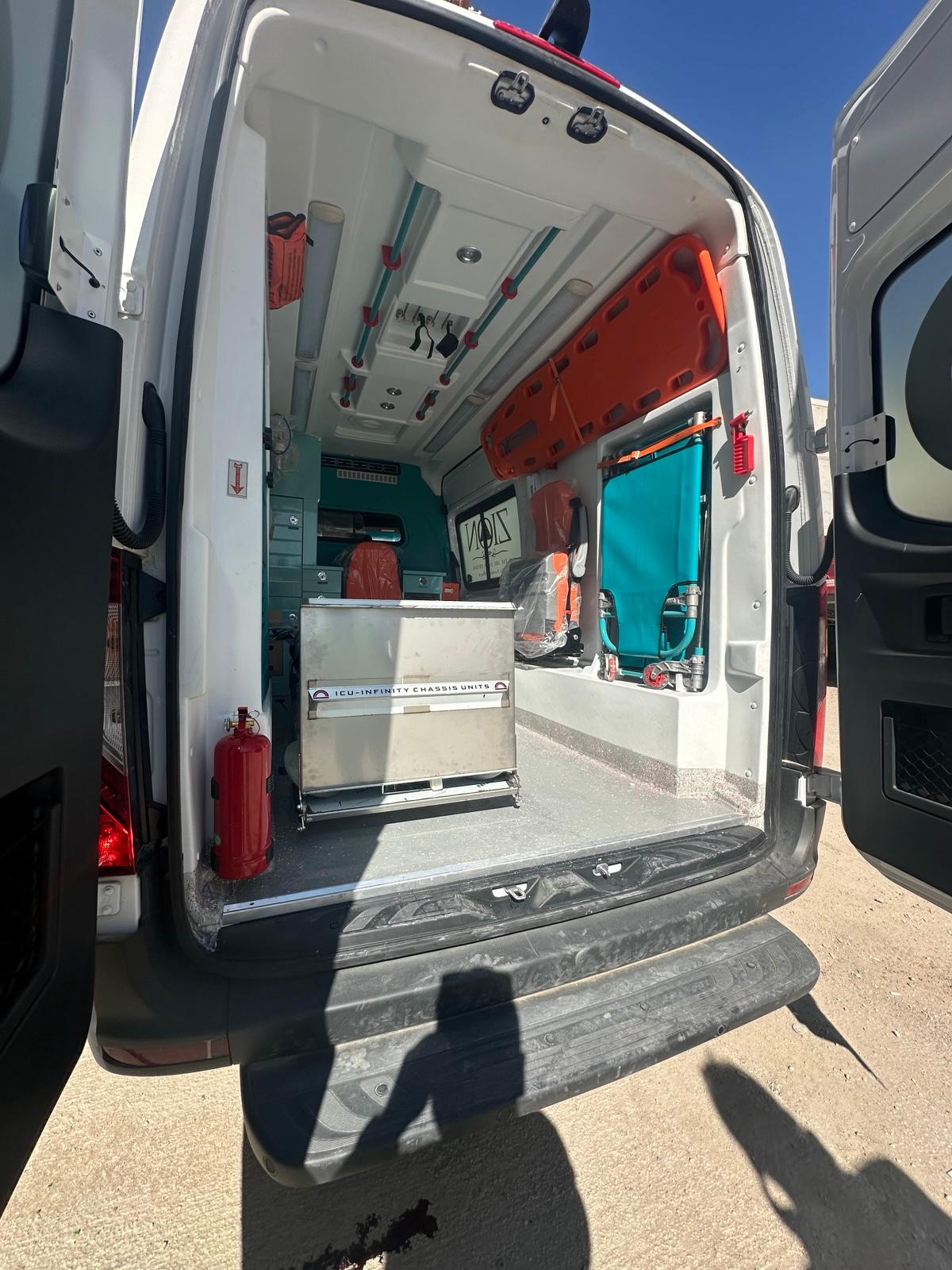

🚑 2. Patient Compartment Insulation, Cabinetry & Structural Architecture
| Structural Component | Material, Supplier & Engineering Detail |
|---|---|
| Thermal & Acoustic Insulation | High-density Elastomeric Rubber Foam insulation with integrated left/right side sheet metal structural reinforcements |
| Wall & Ceiling Cladding | Thermoformed ABS Ready-Made Ceiling & Side Panel Covering (Seamless, Washable, Anti-Bacterial) |
| Subfloor Construction & Finish | 16 mm Monolithic Base MDF + Sika Industrial Epoxy Anti-Slip Flooring Coating |
| Medical Cabinetry System | EUROPLAST Foamboard Cabinet System; includes wheelchair storage module, drawer units, locking mechanisms |
| Device Mounting Brackets | Integrated fixing apparatuses for Ventilator, Defibrillator, Portable Vacuum Aspirator, Spine Board & Chair Stretcher |
| Seating Configuration | 1x Partition Doctor Swivel Chair + 2x Functional Attendant Seats on the right side |
| Sanitary Amenities & Access | Integrated stainless steel handwashing basin + Aluminum Roller Wheelchair Ramp |
🔌 3. Electrical Systems, Climate Automation & Gas Piping
| System Sub-Unit | Technical Hardware Specification & Supplier |
|---|---|
| Wiring Standard & Cable Spec | Heat-resistant color-coded electrical cabling compliant with TSE (Turkish Standards Institution) standards |
| Power Inverter Grid | ICU 12V DC to 220V AC Pure Sine Inverter + ICU 220V/12V Redresor Charger + Yiğit 2nd Battery |
| External Shoreline Connection | Metece (Germany) 220V External Inlet + Siemens Leakage Current Circuit Breakers |
| Internal Power Outlets | 3x 220V AC Clamp Outlets (T-Plast) + 5x 12V DC Sockets (Üstün) |
| HVAC & Auxiliary Heating | SAFKAR ES75 Roof Air Conditioning (7.558W Cooling / 1200 m³/h Airflow) + Eberspächer D4L 4kW Diesel Heater |
| Emergency Signaling & Audio | ZER Front/Rear Lightbars, 6x Blue Side Flashing Warning LEDs, 4x Fluorescents, 2x Spotlights & Siren System |
| Comms & Control Module | ICU Master Digital Switch Control Panel + Yaesu Radio Antenna & Kumel Intercom Unit |
🩺 4. Advanced Life Support (ALS) & ICU Medical Equipment Grid
| Equipment Description | Brand & Origin | Technical / Load Specifications |
|---|---|---|

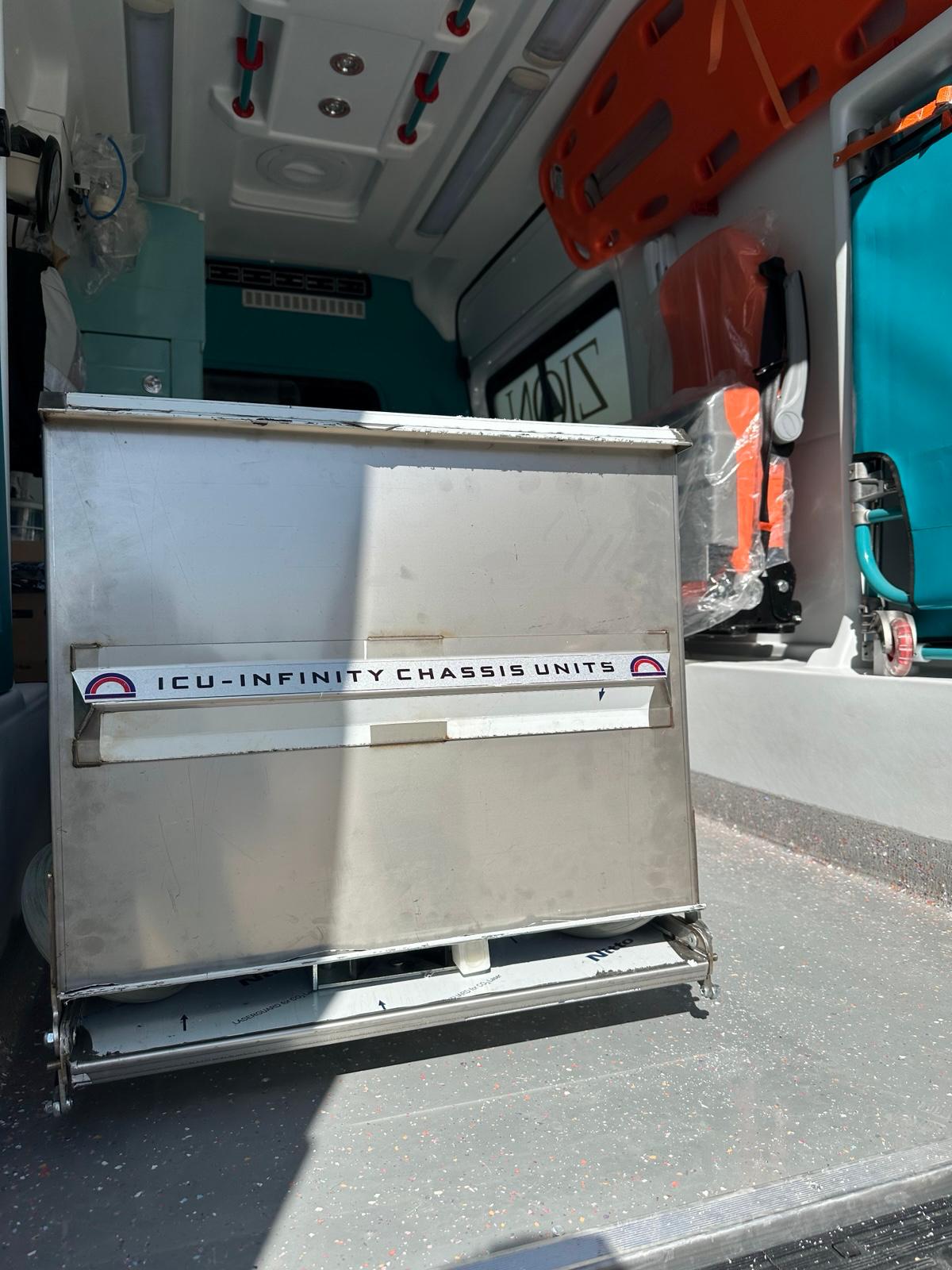

| Main Stretcher & Platform | ICU (Turkey) | 54 kg Main Stretcher (10G Dynamic Crash Tested) + 45 kg Base Lock Platform |
| Combination Chair Stretcher | ICU (Turkey) | 12.4 kg Foldable Chair / Patient Transfer Stretcher |
| Scoop & Vacuum Stretchers | ICU (Turkey) | 9.5 kg Aluminum Scoop Stretcher + Complete Vacuum Stretcher & Hand Pump Unit |
| Immobilization Hardware | ICU (Turkey) | 7.0 kg HDPE Spine Board, KED Extrication Vest, Traction Splint Set & Inflatable Splints |
| Defibrillator Monitor Unit | Schiller Defigard 4000 (Germany) | 12.0 kg Biphasic Defibrillator with Integrated ECG / SpO2 Patient Monitor |
| Transport Ventilator Unit | Kozmovent (Turkey) | 15.0 kg Emergency Transport Ventilator Machine |
| Suction & Aspirator System | MEDRAG (Turkey) | 6.5 kg Portable Vacuum Aspirator with Wall Mounting Charging Dock |
| Medical Oxygen Grid | Bursan / Koyuncu (Turkey) | 2x 10L Steel O2 Tanks (2x 13.65 kg), Dual Regulators, Flowmeters & Quick Sockets |
| Infusion & Diagnostics | AVEUS (Poland) / PlusMed / FORA | Precision Volumetric Infusion Pump, FORA G20 Glucometer & PlusMed Sphygmomanometer |
| Emergency Resuscitation & Trauma Kits | ICU (Turkey) | Complete Emergency Resuscitation Bag, Laryngoscope Set, 1L Portable O2 Unit & Burn Sets |
* Technical data compiled directly from official Mercedes-Benz EC Certificates of Conformity (CoC) and Infinity Chassis Units ambulance equipment engineering documents. Tailored layout options and medical hardware variations are available upon request.
“`
