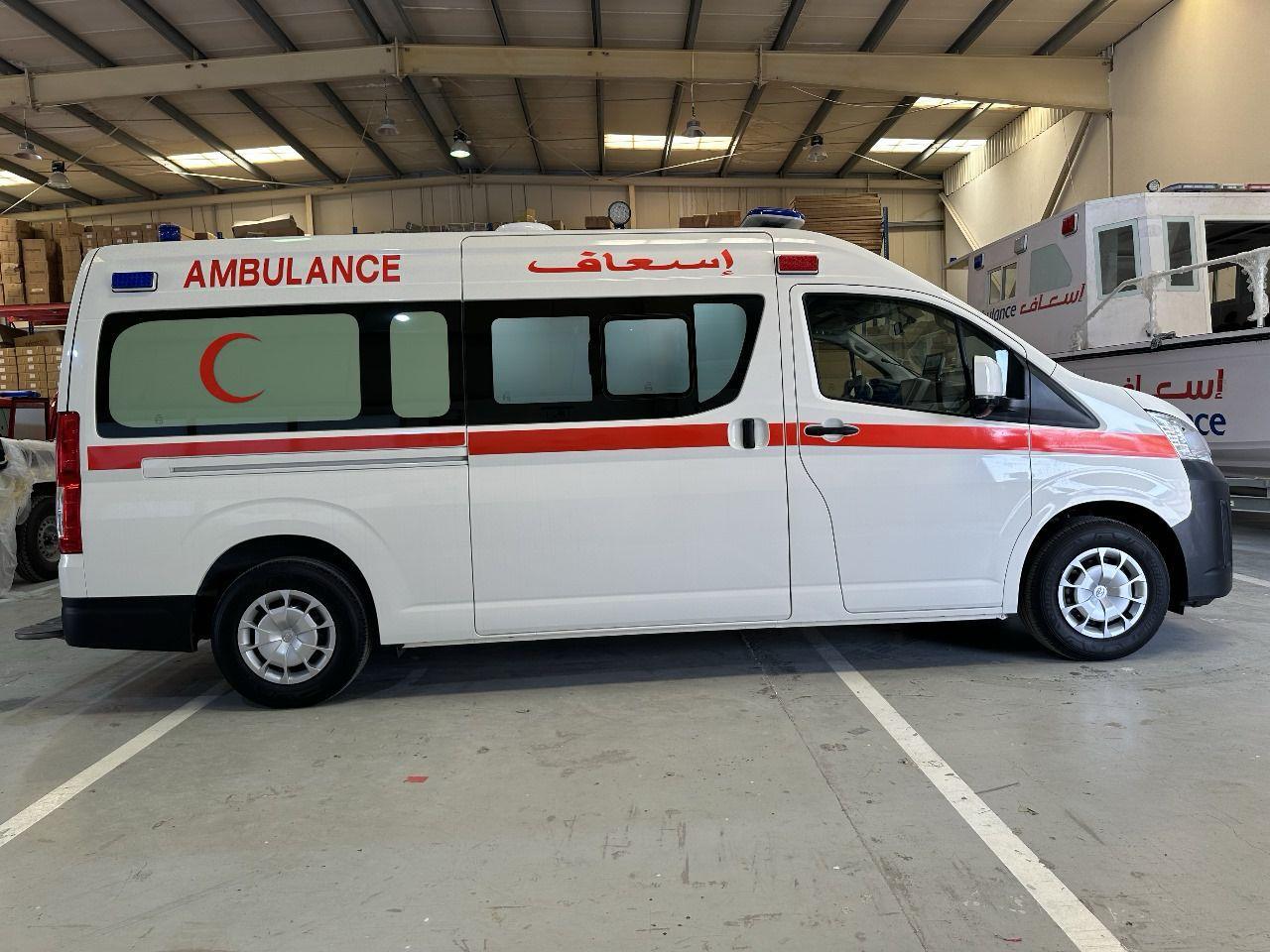

Toyota Hiace High Roof ALS (Advanced Life Support) Ambulance
Type C Emergency Intensive Care Vehicle — Engineered for Mobile ICU & High-Risk Life Critical Operations
🌟 Engineering & Operational Highlights
- Powertrain Versatility: 2026 Model Year Toyota Hiace Platform featuring 3.5L V6 Petrol and 2.8L Turbo Diesel engine variants with Manual or Automatic transmission options.
- High-Capacity Electrical System: Integrated 2000W Pure Sine-Wave Inverter Grid, 240V Shoreline Power Mains, and Digital Central Management Interface.
- Hygienic Interior Architecture: Seamless anti-bacterial PVC wall cladding, specialized PVC medical cabinetry, and 18mm marine plywood anti-slip vinyl subfloor.
- Advanced Medical ICU Integration: Modular layout supporting mechanical ventilators, monitor defibrillators, multi-parameter monitors, and precision syringe pumps.
- Integrated Gas Pipeline: Dual 10L steel O2 cylinder vault with high-pressure regulators, quick-connect wall sockets, and direct flowmeter integration.
⚙️ 1. Drivetrain, Chassis & Mechanical Performance
| Engineering Parameter | Technical Specification & Values |
|---|---|
| Base Chassis Platform | Toyota Hiace High Roof LHD (Model Year 2026) |
| Engine Option 1 (Petrol) | 3.5L V6 Petrol Engine (High-Output Multi-Point Injection) |
| Engine Option 2 (Diesel) | 2.8L D-4D Turbo Diesel (High-Torque Common-Rail Injection) |
| Transmission Options | Heavy-Duty 6-Speed Manual / Selectable 6-Speed Automatic Transmission |
| Drivetrain Architecture | Rear-Wheel Drive (RWD) with Reinforced Drive Axle |
| Front / Rear Suspension | Front: Independent MacPherson Strut | Rear: Heavy-Duty Rigid Leaf Spring |
| Braking Hardware | Ventilated Front & Rear Disc Brakes with Anti-Lock Braking System (ABS) & EBD |
| Active Safety Electronics | Vehicle Stability Control (VSC), Emergency Brake Assist (BA), Dual SRS Airbags, Speed Limiter |

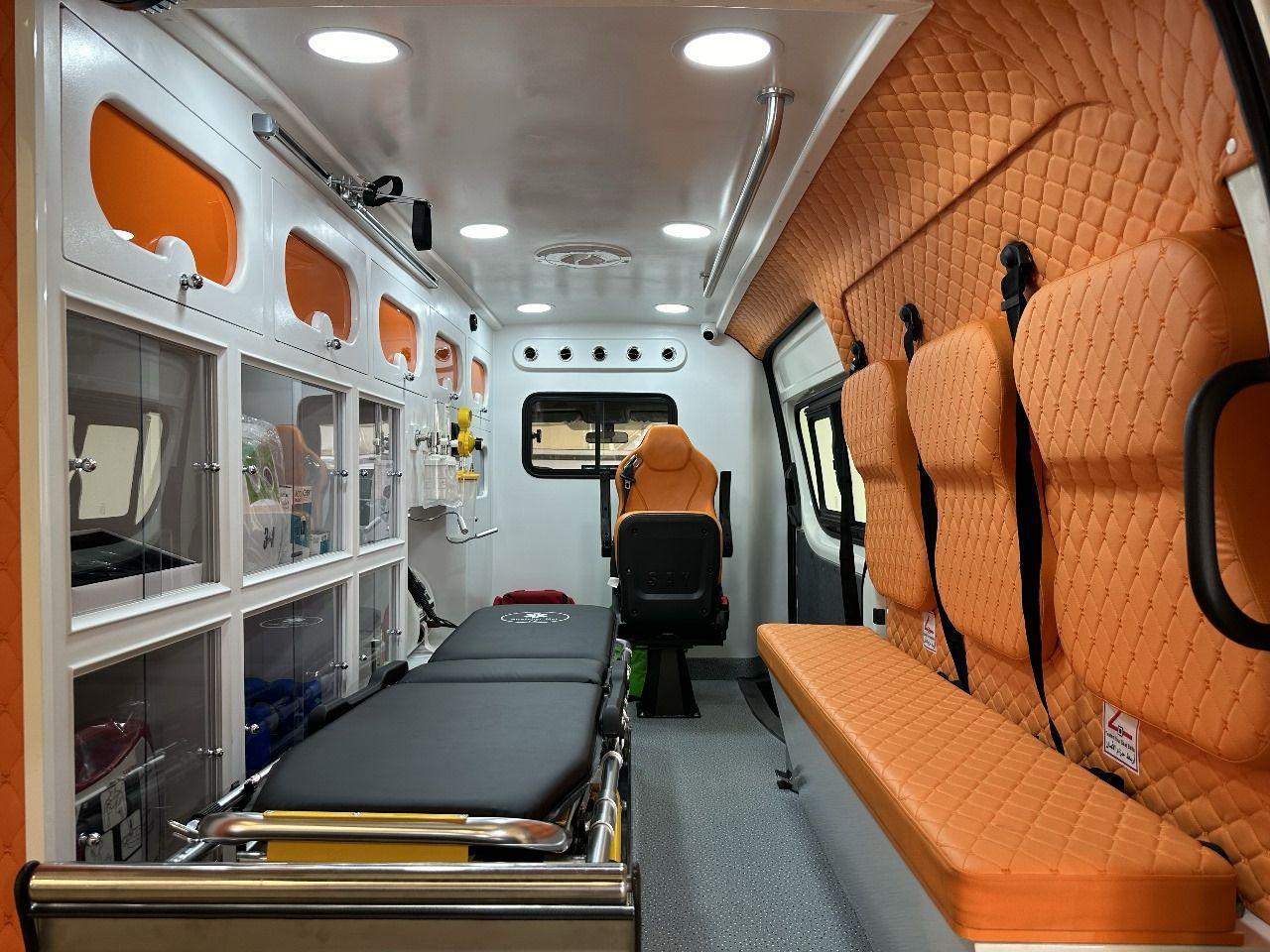

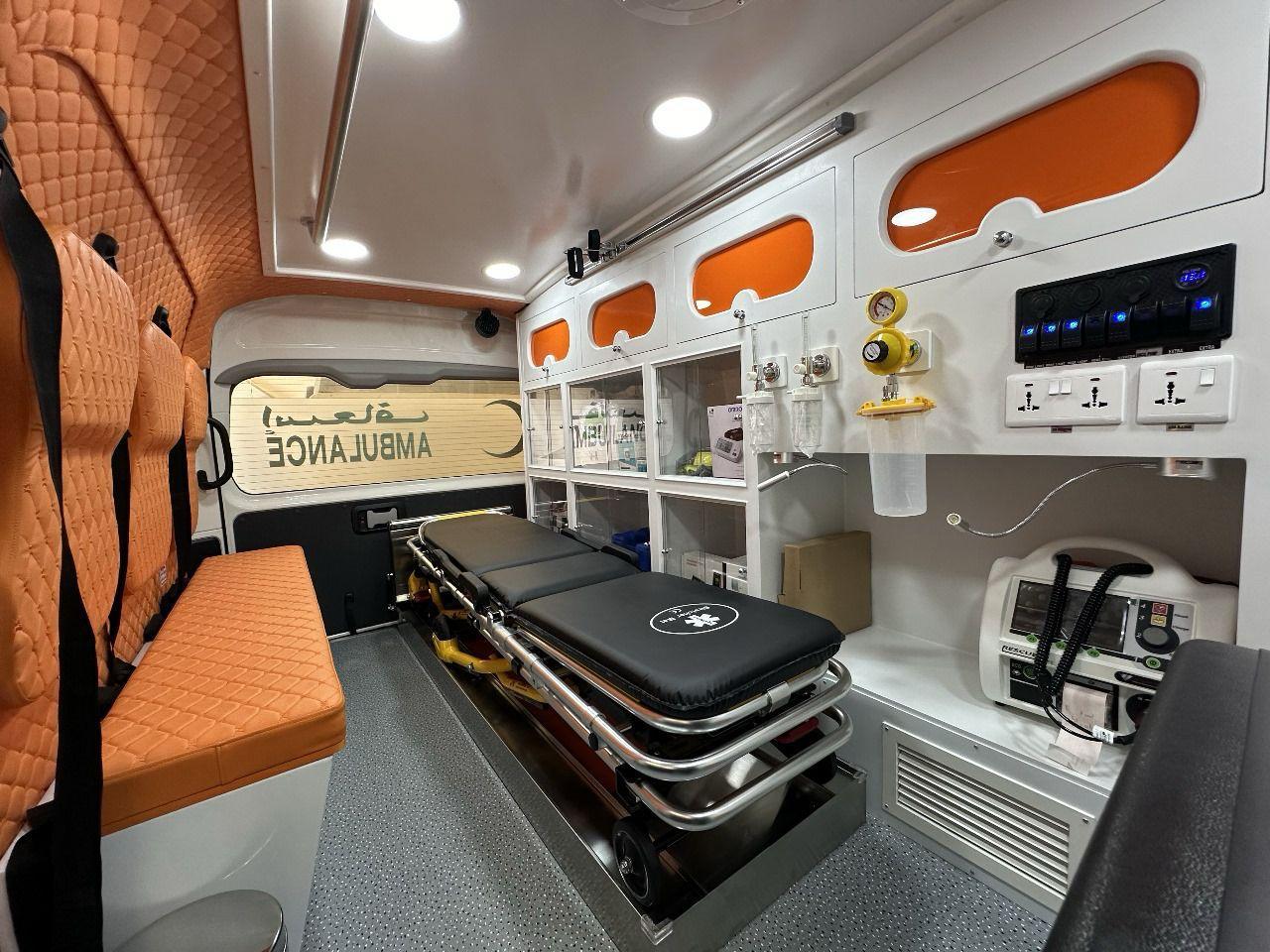

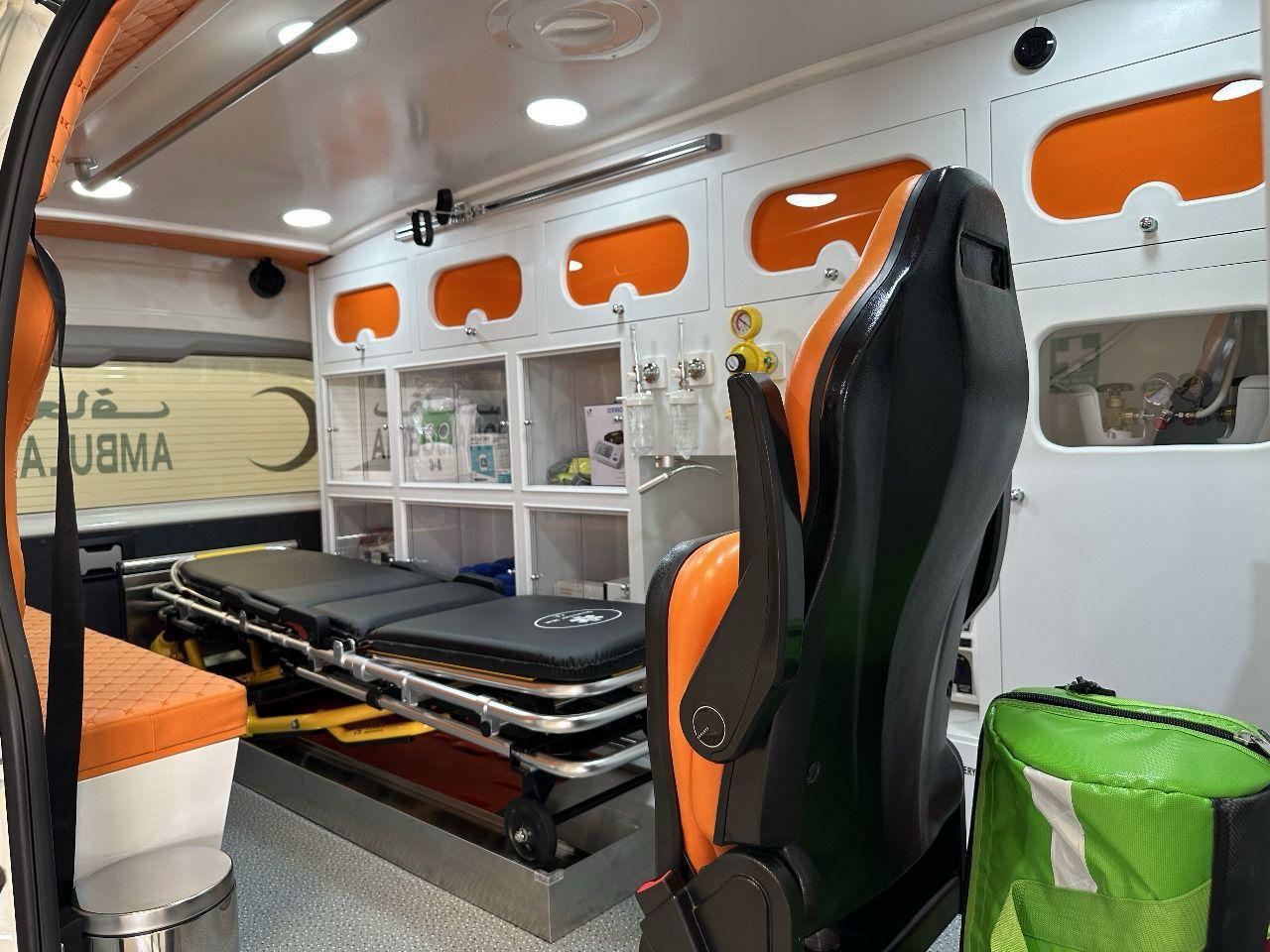

🚑 2. Patient Compartment Architecture & Interior Infrastructure
| Structural Component | Material, Build Standard & Engineering Detail |
|---|---|
| Partition & Seperator | Structural PVC bulkhead partition with integrated sliding communication window |
| Thermal & Sound Insulation | High-density polyurethane thermal insulation layer + Anti-bacterial PVC side/ceiling paneling |
| Subfloor & Surface Finish | 18 mm Marine-grade water-resistant plywood subfloor with heavy-duty anti-slip vinyl coating |

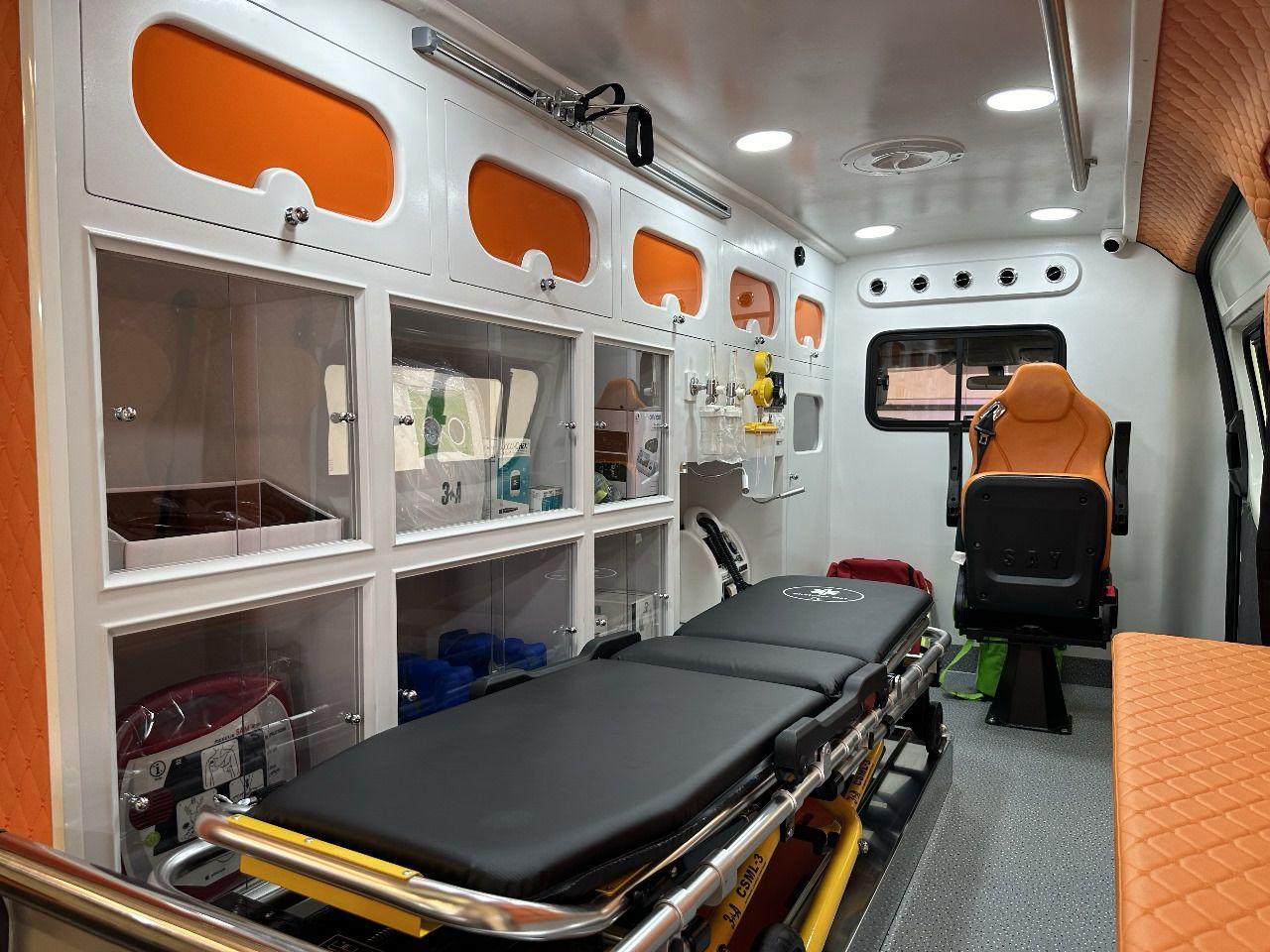

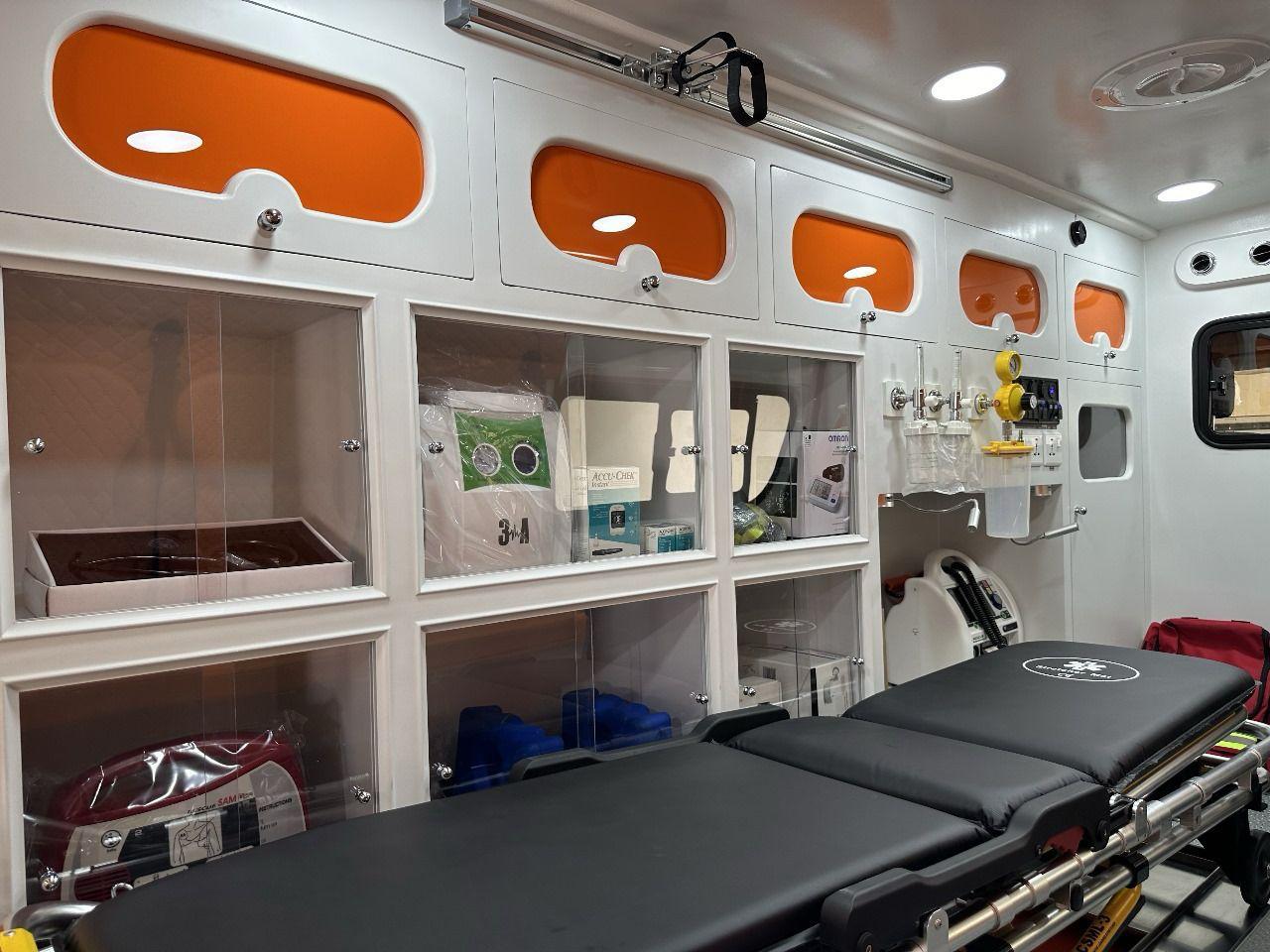

| Medical Cabinetry Modules | Integrated lightweight PVC cabinet system, ALS drug storage, push-lock latches & medical safe locker |

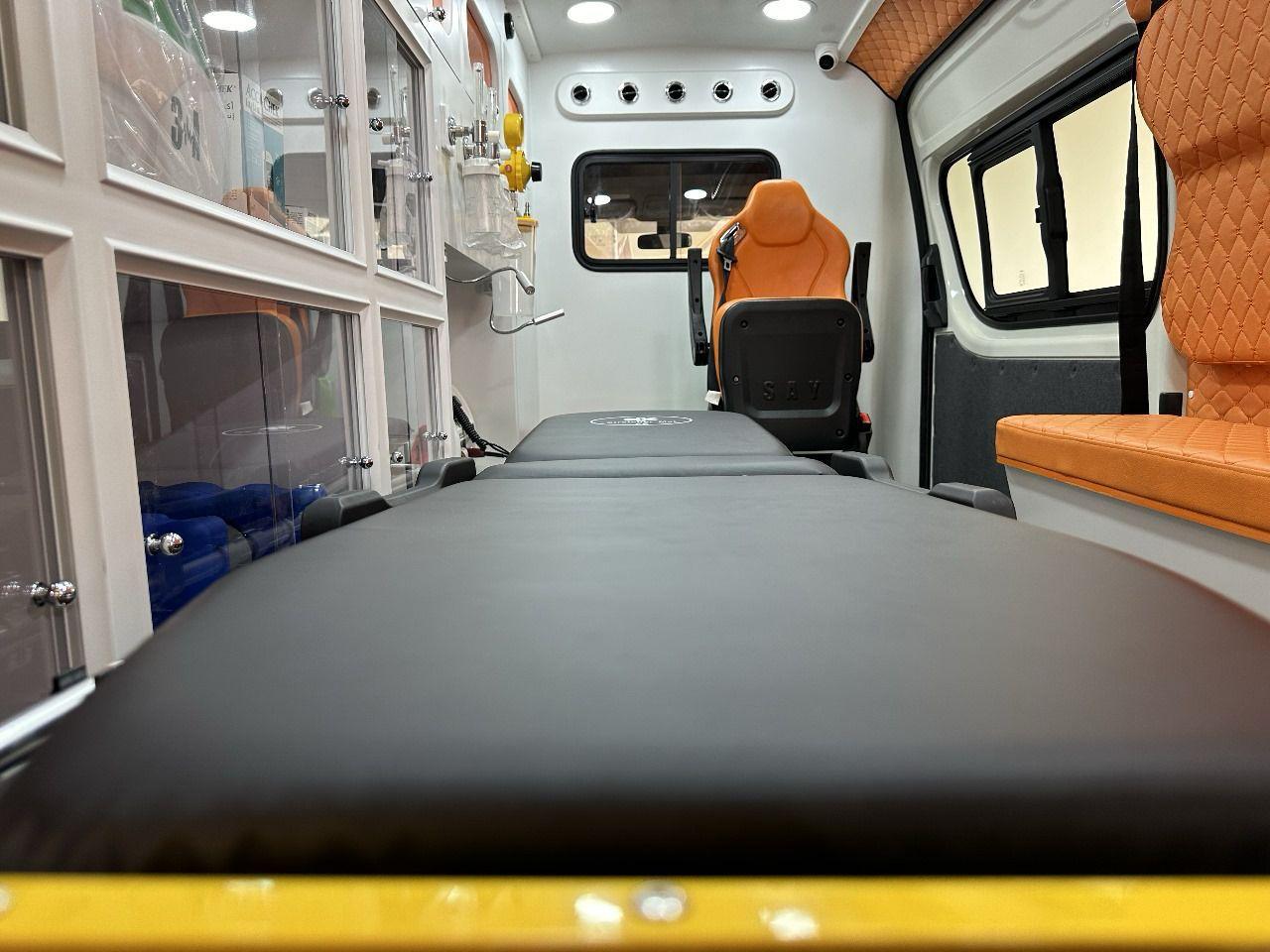

| Seating Configuration | 360° Ergonomic Swivel Doctor Seat + Lateral PVC Squad Bench with integrated under-seat storage |
| Sanitary Unit | Stainless steel wash basin module with automated electric water pump and storage tanks |
| Airflow & Sterilization Grid | Roof-mounted bidirectional ventilation fan + integrated UV-C air disinfection lamp system |
🔌 3. Electrical Systems, Climate Automation & Emergency Hardware
| System Sub-Unit | Technical Configuration |
|---|---|
| Power Inverter Grid | 2000W Continuous 240V Pure Sine-Wave Heavy-Duty Inverter Unit |
| External Shoreline Supply | 240V Exterior Shoreline Mains Inlet Connection + 100-meter heavy-duty extension cable grid |
| Distribution & Protection Panel | Central electrical switch control panel, thermal circuit breakers, 220V AC & 12V DC power sockets |
| HVAC & Cabin Heating | 4-Wing high-capacity dual-evaporator air conditioning system + heavy-duty auxiliary cabin heater |
| Emergency Signaling & Audio | Aerodynamic LED roof lightbar, perimeter strobe flashers, rear beacon lights, floodlights & 200W siren speaker system |
| Interior Lighting Matrix | Flush-mounted ceiling LED panels, cabinet spot illumination & flexible goose-neck doctor examination lamp |
| Communications Altyapısı | Hands-free driver-to-cabin intercom unit + satellite WiFi router pre-wire infrastructure |
🩺 4. Advanced Life Support (ALS) Medical Equipment Grid
| Equipment Description | Specification / Brand | Operational Purpose & Capabilities |
|---|---|---|

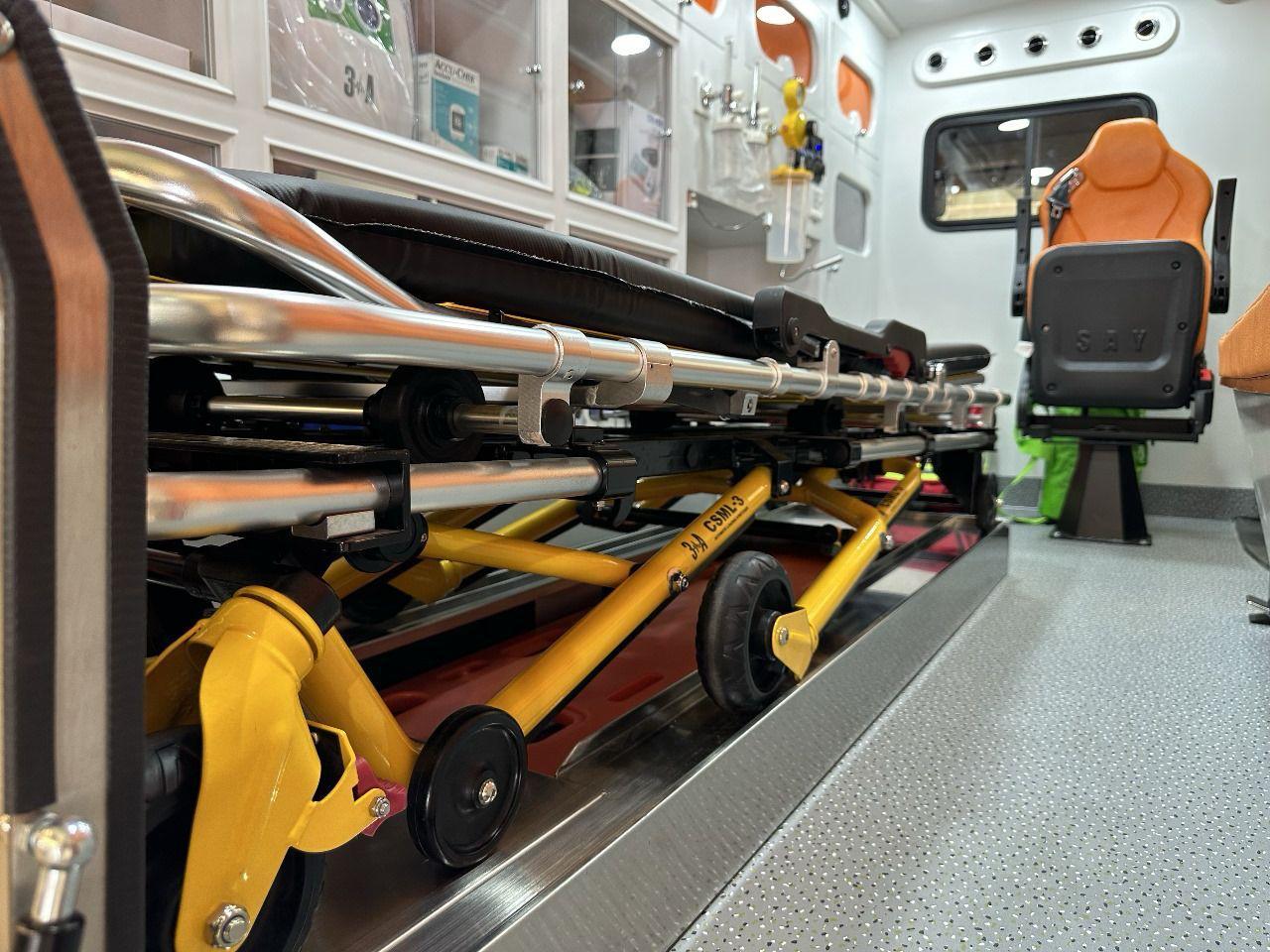

| Main Stretcher Assembly | Automatic Loading / Spencer Carrera | Roll-in self-loading stretcher system with automatic lock platform base |
| Transport Ventilator | AVEUS / Portable ICU Series | Pneumatic/Electric transport mechanical ventilator for intensive care respiration support |
| Monitor Defibrillator Unit | Biphasic Monitor AED System | Defibrillator unit with integrated ECG recording, SpO2 monitoring & automated AED functions |
| Multi-Parameter Patient Monitor | AVEUS Multi-Parameter | Real-time continuous tracking of ECG, NIBP, SpO2, Temperature & Respiration Rate |
| Suction & Aspirator Unit | AVEUS Electric Suction Machine | High-vacuum electric airway aspirator unit with wall mounting bracket integration |

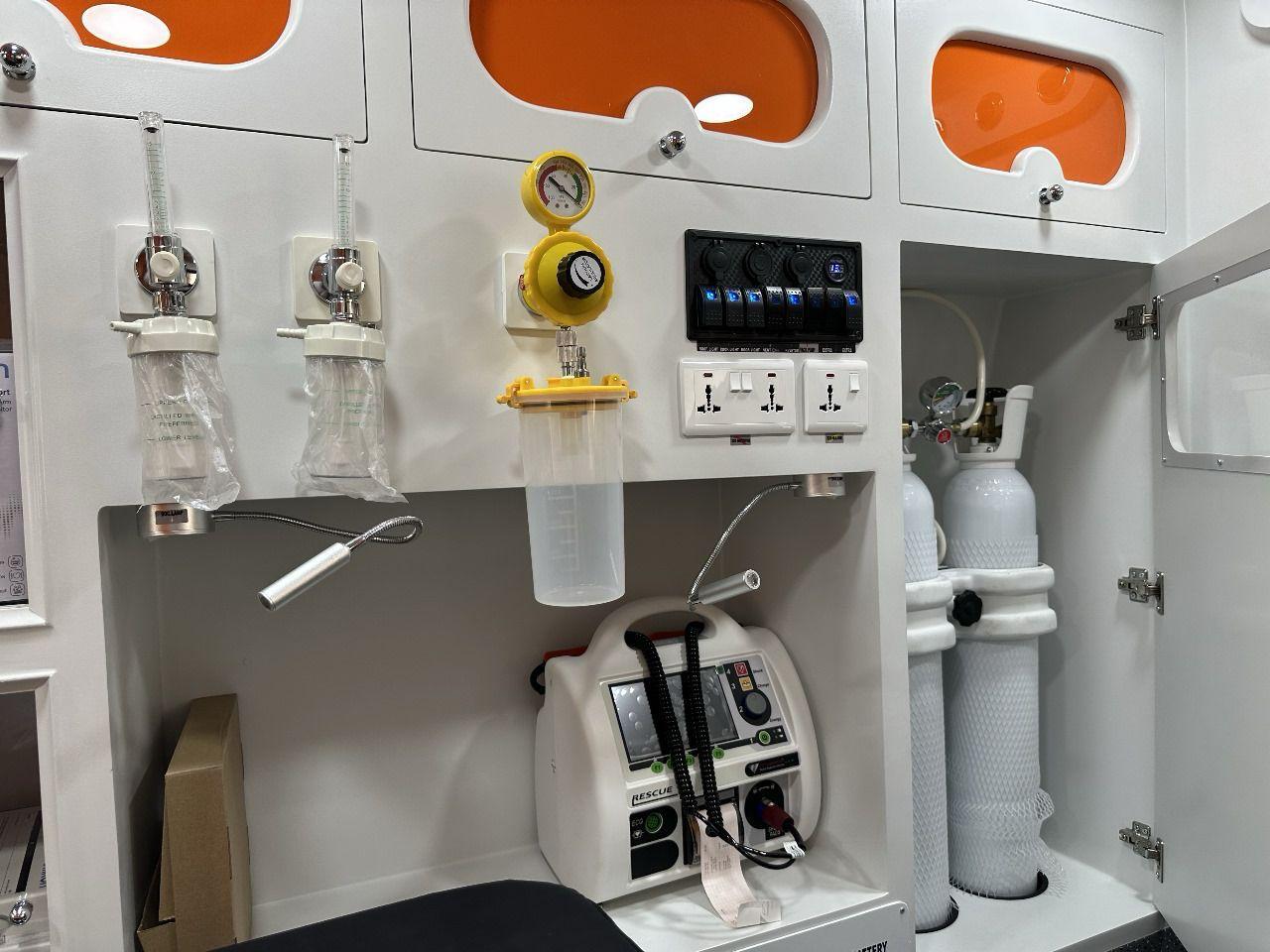

| Oxygen Pipeline System | 2x 10L Steel Tanks + 2.5L Portable | Central oxygen pipeline system with pressure regulators, flowmeters & quick-connect outlets |
| Infusion & Syringe Pumps | Volumetric & Micro Syringe Pump | Precision micro-dosing medication and intravenous fluid administration systems |
| Immobilization Equipment | Spine Board, Scoop & Vacuum Mattress | HDPE Spine Board, Aluminum Scoop Stretcher, Full-body Vacuum Mattress & Head Immobilizer |
| Emergency Kits & Cases | Laryngoscope, Minor Surgery, OB/GYN, Burn Kit | Airway intubation set, minor surgical/suture kit, obstetrics delivery case & burn protection kit |
| Diagnostic Devices | Accu-Chek, Pulse Oximeter, Sphygmomanometer | Digital blood glucose meter, aneroid wall/portable blood pressure meters & infrared thermometry |
🛠️ 5. Optional Heavy-Duty & Tactical Terrain Upgrades
| Upgrade Category | Available Technical Enhancement |
|---|---|
| Off-Road Package | All-Terrain Off-Road Tyres + Heavy-Duty Reinforced Suspension Upgrade |
| Portable Diagnostics | Portable X-Ray Unit + Portable Medical Freezer (-20°C storage capacity) |
| Disinfection Infrastructure | Automated Fogging Disinfectant Machine + Portable Handheld Fetal Doppler Unit |
* Specifications are based on standard Toyota Hiace High Roof ALS conversions. Medical hardware layout and chassis options can be customized according to regional requirements or national healthcare standards.
“`
