Ford Transit 350L L3 H3 Type II Ambulance & Technical Specifications

Heavy-Duty Basic Life Support (BLS) & Emergency Intensive Care Vehicle — Engineered to EN 1789, TSE, AMD & GSA International Standards[cite: 1, 6, 9].

🌟 Key Technical Compliance & Operational Features

  • Official Homologation & Chassis: Built on 2025 Ford Transit 350L (V363 / BLRA Chassis Engine) 2.0L EcoBlue Euro 6EB Heavy-Duty Diesel[cite: 1, 23, 24].
  • Certified Structural Weight Standard: Designed with a 3,500 kg Gross Vehicle Weight (GVW) and 2,378 kg base operational mass[cite: 24].
  • Hygienic Interior Architecture: Seamless ABS mono-block wall/ceiling paneling paired with high-durability Sika Epoxy floor coating[cite: 9].
  • Integrated Medical Oxygen & Vacuum Grid: Complete 2x10L oxygen cylinder vault with dual-stage regulators and RICO / 3A suction infrastructure[cite: 13, 17].
  • Tactical Armoring Compatibility: Dual-Use Cash-in-Transit (CIT) upgradeable platform with up to CEN Level B6+ ballistic protection.

⚙️ 1. Base Vehicle, Engine & Mechanical Performance

ParameterTechnical Specification & Value
Base Platform & Model YearFord Transit 350L L3 H3 (Model Year 2025)[cite: 1]
Vehicle Category & Body TypeCategory N1 / Type BB Van Emergency Ambulance[cite: 23, 24]
Engine Model & ArchitectureFord BLRA 2.0L EcoBlue Turbo Diesel, 4-Cylinder Inline[cite: 24]
Engine Displacement & Output1,996 cc | 121.3 kW (165 HP) @ 3,500 RPM[cite: 24]
Emission Standard & WLTP CO2Euro 6EB | Combined CO2: 249 g/km | Combined Fuel: 9.5 L/100km[cite: 23, 24]
Transmission & Gear Ratios6-Speed Manual (Ratios: 1st 5.701, 2nd 2.974, 3rd 1.803, 4th 1.282, 5th 1.000, 6th 0.776 / Final 3.73)[cite: 24]
Drive Layout & Axle ConfigRear-Wheel Drive (RWD) / Single Rear Axle (2/4 Layout)[cite: 24]
Dimensions (L x W x H)5,981 mm (L) x 2,059 mm (W) x 2,840 mm (H)[cite: 24]
Wheelbase & Cargo LengthWheelbase: 3,750 mm | Cargo Area Length: 2,900 mm[cite: 24]
Weight Parameters (Mass Data)Technically Permissible Max Weight (GVW): 3,500 kg | Mass in Running Order: 2,294–2,378 kg[cite: 24]
Axle Load Limits & TiresFront Axle: 1,750 kg | Rear Axle: 2,250 kg | Tires: 235/65 R16C 121/119R (6.5Jx16)[cite: 24]
Safety Electronics & ADASAdvanceTrac® RSC®, ABS, TPMS, ELKS, AEBS, ESS, AIF, ISA, DDAW, EDR[cite: 23]

🚑 2. Patient Compartment Insulation, Cabinetry & Interior Architecture

Component CategoryMaterial, Brand & Technical Execution Detail
Thermal & Acoustic InsulationElastomeric Rubber Foam insulation with left/right side sheet metal structural reinforcements[cite: 9]
Wall & Ceiling CladdingThermoformed ABS Ready-Made Ceiling & Side Panel Covering (Washable, Anti-Bacterial)[cite: 9]
Flooring Construction16 mm Monolithic Base MDF + Sika Industrial Epoxy Anti-Slip Flooring Coating[cite: 9]

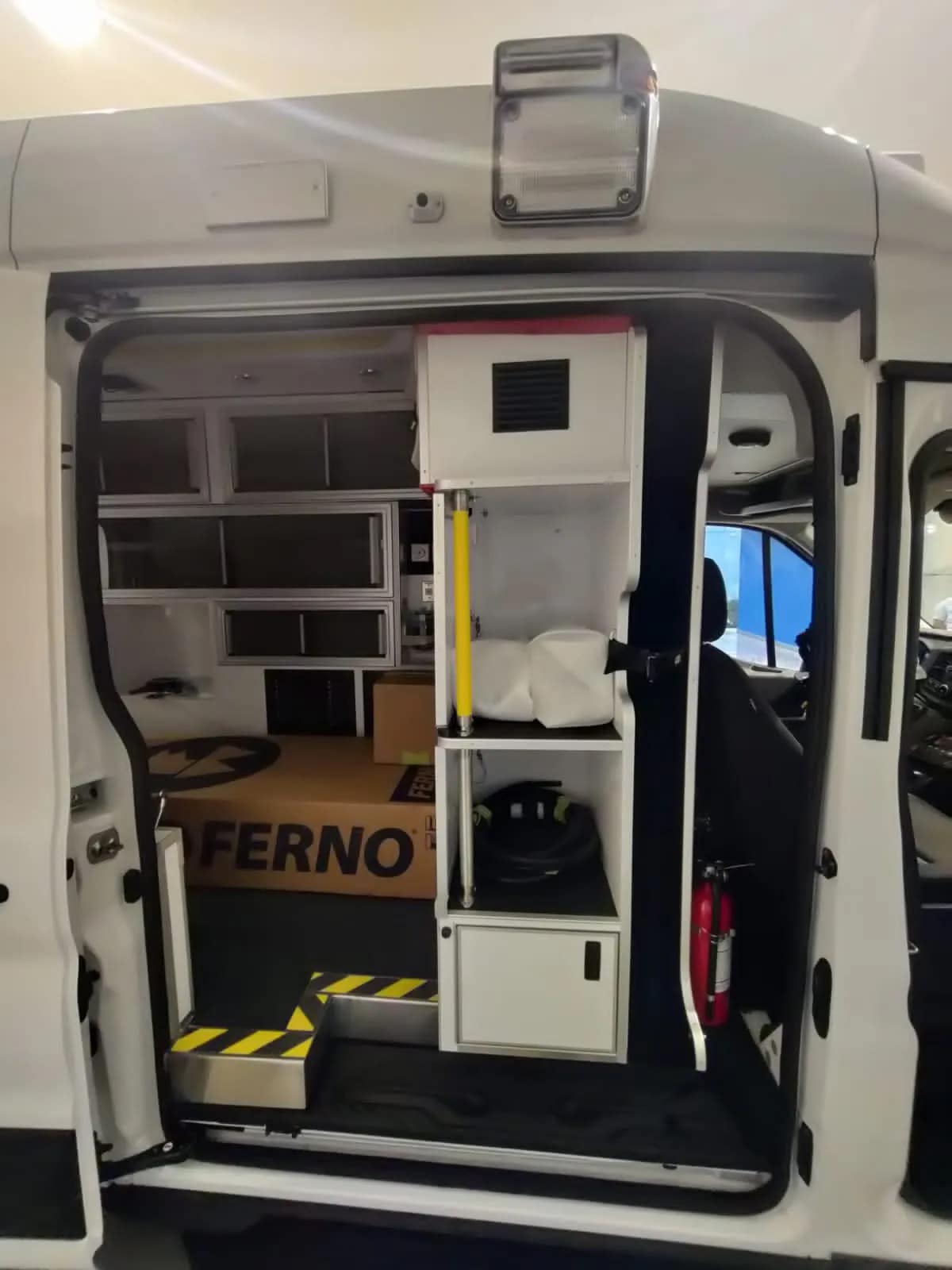

Cabinetry & Storage FurnitureVekaplan Foamboard Cabinet System (Germany); includes wheelchair storage, drawer units, push-locks[cite: 9]
Medical Device Mounting RailsIntegrated fixing apparatuses for Ventilator, Defibrillator, Portable Suction, Spine Board & Chair Stretcher[cite: 9]

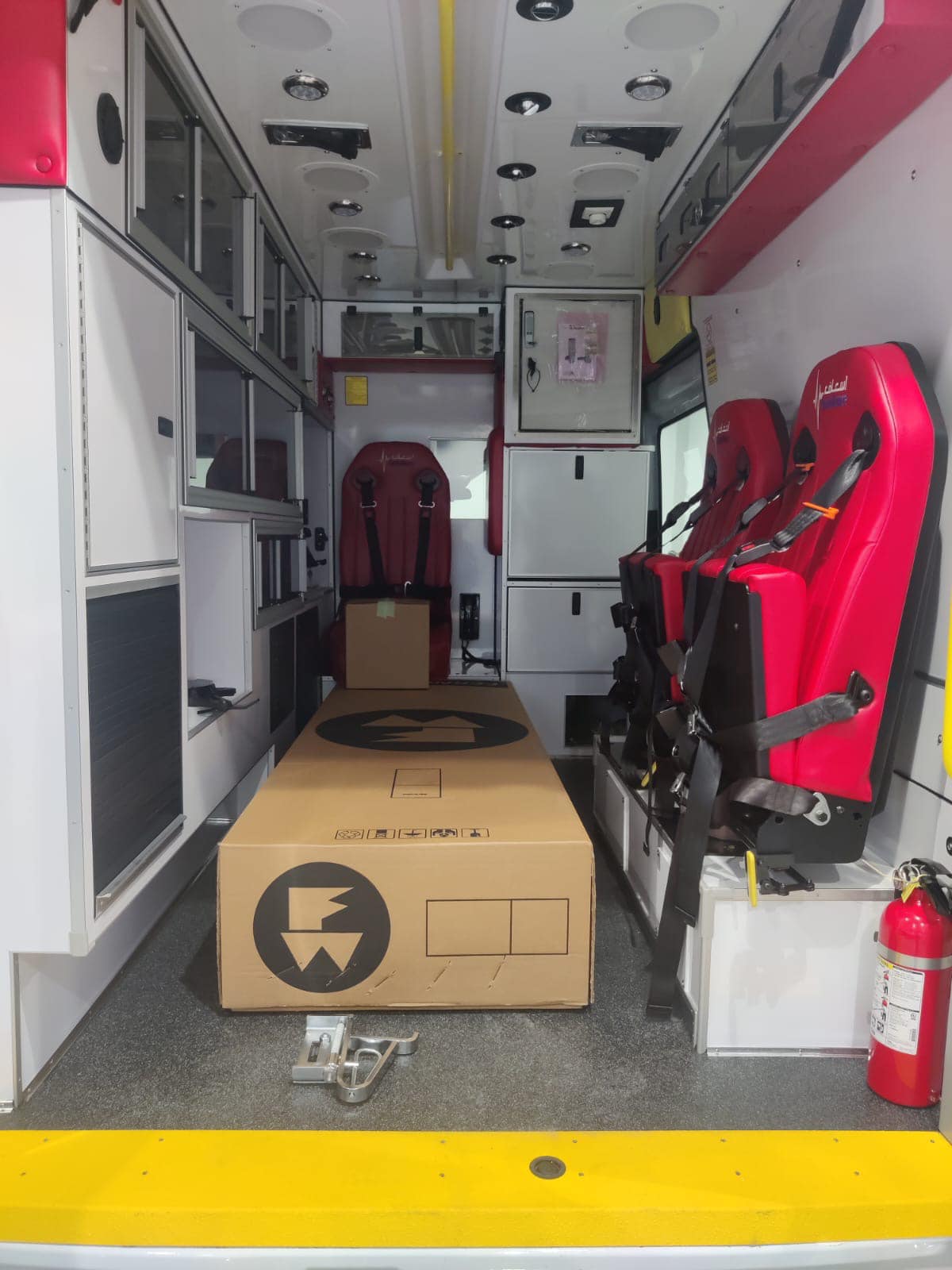

Seating Configuration1x Swivel Doctor Chair at partition + 2x Functional Attendant Seats with integrated safety belts[cite: 9]
Sanitary AmenitiesStainless steel handwashing basin module integrated into medical cabinetry[cite: 9]

🔌 3. Electrical Infrastructure, Climate Automation & Gas Piping

System Sub-UnitTechnical Hardware Specification & Supplier
Wiring & Electrical StandardHeat-resistant color-coded cabling compliant with TSE (Turkish Standards Institution) regulations[cite: 6]
Power Management Grid12V/220V Inverter + 220V/12V Redresor Charger + Yiğit Auxiliary 2nd Battery[cite: 5]
Mains Shoreline ConnectionMetece (Germany) 220V External Inlet + Siemens Leakage Current Circuit Breakers[cite: 7]
Outlets & Distribution3x 220V AC Clamp Outlets (T-Plast) + 5x 12V DC Sockets (Üstün)[cite: 7]
HVAC & Climate ControlERC Dual Chiller Air Conditioner (Front/Rear Vents) + ERC Airtronic Independent Fuel Rear Cabin Heater[cite: 5, 6, 7]
Signaling & IlluminationZER Front/Rear Lightbars, 6x Blue Side LED Flashing Warning Lights, 4x Fluorescents, 2x Spotlights & Siren System[cite: 5]
Comms & Control ModuleICU Master Digital Touch Control Panel + Yaesu Radio Antenna & Kumel Intercom[cite: 5, 7]

🩺 4. Medical Equipment & Patient Support Integration

Equipment DescriptionBrand & OriginTechnical / Load Specifications
Main Stretcher & PlatformICU (Turkey)[cite: 10]54 kg Main Stretcher (10G Crash-Tested) + 45 kg Floor Platform[cite: 3, 11]
Combination Chair StretcherICU (Turkey)[cite: 11]12.4 kg Foldable Chair / Transfer Stretcher[cite: 3]
Scoop & Vacuum StretchersICU (Turkey)[cite: 11, 12]9.5 kg Aluminum Scoop Stretcher + Complete Vacuum Stretcher & Pump[cite: 3, 12]
Immobilization HardwareICU (Turkey)[cite: 17]7.0 kg HDPE Spine Board, KED Extrication Vest, Traction Splint Set & Inflatable Splints[cite: 3, 13, 17]
Defibrillator UnitSchiller Defigard 400 (Germany)[cite: 16]12.0 kg Biphasic Defibrillator with Integrated ECG / SpO2 Monitor[cite: 3, 16]
Transport VentilatorKozmovent (Turkey)[cite: 16]15.0 kg Emergency Transport Ventilator Unit[cite: 3]
Suction Infrastructure3A (Italy) / ICU (Turkey)[cite: 13, 17]6.5 kg Portable Vacuum Aspirator with Wall Mount + Integrated Central Suction[cite: 3, 13, 17]
Medical Gas GridBursan / Tereyağoğlu (Turkey)[cite: 13]2x 10L Steel O2 Cylinders (2x 13.65 kg), Dual Regulators, Flowmeters & Wall Sockets[cite: 3, 13]
Infusion & DiagnosticsAveus (Poland) / Riester (Germany)[cite: 14, 20, 21]Advanced Volumetric Infusion Pump, Riester Sphygmomanometers & Nitra Diagnostic Set[cite: 14, 15, 20, 21]
Specialized Emergency KitsSöhngen (Germany)[cite: 17, 19]DIN-compliant Maternity Emergency Case, Pediatric Resuscitation & Thermal Burn Care Sets[cite: 17, 18, 19]

🛡️ 5. Tactical Dual-Use Variant — Cash-in-Transit (CIT) & Ballistic Protection

Armoring ParameterTechnical Configuration
Chassis CompatibilityFord Transit 350L Unibody Heavy-Duty Platform[cite: 1, 24]
Ballistic StandardsCEN Level B4 (Alpine A4) up to CEN Level B6+ (Alpine A9)
Threat NeutralizationProtection against 9mm, 5.56x45mm NATO, 7.62x39mm (AK-47), and high-velocity rifle rounds
Reinforcements & SafetyHutchinson Run-flat tire inserts, heavy-duty suspension upgrade, tactical gun ports, 360° CCTV & auto fire suppression

* All technical data sourced directly from official Ford Otosan Certificate of Conformity (CoC) documents and Infinity Chassis Units emergency vehicle engineering lists[cite: 1, 5, 23]. Custom medical hardware integration and regional chassis adaptations are available upon request.
