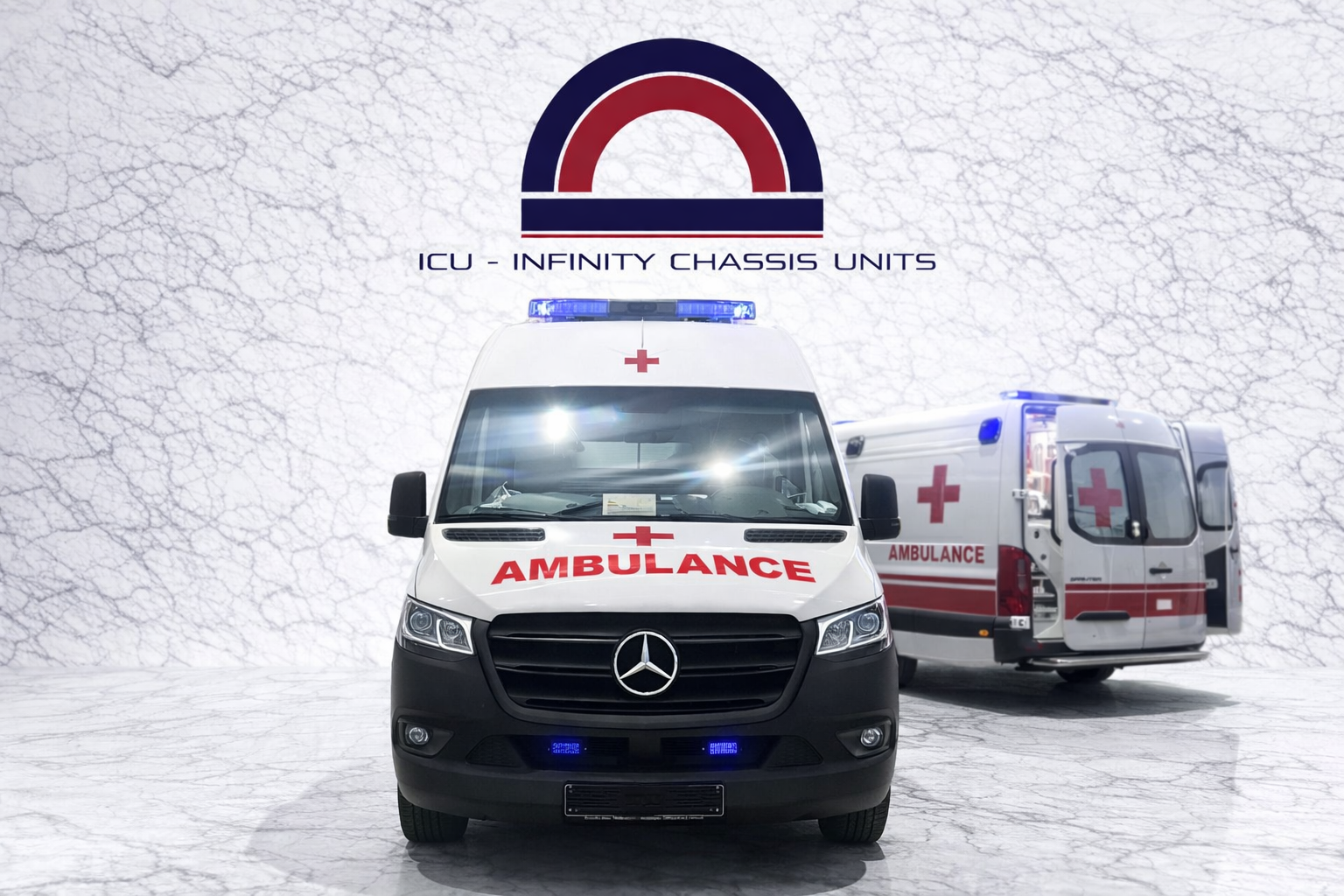

Mercedes-Benz Sprinter 417 CDI Intensive Care (ICU / ALS) Ambulance

Advanced Life Support (ALS) & ICU Medical Transport Unit — Engineered by Infinity Chassis Units for Critical Patient Care

🌟 Engineering & Operational Highlights

  • German Engineering Base: Built on the high-performance Mercedes-Benz Sprinter 417 CDI chassis[cite: 209].
  • Crash-Tested Safety: 10G tested main stretcher assembly and 5-stage moveable stretcher platform for critical patient stability[cite: 220].
  • Hygienic Foamboard Modular Interior: Lightweight, washable Vekaplan PVC foamboard cabinet system with dedicated ICU equipment mounting walls[cite: 218, 219].
  • Complete Medical Gas Grid: Dual 10L steel oxygen cylinder vault with Inspital high-pressure regulators, flowmeters, and central outlets[cite: 222].
  • Advanced Climate & Power Subsystems: Independent Eberspächer auxiliary cabin heating, Yılkar/Webasto air conditioning, and EMS 12V-220V inverter/rectifier grid[cite: 214, 216].

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values
Base Chassis PlatformMercedes-Benz Sprinter 417 CDI High Roof Van[cite: 209]
Vehicle Category & BuildAdvanced Life Support (ALS) / Intensive Care Unit (ICU) Ambulance[cite: 209]
Converter & ManufacturerInfinity Chassis Units Otomotiv Ltd. Şti.[cite: 208]
Compliance StandardsTSE Standard Compliant Electrical & Medical Structural Fit-Out[cite: 216]

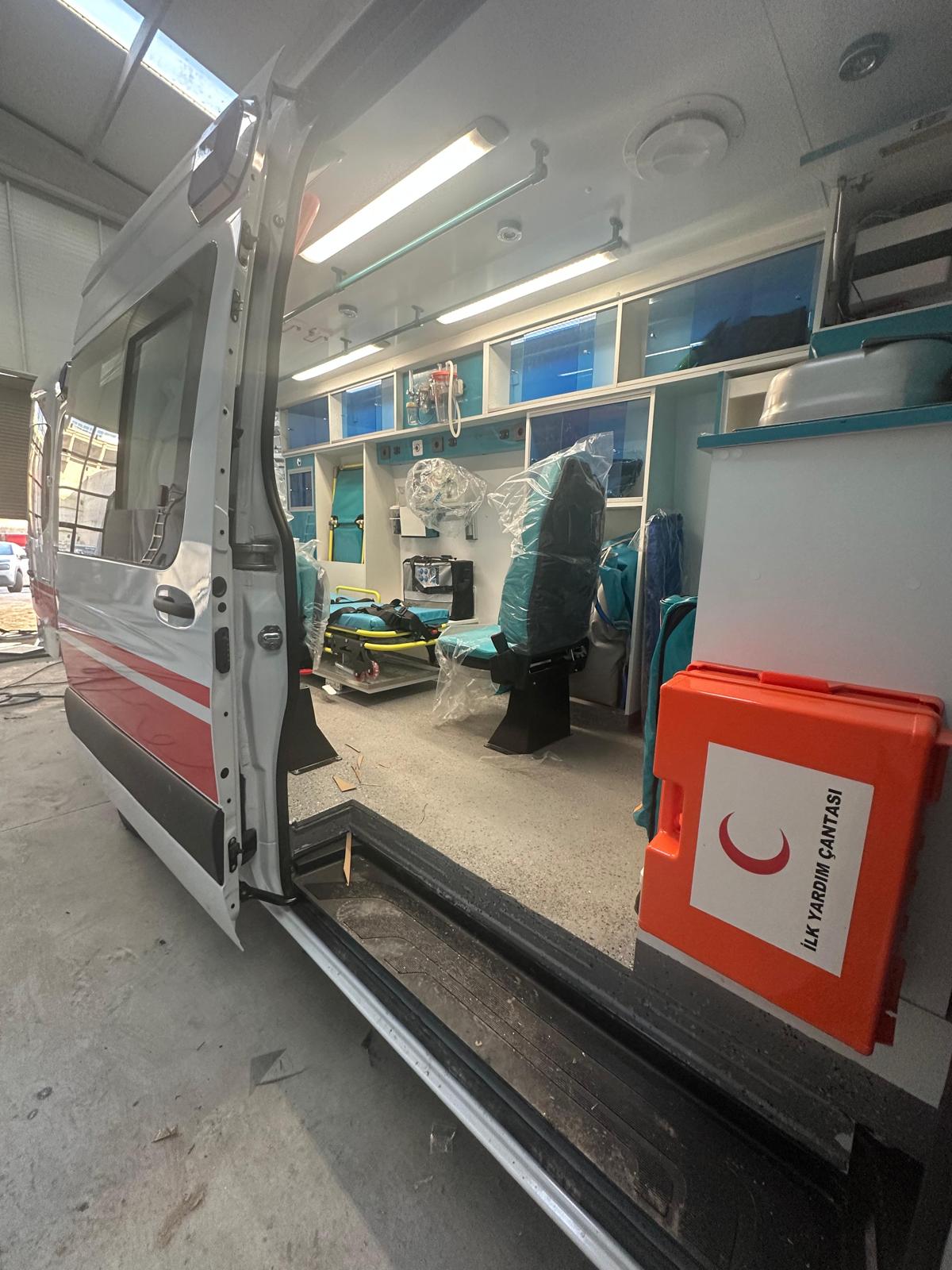

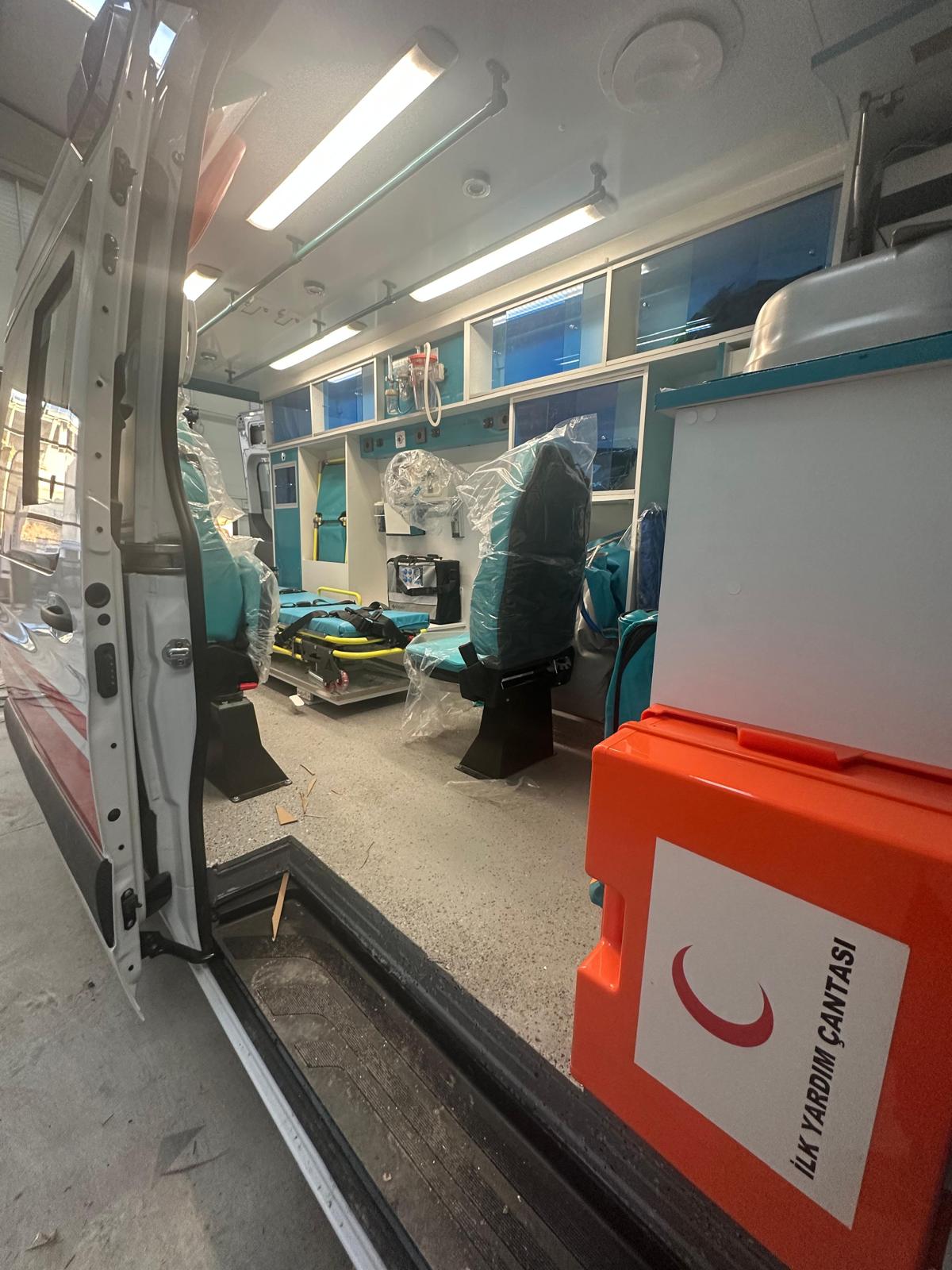

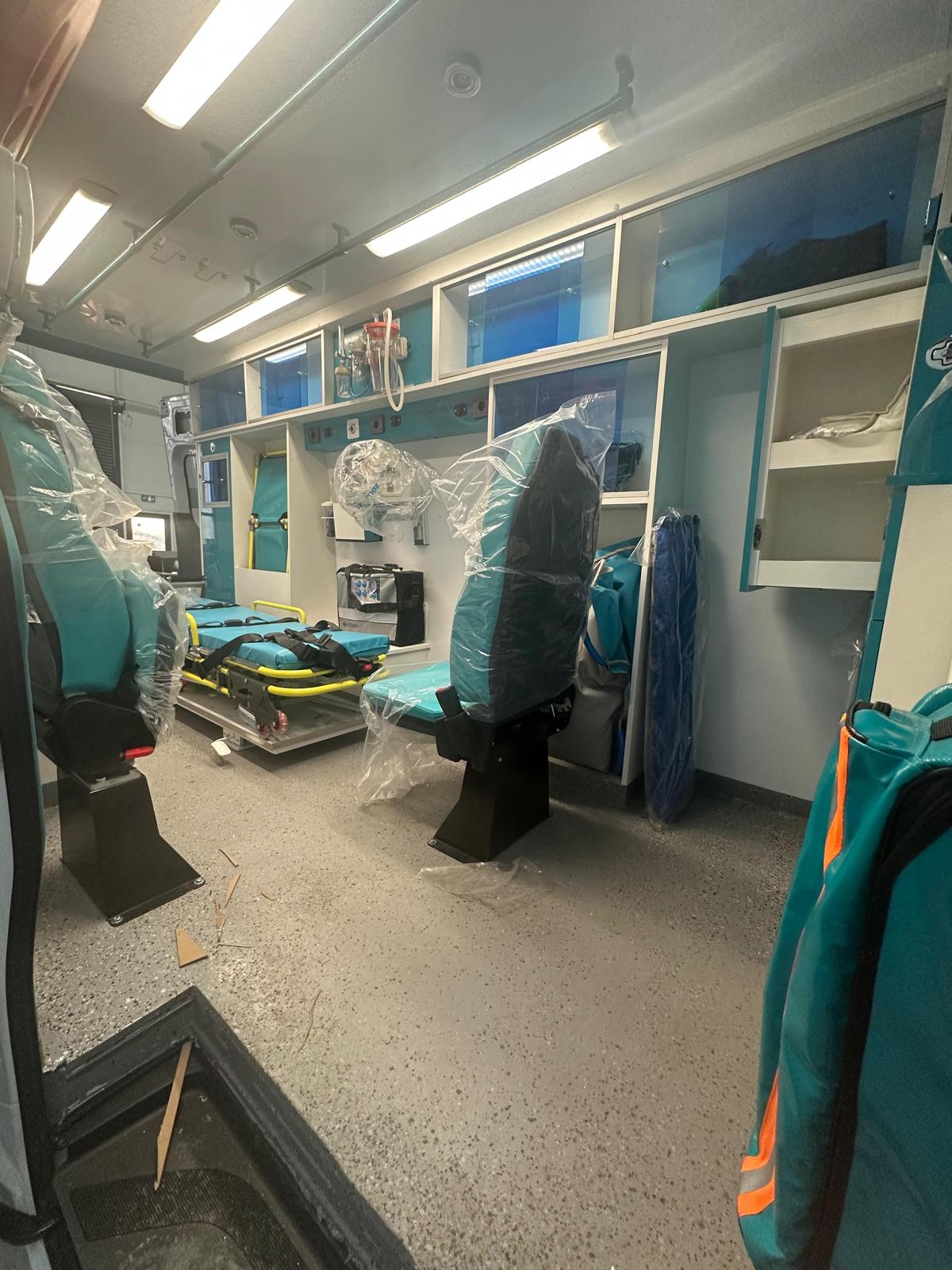

🚑 2. Patient Compartment Architecture & Interior Infrastructure

Structural ComponentMaterial, Build Standard & Engineering Detail
Thermal & Acoustic InsulationElastomeric rubber foam insulation with left and right side sheet reinforcements[cite: 217]
Subfloor & Flooring Finish16 mm monolithic MDF base topped with seamless, washable Sika Epoxy floor coating[cite: 219]
Internal Wall & Ceiling CladdingABS ready-made ceiling panels, ABS side panel wall coverings, partition flooring coating, and door trim coverings[cite: 219]

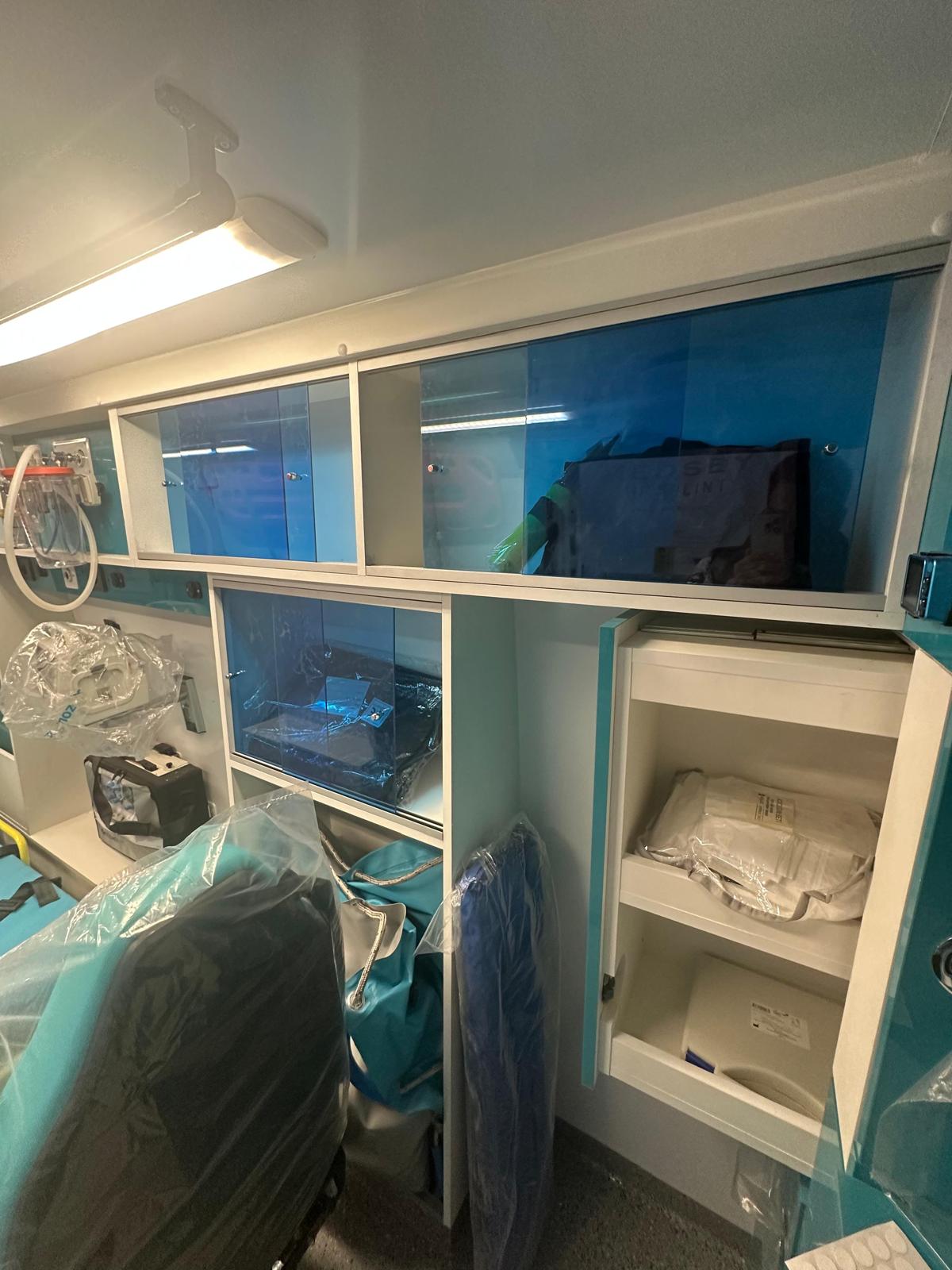

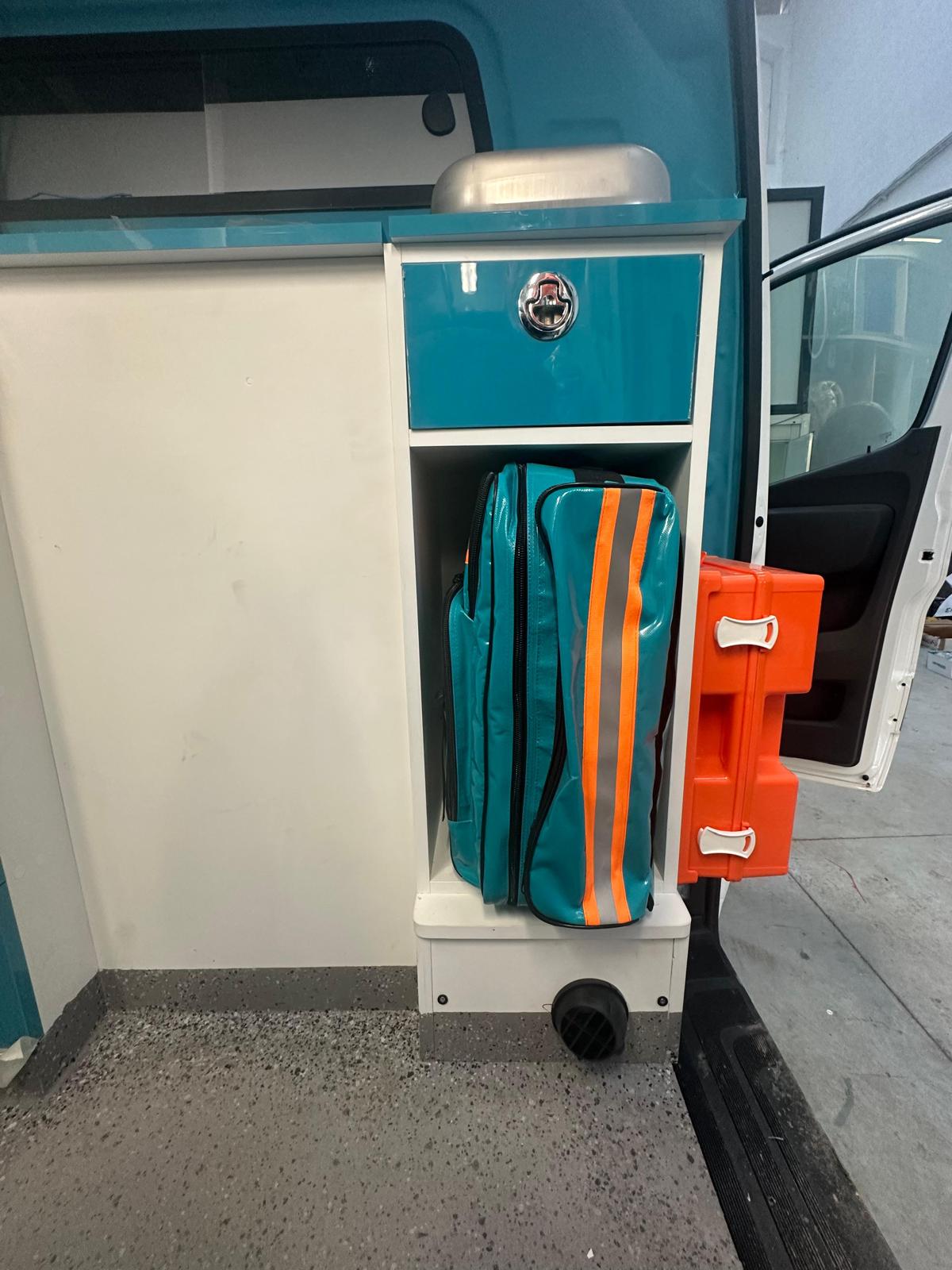

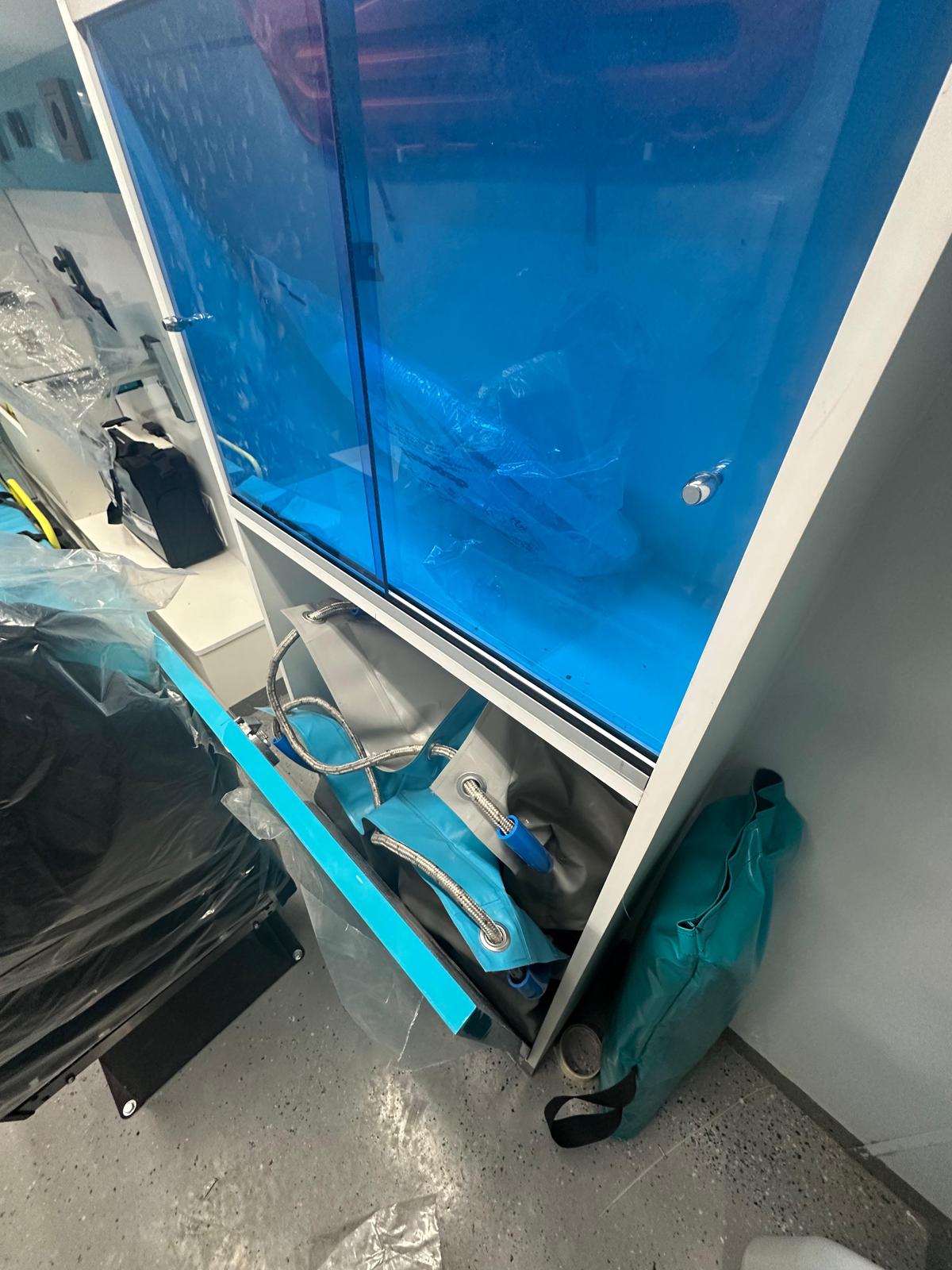

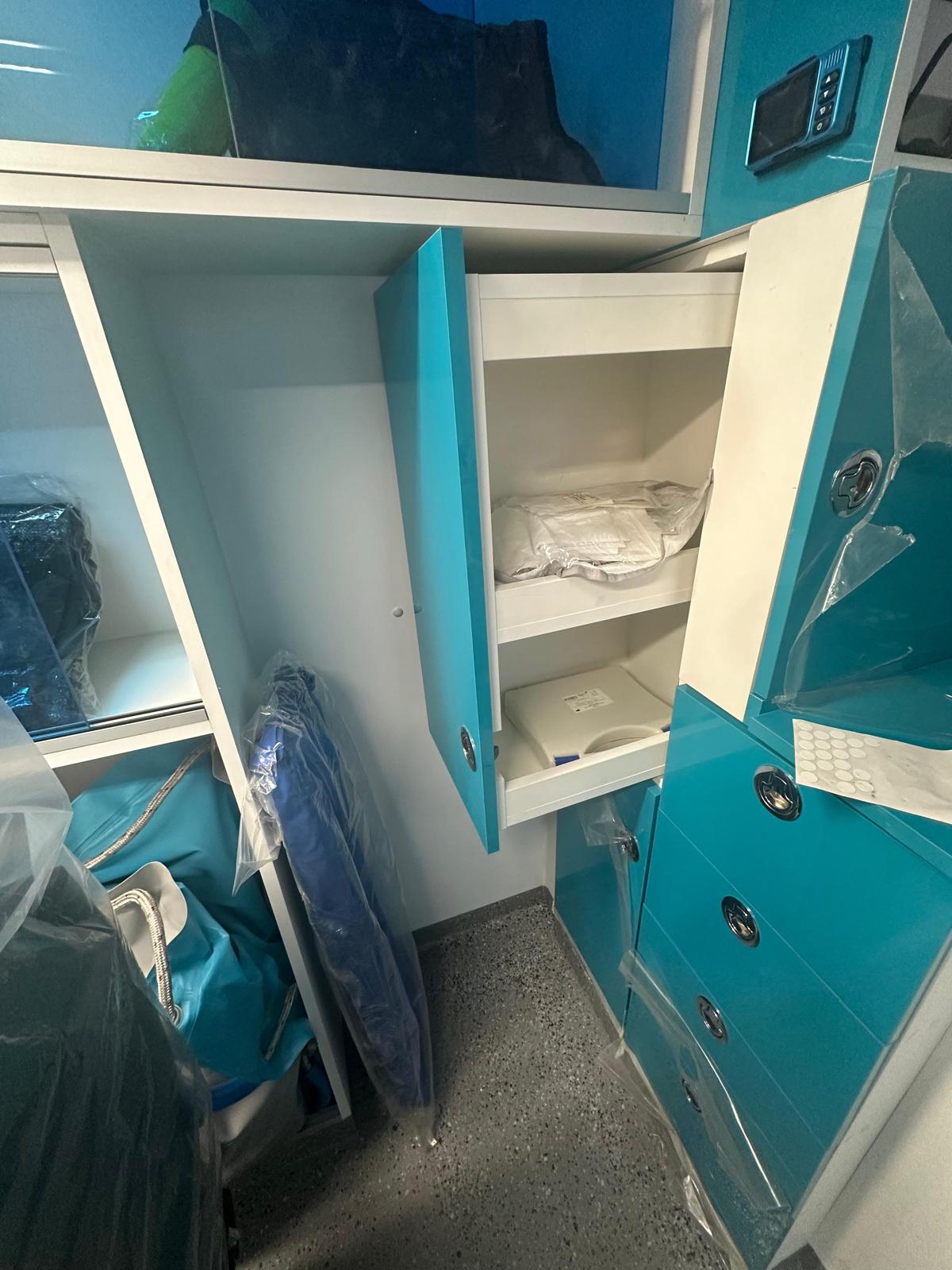

Medical Cabinetry SystemGerman Vekaplan foamboard cabinet system, drawer cabinets with safety locks, and integrated ICU medical device tower[cite: 218, 219]
Doctor & Crew SeatingPartition cupboard doctor chair + right-side functional doctor chair with safety seatbelts[cite: 218]

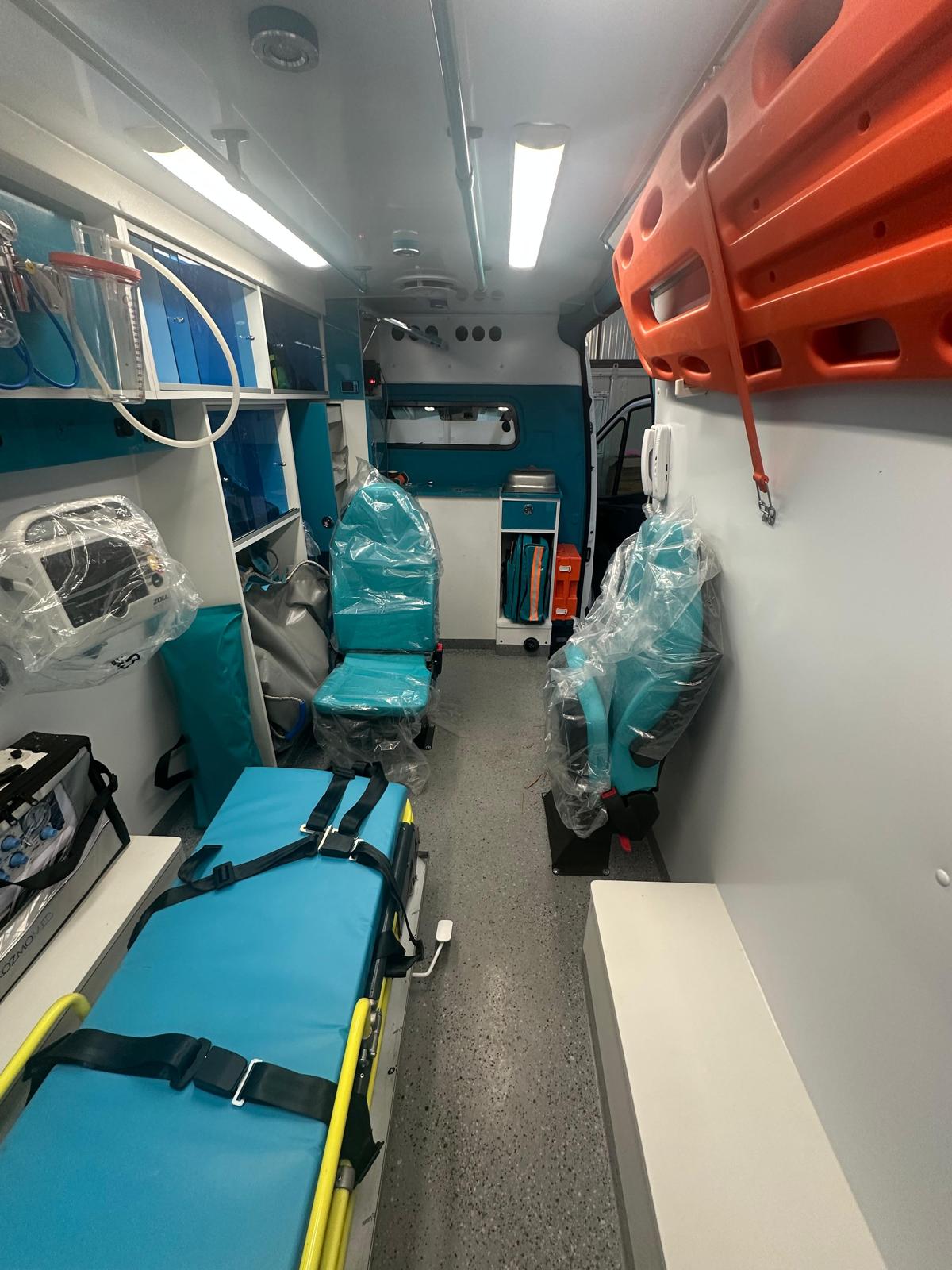

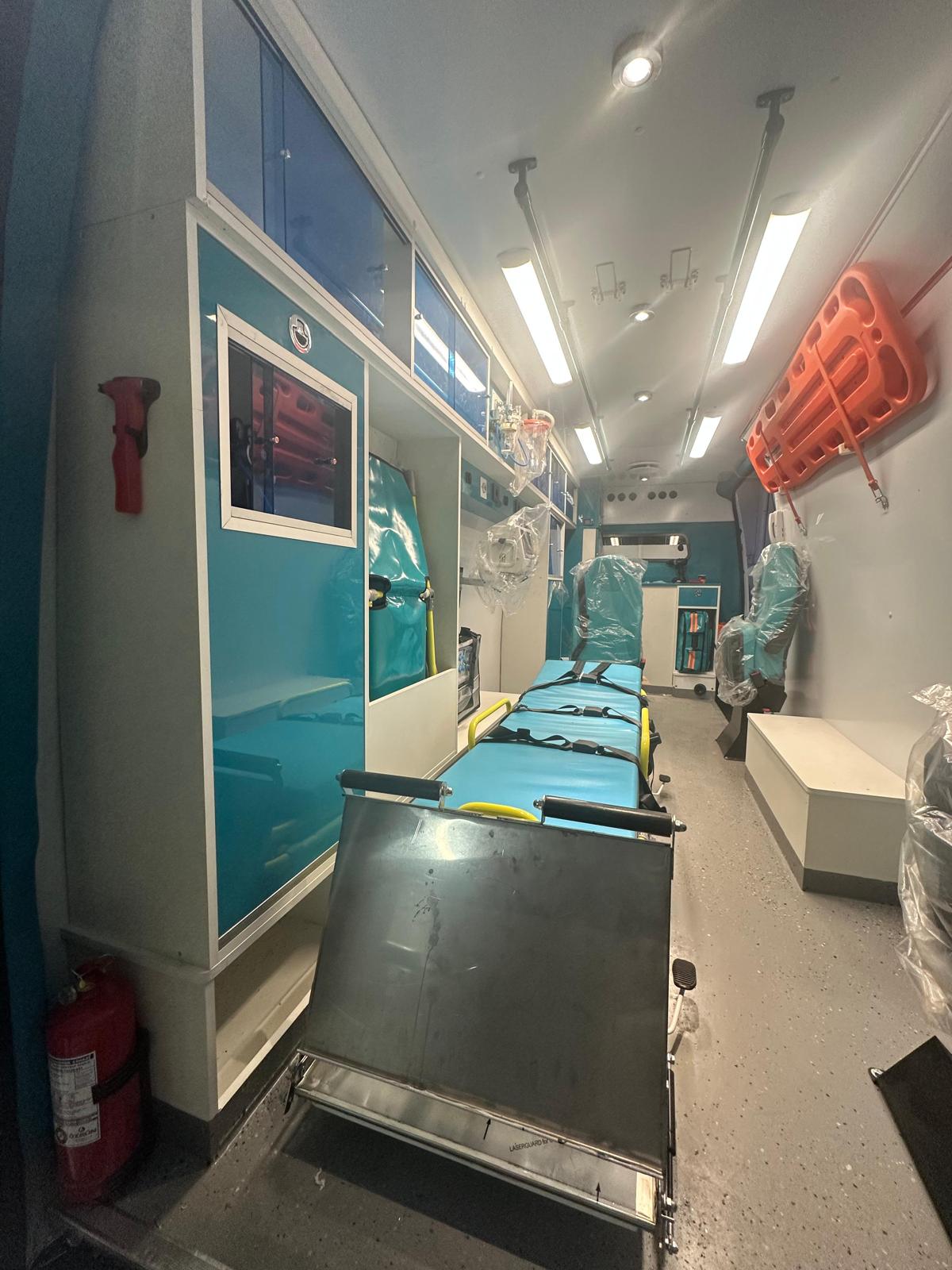

Stretcher Platform SystemEMS 2-moving 5-stage adjustable stretcher platform for patient loading and transfer[cite: 220]

🔌 3. Electrical Systems, Climate Control & Emergency Hardware

System Sub-UnitTechnical Configuration
Power Inverter & RedresorEMS 12V-220V Power Inverter + EMS 220V-12V Battery Redresor (Charger)[cite: 214]
Secondary Auxiliary BatteryYiğit heavy-duty auxiliary second battery unit[cite: 214]

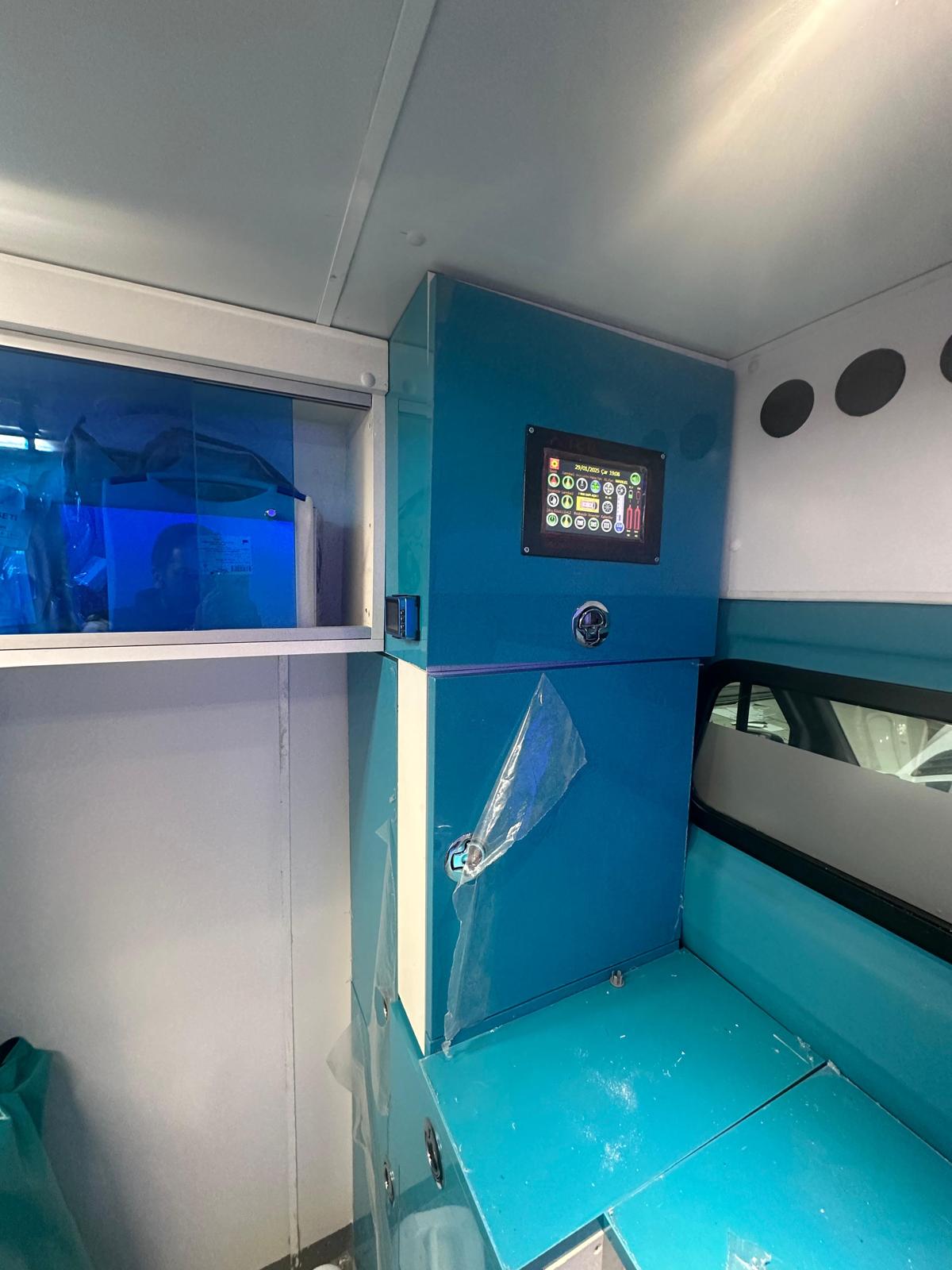

Electrical Distribution & OutletsColor-coded heat-resistant wiring, EMS master module illuminated switch, 3x 220V T-Plast outlets, and 5x 12V DC sockets[cite: 216]
External Shoreline Input220V Metece external power input with piece clamp and 2-meter connection cable[cite: 216]
HVAC & Auxiliary HeatingYılkar / Webasto patient cabin A/C system + Eberspächer Airtronic independent rear cabin heater[cite: 214, 216]
Emergency Signaling & AudioArmas front and rear beacon lightbars, 4x blue side strobe lamps, 2x amber side lamps, electronic siren with PA system, and reverse warning buzzer[cite: 214, 216]
Cabin Lighting & Comms4x ceiling fluorescent lamps, 2x spot lights, 1x address search lamp, driver-patient intercom system, and Yaesu radio antenna setup[cite: 214, 216]

🩺 4. Medical Equipment & ICU Life Support Matrix

Equipment DescriptionBrand / OriginOperational Capabilities
Main Stretcher AssemblyEMS (Turkey)[cite: 220]10G crash-tested main loading stretcher with cushion, safety belts, arm support board, and serum strap[cite: 220]
Auxiliary StretchersEMS (Turkey)[cite: 221]Combination Chair Stretcher, Aluminum Scoop Stretcher, and Vacuum Stretcher with pump & belts[cite: 221]
Defibrillator UnitComen (China)[cite: 225]Biphasic defibrillator monitor with ECG recording and critical care monitoring[cite: 225]
Transport VentilatorAVS (Turkey)[cite: 225]Portable ICU ventilator unit with wall mounting kit, patient circuit hose, and anesthesia mask[cite: 225]
Portable Aspirator UnitOscar Bascoral (Italy)[cite: 226]High-vacuum portable suction aspirator complete with wall mounting charger bracket[cite: 226]

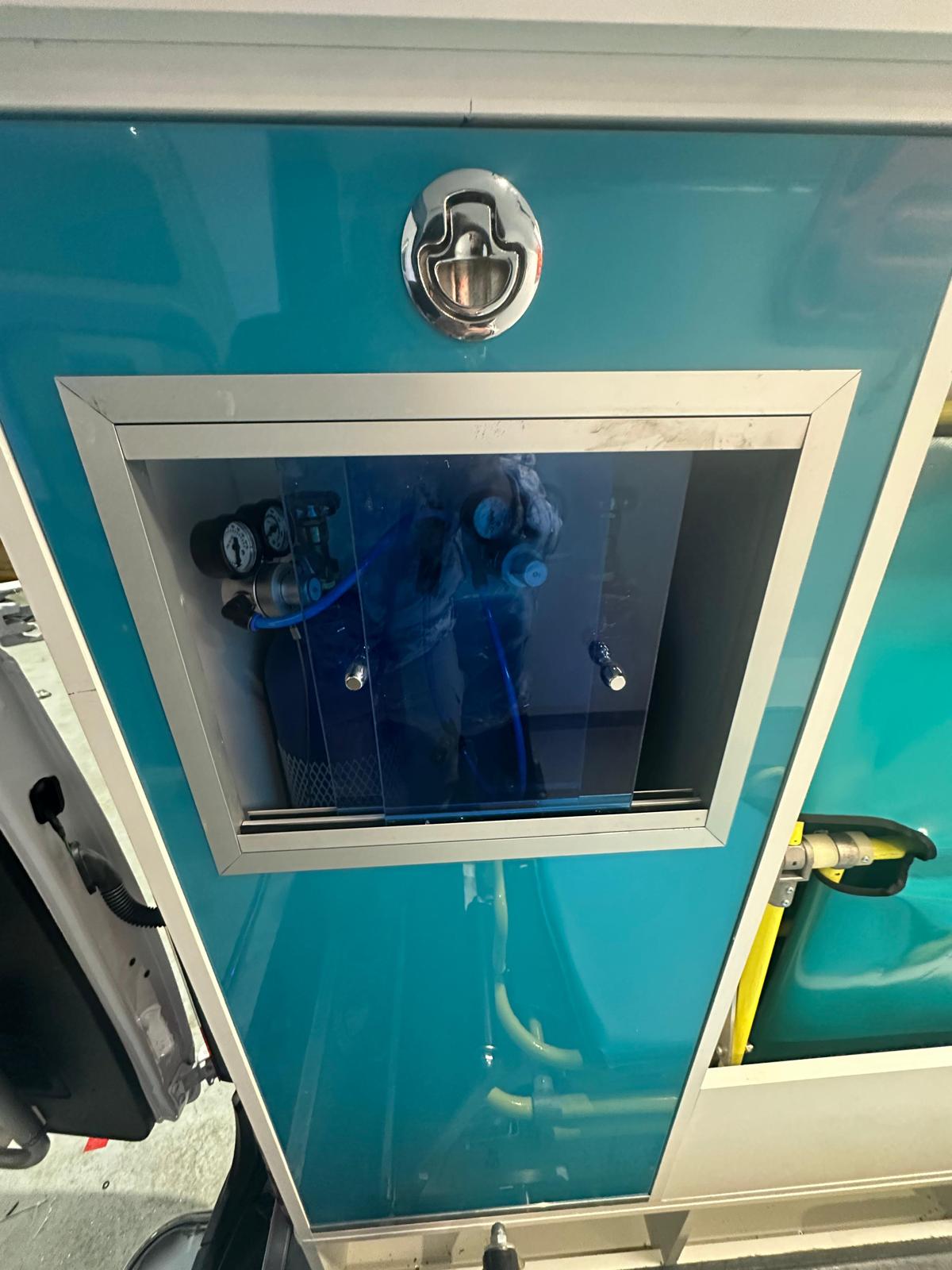

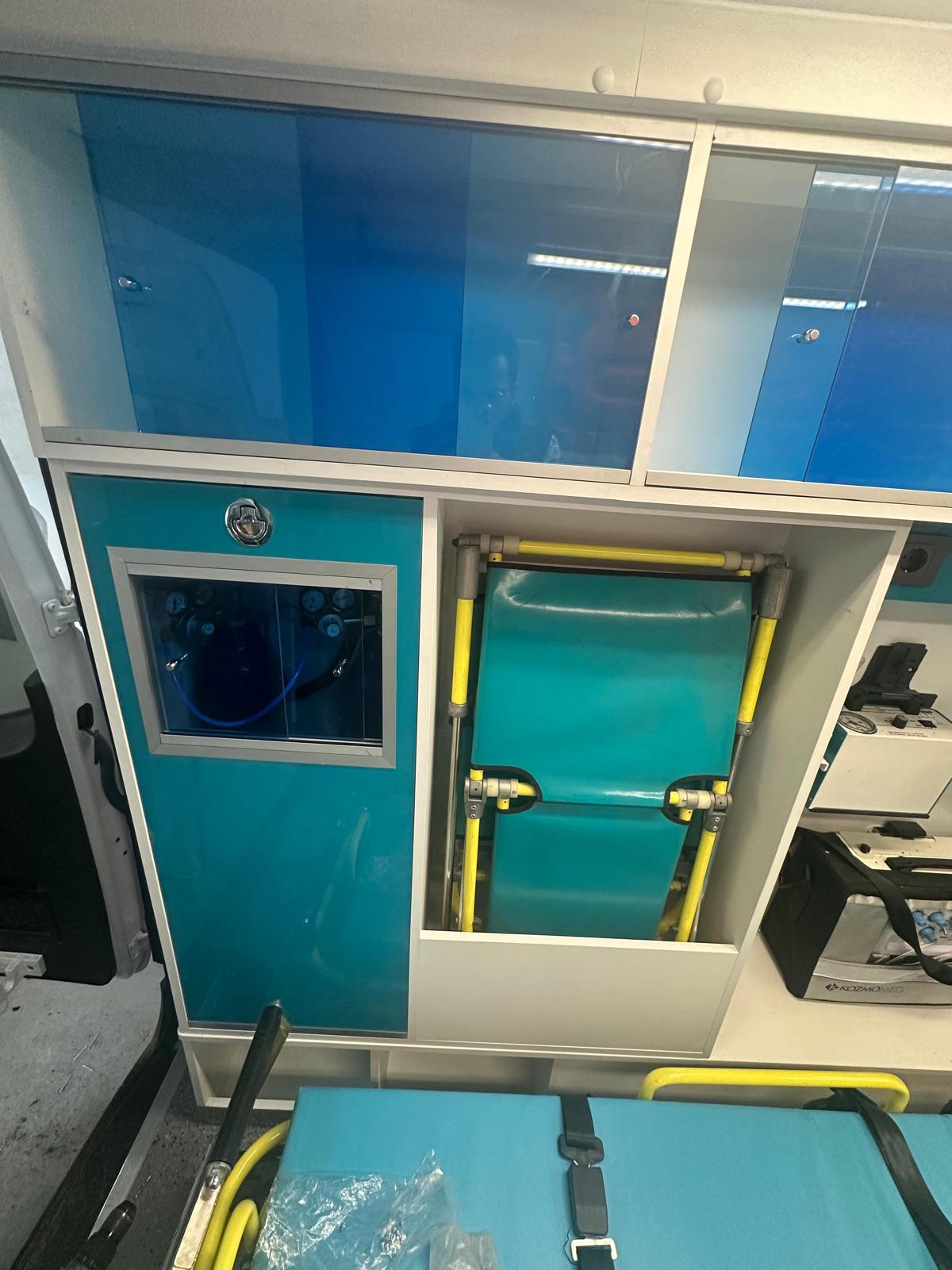

Central Oxygen & Suction GridBursan / Inspital (Turkey)[cite: 222]2x 10L steel oxygen tanks, pressure gauges, flowmeters, high-pressure hoses, and wall sockets[cite: 222]

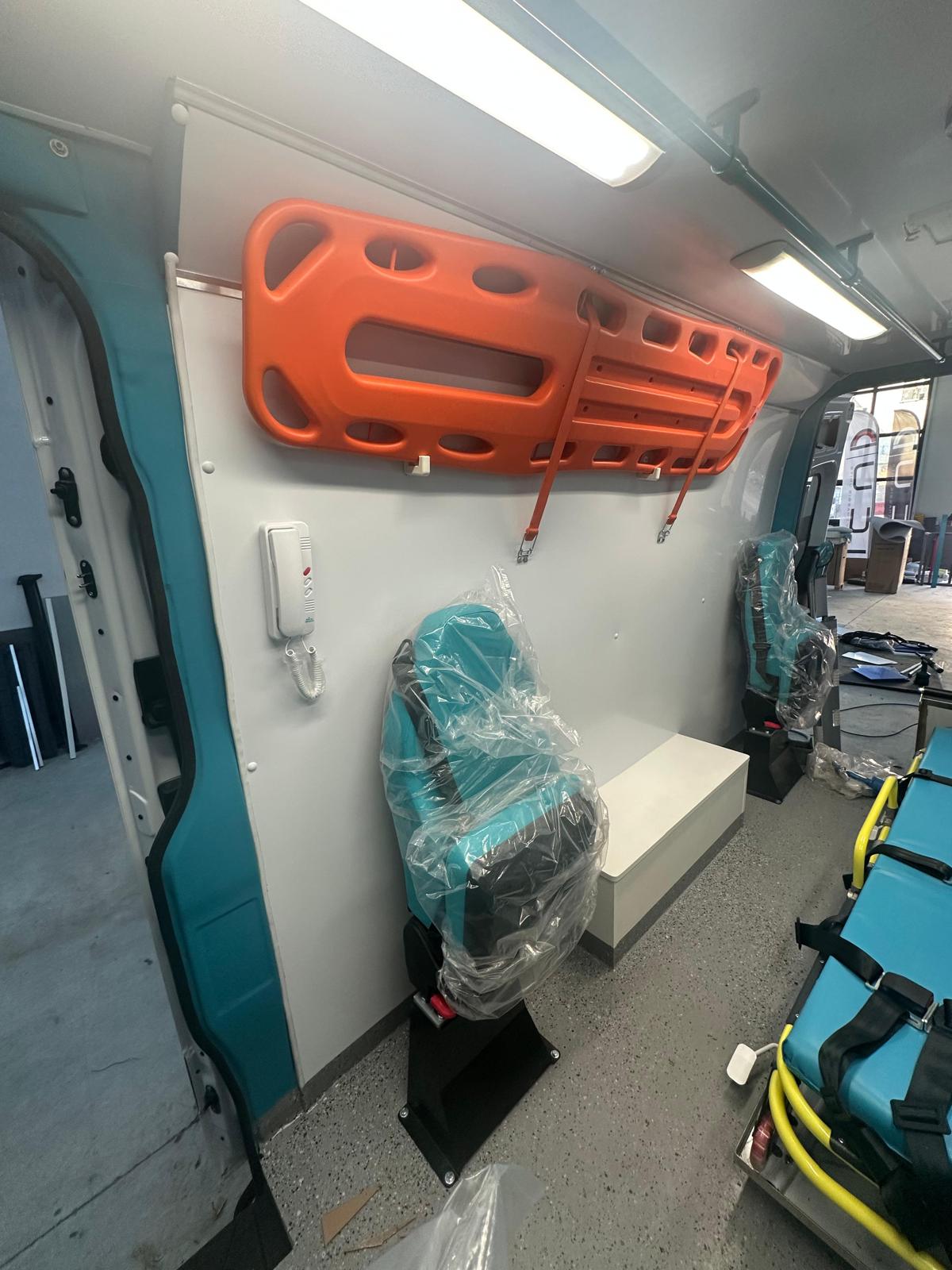

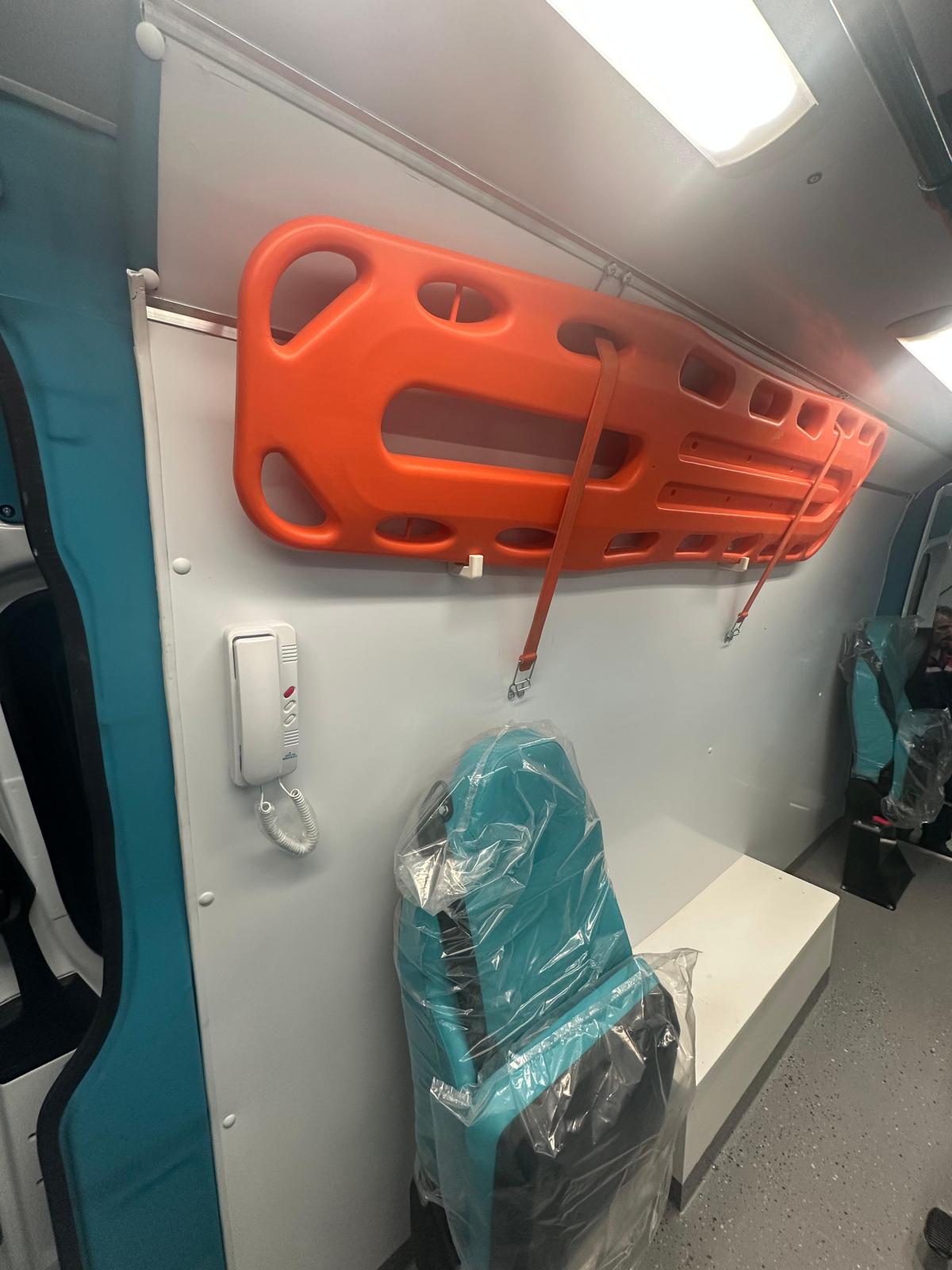

Immobilization EquipmentEMS (Turkey)[cite: 222, 224, 225, 226]HDPE Spine Board, KED Extrication Vest, Traction Splint Set, Neck Collar Set, and 6-piece Inflatable Splint Set[cite: 222, 224, 225, 226]
Emergency Resuscitation BagEMS (Turkey)[cite: 227]Complete emergency set bag with 1L portable O2 unit, 3-blade Laryngoscope set, intubation tubes, airways, and resuscitator[cite: 227]
Specialized Treatment KitsSohngen (Germany) / EMS[cite: 223, 227, 228]Comprehensive Maternity/OB emergency kit, specialized Burn Treatment Set, and Basic Medical Supplies Case[cite: 223, 227, 228]
Diagnostic InstrumentationHonsun / F-Bosch / Medal[cite: 224, 228]Wall-type sphygmomanometer, portable aneroid BP monitor, stethoscopes, diagnostic otoscope/rhinoscope set, and glucometer[cite: 224, 228]

* Technical specifications are based on the Mercedes-Benz Sprinter 417 CDI Advance Life Support (ALS / ICU) Ambulance configuration converted by Infinity Chassis Units Otomotiv[cite: 208, 209].
