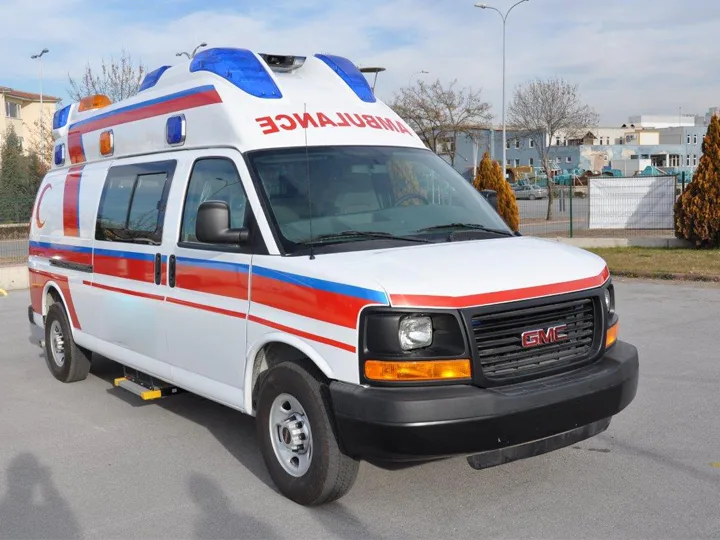

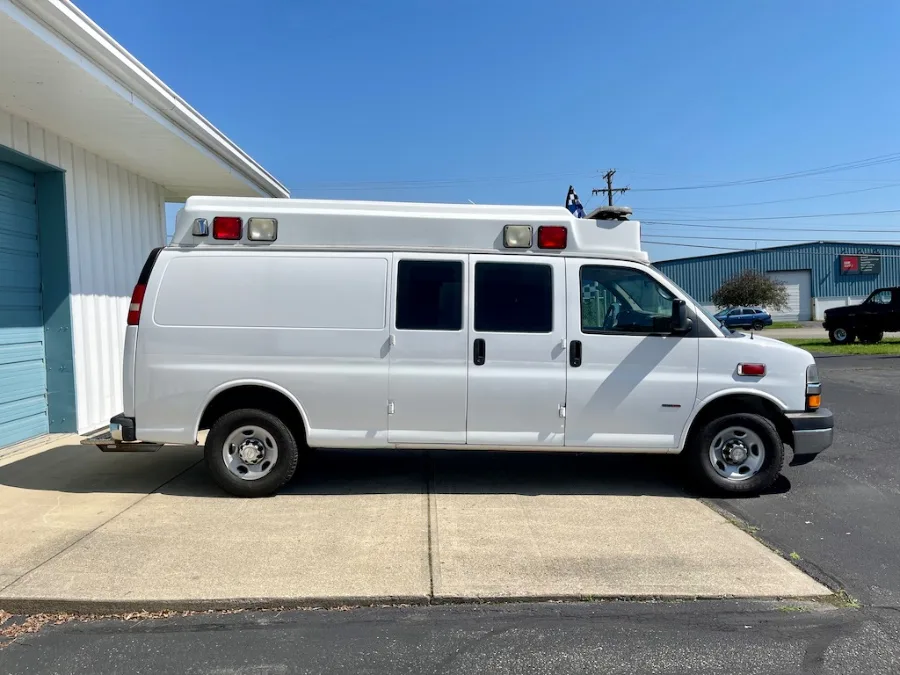

Chevrolet G-Van (G20 / G30) Cargo Ambulance

Classic Heavy-Duty American Ambulance Platform — Engineered for High Durability, Rugged Performance & Emergency Transport Operations

🌟 Core Platform & Operational Highlights

  • Heavy-Duty Chevy Powertrain: Powered by high-torque Small-Block V8 (5.0L / 5.7L) or 6.2L V8 Diesel engines paired with Hydra-Matic heavy-duty automatic transmission.
  • Rugged Unibody / Body-on-Frame Architecture: Reinforced steel body structure offering exceptional torsional strength and high GVWR for heavy medical payloads.
  • High-Capacity Electrical System: Equipped with dual heavy-duty alternators, multi-battery isolating grids, and 12V/110V auxiliary power distribution.
  • Integrated Patient Compartment: Full-length medical cabinet fit-out, non-slip vinyl flooring, and anti-bacterial washable wall paneling.
  • Essential Medical Grid Integration: Wall-mounted suction equipment, central oxygen cylinder storage, and crash-tested stretcher floor lock assembly.

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values

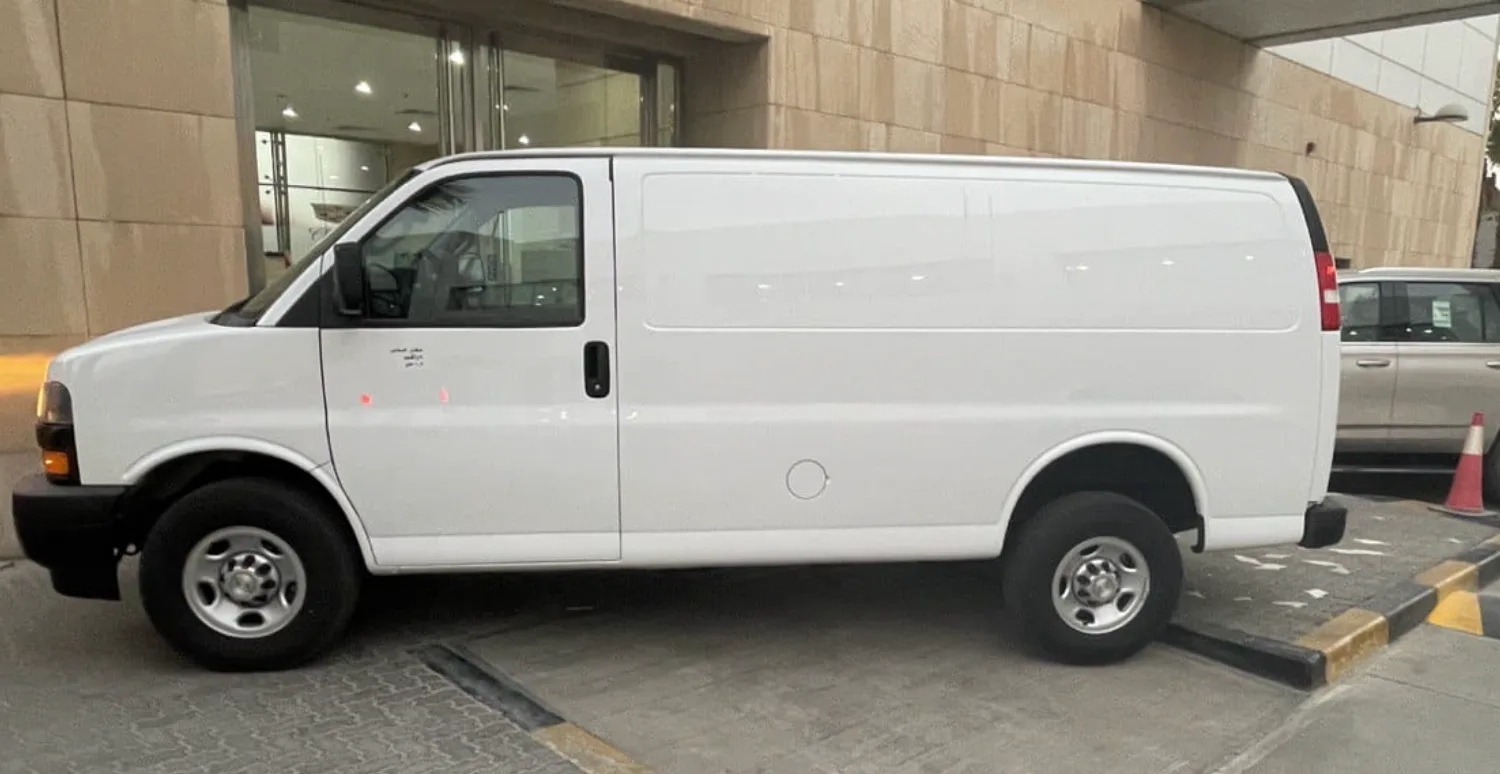

Base Chassis PlatformChevrolet G-Series (G20 3/4-Ton / G30 1-Ton Cargo Van)
Engine Options5.0L (305 cu in) V8 / 5.7L (350 cu in) Small-Block V8 Gas / 6.2L Detroit Diesel V8
Transmission & Drivetrain3-Speed TH350 / 4-Speed TH700R4 (4L60) Heavy-Duty Automatic Transmission (RWD)
Braking & Suspension SystemPower Front Disc / Rear Drum Brakes, Heavy-Duty Front Coil Springs, Rear Leaf Springs & Stabilizer Bar
Gross Vehicle Weight Rating (GVWR)6,600 lbs to 8,600 lbs (2,993 kg – 3,900 kg) depending on G20/G30 configuration

🚑 2. Patient Compartment Architecture & Interior Infrastructure

Structural ComponentMaterial, Build Standard & Engineering Detail
Partition Wall & Cab AccessFull bulkhead partition with sliding plexiglass communication window
Thermal & Acoustic InsulationFiberglass insulation layer backed with heat-reflective acoustic foil lining
Subfloor & Floor FinishHeavy-duty exterior plywood base covered with anti-bacterial, washable heavy-duty commercial vinyl

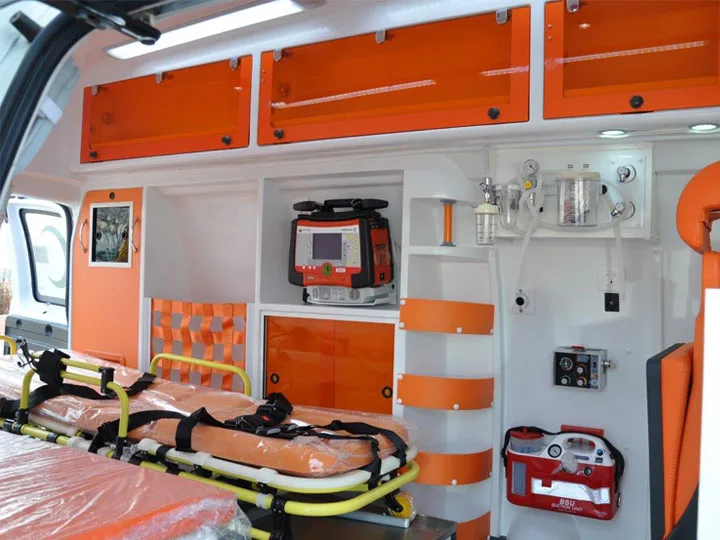

Storage Cabinetry NetworkCustom left-side wall cabinet unit with sliding acrylic doors, lockable drug compartment, and action wall counter

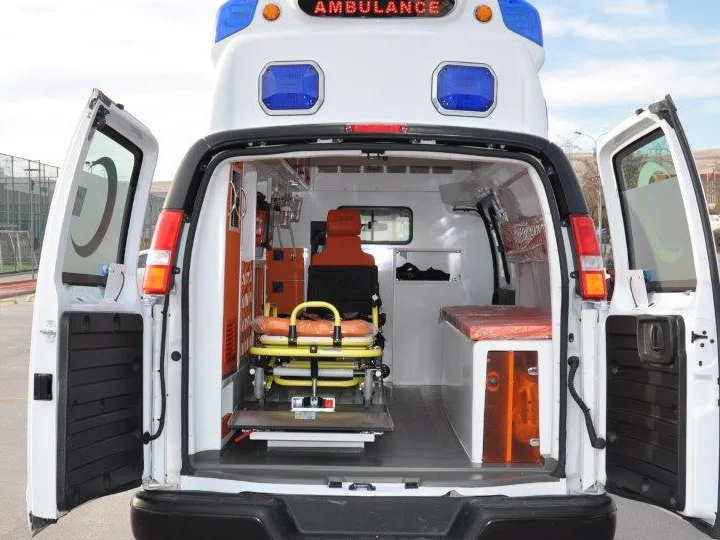

Attendant & Bench SeatingHead-of-stretcher paramedic chair + right-side squad bench with under-seat storage and safety lap belts

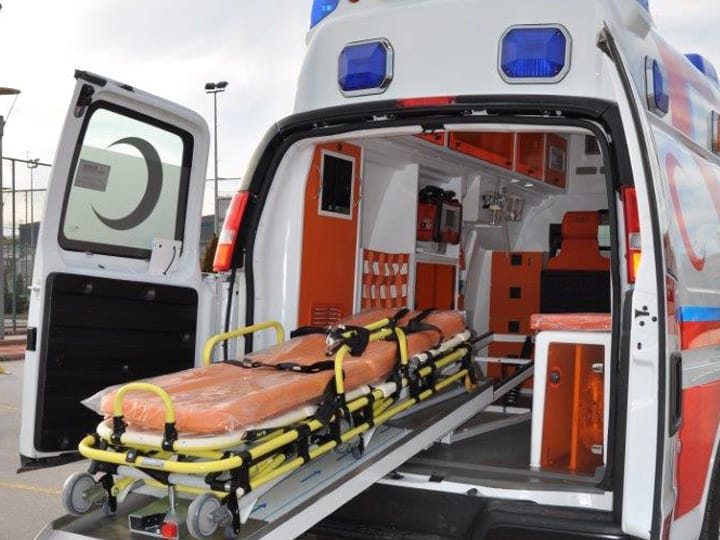

Stretcher Retention SystemFloor-mounted mechanical stretcher lock fastening mechanism for main loading stretcher

🔌 3. Electrical Systems, Climate Control & Emergency Hardware

System Sub-UnitTechnical Configuration
Power Generation & BatteriesHeavy-duty 105A / 160A Alternator + Dual isolated heavy-duty battery grid with battery selector switch
Inverter & Shoreline Input12V DC to 110V/220V AC Power Inverter + External shoreline power inlet socket with connection cable
Electrical Distribution & OutletsCentral master switch control console, circuit breaker panel, 12V DC sockets, and internal 110V/220V AC wall outlets
HVAC & Rear Climate ControlDual front/rear air conditioning system + heavy-duty auxiliary rear cabin hot-water heater unit

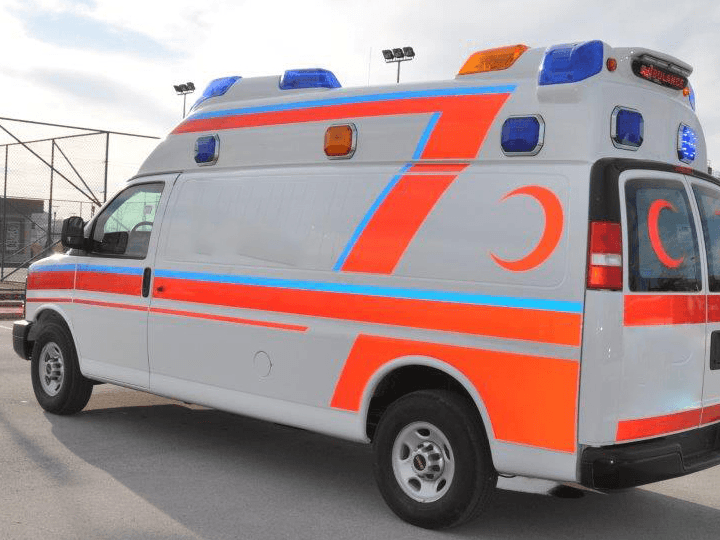

Emergency Signaling & WarningRoof-mounted emergency lightbar (Code 3 / Federal Signal), perimeter strobe lamps, electronic siren with 100W PA speaker
Interior Cabin LightingRecessed dual-intensity ceiling fluorescent/incandescent dome lamps, trauma spotlight, and rear loading lamp

🩺 4. Medical Equipment & Basic Life Support Matrix

Equipment DescriptionBrand / SpecificationOperational Capabilities
Main Stretcher SystemFerno-Washington / Roll-In StretcherMulti-position roll-in main stretcher with mattress, side rails, safety restraint straps, and IV pole
Auxiliary StretchersFerno / Standard EquipmentFoldable stair chair stretcher, aluminum scoop stretcher, and spine board with straps
Suction & Aspirator SystemImpact / Laerdal Suction UnitElectric powered central wall-mounted suction unit + portable battery-operated aspirator
Oxygen Delivery NetworkDual Cylinder Vault + FlowmetersDual M-cylinder oxygen storage compartment, high-pressure regulators, wall-mounted flowmeters, and humidifiers
Defibrillator & Vital Signs MonitorPhysio-Control LIFEPAK / ZOLLPortable biphasic AED / Defibrillator monitor with ECG tracking, SpO2, and NIBP measurement
Resuscitation & Airway KitsBLS / ALS Trauma BagAdult & pediatric BVM manual resuscitators, oral/nasal airways, laryngoscope set, and intubation tubes
Immobilization & First AidStandard Trauma KitCervical collar set, inflatable splint set, KED extrication vest, trauma dressings, and burn sheets

* Technical specifications are based on classic Chevrolet G-Series (G20 / G30) Van conversion standards for Emergency Medical Services (EMS) and Patient Transport Units.

“`
