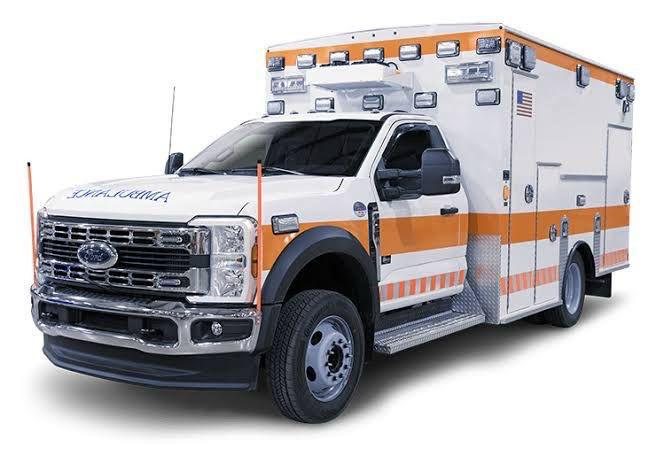

Ford F-550 Super Duty 4×4 Heavy-Duty Box Ambulance

Extreme-Duty 4×4 Tactical & Critical Care Unit — High-Cube GRP Composite Body Engineered for Harsh Environments & Dual Stretcher Operations

🌟 Core Platform & Operational Highlights

  • Power Stroke V8 Turbo-Diesel Engine: High-performance 6.7L V8 Turbo-Diesel engine generating 400 HP paired with a 10-speed automatic transmission.
  • Extreme Off-Road 4×4 Architecture: Rugged 4×4 drivetrain with skid plate protection, auto-locking rear differential, and high-capacity air intake built for demanding environments.
  • GRP Composite Sandwich Body: Premium body featuring 1.5mm GRP skins, 30–100mm XPS insulation core, and 6mm poplar plywood backing for thermal control and high impact resistance.
  • Dual Stretcher Patient Capacity: Spacious interior compartment layout engineered to accommodate up to 2 full-size stretchers simultaneously.
  • Advanced Electrical & Power Subsystems: Dual alternators (170A + 220A), 700 CCA auxiliary battery grid, pure sine wave power inverter, and external 230V shore power input.

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values
Base Chassis PlatformFord F-550 Super Duty Chassis Cab (WB 169″ / 4,303 mm)
Engine & Output6.7L Power Stroke V8 Turbo-Diesel (400 HP Output)
Transmission & Drivetrain10-Speed Automatic Transmission with Selectable 4×4 System
Axle, Differential & Towing3.73 Axle Ratio, Auto-Locking Rear Differential, Integrated Trailer Brake Controller
Gross Vehicle Weight Rating (GVWR)14,000 lbs (6,350 kg) Heavy-Duty Rating
Fuel Capacity & Protection227-Litre (60 Gallon) Fuel Tank, Skid Plate Undercarriage Protection
Overall Vehicle DimensionsLength: 6,759 mm | Overall Height: ~2,055 mm (Chassis) / 2.0 m Body | Track Width: Front 1,731 mm / Rear DRW 2,438 mm

🚑 2. Patient Compartment Architecture & Interior Infrastructure

Structural ComponentMaterial, Build Standard & Engineering Detail
Modular Body ShellGRP Composite Panels (1.5mm GRP skins + 30–100mm XPS insulation core + 6mm poplar plywood core)
Subfloor & Floor FinishSeamless, non-porous antibacterial Epoxy floor coating (slip-resistant, antistatic, and easy to disinfect)
Medical Cabinetry SystemHygienic Yusen PVC Foamboard cabinets (non-porous, moisture-proof, lightweight, and vibration-absorbing)
Internal Cabin LayoutDual Stretcher configuration with central walkway and head-of-stretcher paramedic seats
Driver & Crew Cab Comfort40/20/40 Split Bench, Jet Black cloth trim, power adjustable driver seat, keyless entry & start, rubberized vinyl floor
Rear Access & StepDouble rear doors with integrated pull-down step platform for easy stretcher loading

🔌 3. Electrical Systems, Climate Control & Emergency Hardware

System Sub-UnitTechnical Configuration
Power Generation & BatteriesDual Alternators (170A + 220A = 390A Total) + 700 CCA Auxiliary battery unit
Power Inverter & ShorelinePure Sine Wave DC/AC Power Inverter (12V DC to 220V/240V AC) + External 230V Shore Power Grid input (with 2m cable)
Control Module & OutletsDigital touchscreen Ambulance Control Module panel, internal 230V power outlets, and 12V DC power sockets
HVAC & Auxiliary Heating4-outlet air conditioning blowing system + Webasto auxiliary heating system + roof-type ventilation fan
Emergency Signaling & Audio360° warning lights system, roof lightbar, high-output electronic siren, Public Address (P.A.) speaker, grill/side LEDs, and beacon lights
Interior Ceiling LightingMultiple 12V 18W high-efficiency LED ceiling lights + recessed spotlights for patient examination

🩺 4. Medical Equipment & Dual Stretcher ALS Matrix

Equipment DescriptionBrand / SpecificationOperational Capabilities
Main Stretcher AssembliesDual Main Stretcher Grid2x Heavy-duty roll-in main stretchers with locking floor tracks, adjustable backrests, and side rails
Auxiliary StretchersHeavy-Duty ALS KitFoldable chair stretcher, aluminum break-apart scoop stretcher, and vacuum mattress unit
Defibrillator & Vital MonitorPortable Biphasic MonitorDefibrillator unit with multiparameter ECG, SpO2, NIBP, and external cardiac pacing capability
Transport VentilatorICU Transport VentilatorPortable emergency ventilator with wall mounting bracket, circuit hoses, and ventilation mask
Suction & Aspirator UnitHigh-Vacuum AspiratorHeavy-duty portable electric suction unit with wall charger cradle and canister assembly
Central Oxygen SystemDual Tank Vault + OutletsDual steel oxygen cylinder compartment, pressure regulators, wall flowmeters, and quick-connect sockets
Immobilization & First AidTrauma & Splint SetHDPE spine board, KED extrication device, limb splint sets, cervical collars, and emergency resuscitation bag

* Technical specifications are based on the Ford F-550 Super Duty 4×4 Heavy Duty Box Ambulance platform.

“`
