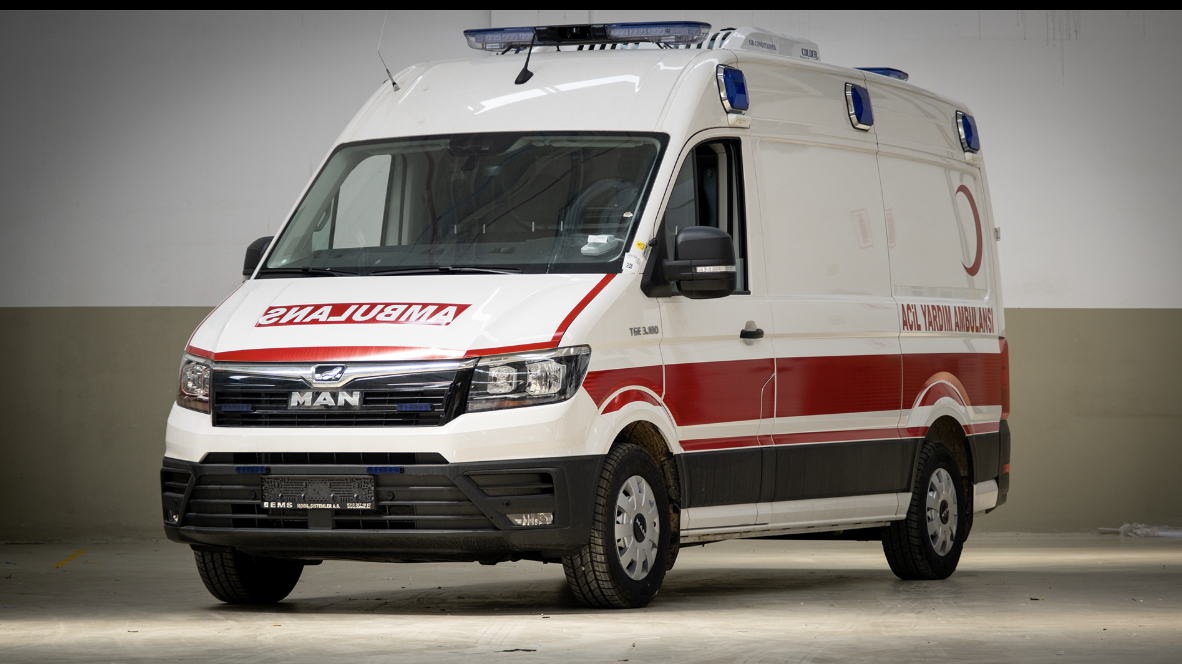

MAN Ambulance 4×4

SKU AMB-MAN-STD Category Brand:

Request a Quote

“`html

MAN TGM / TGE 4×4 Heavy-Duty All-Terrain Ambulance

Heavy-Duty All-Terrain Tactical & Critical Care Transport Unit — Engineered by Infinity Chassis Units

🌟 Engineering & Operational Highlights

  • German Engineering Powerhouse: Built on MAN 4×4 heavy-duty chassis (TGM / TGE series) featuring high-torque MAN D08/D15/2.0 TDI diesel engines and selectable or permanent all-wheel drive.
  • Extreme Off-Road Capability: Mechanical differential locks (front/rear/inter-axle), heavy-duty planetary axles, high ground clearance, and underbody skid protection.
  • Heavy-Duty GRP Modular Body: Lightweight composite GRP sandwich panel box with thermal/acoustic insulation core, engineered to withstand extreme temperatures and vibration.
  • Multi-Patient & ICU Integration: High-cube patient room designed for single or dual stretcher layouts, critical care ventilators, multiparameter monitors, and central oxygen infrastructure.
  • Autonomous Electrical & Power Subsystems: Heavy-duty dual alternators, high-capacity AGM battery bank, pure sine wave power inverter, and IP44 external shoreline charging grid.

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values
Base Chassis PlatformMAN TGM 13.290 / 18.340 4×4 BB or MAN TGE 5.180 / 6.180 4×4 Chassis Cab
Engine & PerformanceMAN D0836 6.9L Inline-6 Turbo-Diesel (290 HP / 1,150 Nm) / MAN 2.0L BiTurbo Diesel (177 HP)
Transmission & Transfer CaseMAN TipMatic Automated 12-Speed / 6-Speed Manual with Off-Road Transfer Case (High/Low Range)
Drive System & DifferentialsSelectable / Permanent 4×4 All-Wheel Drive with Longitudinal & Transverse Differential Locks
Gross Vehicle Weight Rating (GVWR)5,500 kg to 13,000 kg Heavy-Duty Off-Road Rating
Converter & ManufacturerInfinity Chassis Units Otomotiv Ltd. Şti.

🚑 2. Patient Compartment Architecture & Modular Box Fit-Out

Structural ComponentMaterial, Build Standard & Engineering Detail
Modular Box ConstructionSeamless GRP composite sandwich panels (50–80 mm thickness) with XPS insulation core and internal steel subframe
Subfloor & Surface FinishHeavy-duty 18 mm marine plywood base coated with non-slip, anti-bacterial Sika Epoxy / heavy vinyl flooring
Partition Bulkhead WallInsulated partition wall with sliding communication window between driver cab and patient compartment
Medical Cabinetry NetworkVekaplan PVC foamboard cabinet system with sliding acrylic fronts, lockable medication box, and equipment mounting towers
Seating Configuration1x Swivel Paramedic Doctor Chair with 3-point harness + 2 to 3 person attendant bench seat with under-seat storage
Doors & Access FeaturesSide sliding/swing door + Double rear doors with heavy-duty gaskets, stainless steel fittings, and hydraulic tail lift / rear step

🔌 3. Electrical Systems, Climate Control & Emergency Hardware

System Sub-UnitTechnical Configuration
Power Generation & BatteriesDual heavy-duty alternators (28V / 120A) + Dual AGM auxiliary battery system with automatic isolator
Power Inverter & Shoreline3000W Pure Sine Wave Power Inverter/Charger + IP44 220V external shoreline inlet with 15m cable
Control Module & OutletsCAN-bus digital touchscreen central control module; 4x 12V DC sockets + 4x 220V AC internal sockets
HVAC & Auxiliary HeatingHeavy-duty independent tropical A/C system + Eberspächer/Webasto 4kW diesel heater + reversible roof exhaust fan
Emergency Warning Systems360° LED lightbar system, rear warning strobes, front grill LED lamps, and 100W electronic siren with PA speaker
Interior IlluminationDimmable LED ceiling lights (>300 lx at stretcher plane), adjustable trauma spotlight, and blue night lighting

🩺 4. Medical Equipment & ALS Support Matrix

Equipment DescriptionBrand / OriginOperational Capabilities
Main Stretcher AssemblyEMS / Stryker / Ferno10G crash-tested automatic self-loading stretcher with floor locking track, safety belts, mattress, and serum pole
Auxiliary StretchersEMS / SpencerAluminum break-apart scoop stretcher, foldable evacuation stair chair, and heavy-duty vacuum mattress unit
Defibrillator & Patient MonitorMindray / ZOLL / CorpulsBiphasic defibrillator with 12-lead ECG, SpO2, NIBP, EtCO2 monitoring, external pacing, and AED shock mode
Transport VentilatorWeinmann / HamiltonTurbine/gas-driven emergency transport ventilator with wall mount bracket, patient circuit hose, and mask
Suction & Aspirator UnitWeinmann / Oscar BascoralHigh-vacuum rechargeable portable electric suction unit with wall charger cradle and canister assembly
Central Oxygen GridInspital / Bursan2x 10L steel oxygen cylinders, high-pressure regulators, wall-mounted flowmeters with humidifiers, and quick DIN outlets
Immobilization & First AidEMS / SöhngenHDPE spine board, KED extrication device, cervical collars, inflatable splints, BVM resuscitators, and ALS emergency kit

* Technical specifications are based on MAN TGM / TGE 4×4 Heavy-Duty All-Terrain Box Ambulance conversions engineered by Infinity Chassis Units Otomotiv Ltd. Şti.

“`
