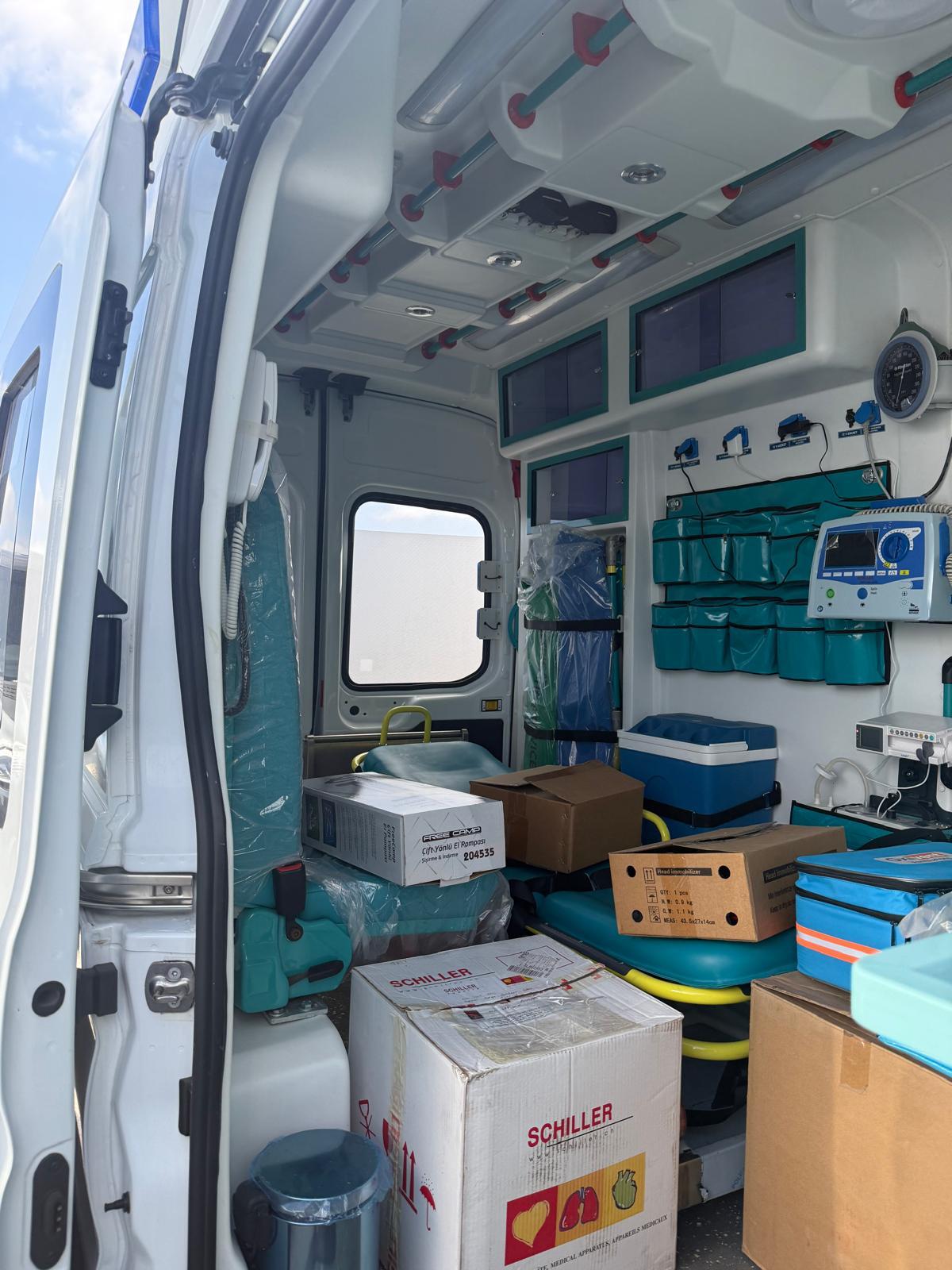

Ford Transit Ambulance Manufacturing
Ford Transit Ambulance - Image 10
Ford Transit Ambulance - Image 11

Ford Transit Ambulance

SKU AMB-FD-TRANSIT-STD Category Brand:

Ford Transit ambulance conversions for emergency response, hospital transfers and intercity patient transport. Infinity Chassis Units adapts the medical interior, equipment storage and vehicle systems to the intended service. Compare the Transit with other van-based ambulance platforms before choosing your configuration.

Compare related options: Mercedes Sprinter Ambulance · Renault Master Ambulance.

Discuss your configuration and request a quotation.

Request a Quote

Ford Transit Gasoline Basic Life Support (BLS) Patient Transport Ambulance (2025/2026 Model)

High-Performance Gasoline Ambulance Platform — Engineered on Ford Transit North America (T150 / T250 / T350) Chassis with Factory Ambulance Prep Package[cite: 143]

🌟 Engineering & Platform Highlights

  • High-Power EcoBoost Gasoline Drivetrain: 3.5L EcoBoost Gasoline V6 engine generating 295 HP and 542 Nm of torque, paired with a 10-speed automatic transmission[cite: 143].
  • Factory Ambulance Prep Package: Features dual heavy-duty AGM batteries (70 Ah each), modified vehicle wiring system, auxiliary fuse panel with high-spec interface connector, and tinted rear/side glass[cite: 143].
  • High Electrical Output: Optional dual alternators (250 Amps each / 500A total) and a 400W AC power outlet for smooth operation of onboard patient support systems[cite: 143].
  • Robust Payload & Platform Configurations: Long Wheelbase (148″ / 3,750 mm) available in Medium Roof and High Roof variants with GVWR options up to 4,309 kg (T350)[cite: 143].
  • Advanced Safety Suite: Equipped with Ford Co-Pilot360™, Pre-Collision Assist, Lane-Keeping System, Rear View Camera with Trailer Hitch Assist, and Roll Stability Control (RSC®)[cite: 143].

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values
Base Chassis VariantFord Transit NA (TV125N – T150 / TV225N – T250 / TV325N – T350 RWD)[cite: 143]
Engine & Performance3.5L EcoBoost V6 Gasoline Engine (295 HP & 542 Nm Torque)[cite: 143]
Fuel Tank Capacity & Emission95 Litres (Gasoline) / Euro 4 Emission Standard[cite: 143]
Transmission & Rear Axle10-Speed Automatic Transmission (10 AT) with 3.73 Limited Slip (LS) Rear Axle[cite: 143]
Drive ModesSelectable Modes: Normal, Eco, Slippery, Tow/Haul[cite: 143]
Suspension & SteeringFront: Independent MacPherson-Strut with Stabilizer Bar; Rear: Leaf Springs with Heavy-Duty Gas Shock Absorbers; Electric Power Assisted Steering (EPAS)[cite: 143]
Wheels & Tires16″ Steel Silver Rims with 235/65R16C All-Season Tires[cite: 143]

📏 2. Vehicle Dimensions, Cargo Space & Weight Ratings

Dimension / RatingMedium Roof (101″) / High Roof (110″) Specification
Wheelbase148″ (3,750 mm) Long Wheelbase[cite: 143]
Overall Dimensions (L x W x H)Medium Roof: 5,981 x 2,474 x 2,509 mm | High Roof: 5,981 x 2,474 x 2,780 mm[cite: 143]
Gross Vehicle Weight Rating (GVWR)T150: 3,933 kg | T250: 4,114 kg | T350: 4,309 kg[cite: 143]
Payload CapacityT150: 1,519 kg | T250: 1,657 kg | T350: 1,835 kg[cite: 143]
Cargo Area Length & HeightFloor Cargo Length: 3,650 mm | Belt Cargo Length: 3,393 mm | Max Cargo Height: 1,829 mm (Medium Roof) / 2,070 mm (High Roof)[cite: 143]
Width Between Wheelhouse & DoorsCargo Width: 1,392 mm | Rear Door Opening Width: 1,567 mm | Rear Door Opening Height: 1,648 mm (Medium) / 1,887 mm (High)[cite: 143]

🔌 3. Electrical Systems, Safety & Ambulance Prep Grid

System Sub-UnitTechnical Configuration
Ambulance Prep PackageDual AGM Batteries (70 Ah each), Modified Vehicle Wiring System, Auxiliary Fuse Panel with High Spec Interface Connector[cite: 143]
Alternator & Auxiliary PowerDual Heavy-Duty Alternators (250 Amps each / 500A total) + 400W AC power outlet[cite: 143]
Driver Assist & Active SafetyFord Co-Pilot360™ (Pre-Collision Assist with AEB, Lane Keeping System, Auto High Beam, Driver Alert, Rear View Camera with Trailer Hitch Assist)[cite: 143]
Vehicle Stability & SecurityAdvanceTrac® with Roll Stability Control™ (RSC®), Hill Start Assist, ABS, Traction Control, SecuriLock® PATS Immobilizer[cite: 143]
Infotainment & Comfort4″ Display stereo with AM/FM/DAB, Bluetooth/USB, 4 speakers, manual A/C, front overhead shelf, power windows & locks[cite: 143]

🩺 4. Basic Life Support (BLS) Medical Equipment Matrix

Equipment CategoryStandard SpecificationOperational Capabilities
Main Patient StretcherRoll-In Loading StretcherHeavy-duty main loading stretcher with floor fastening lock system, adjustable backrest, safety harness, and mattress.
Auxiliary Patient TransportScoop Stretcher / Stair ChairAluminum break-apart scoop stretcher and foldable evacuation stair chair with safety straps.
Immobilization KitSpine Board & SplintsHDPE spine board with head immobilizer, adult/pediatric cervical collar sets, and limb splint set.
Resuscitation & AirwayManual BVM & Airway SetAdult and pediatric manual bag-valve-mask (BVM) resuscitators, Guedel airway set, and manual suction pump.

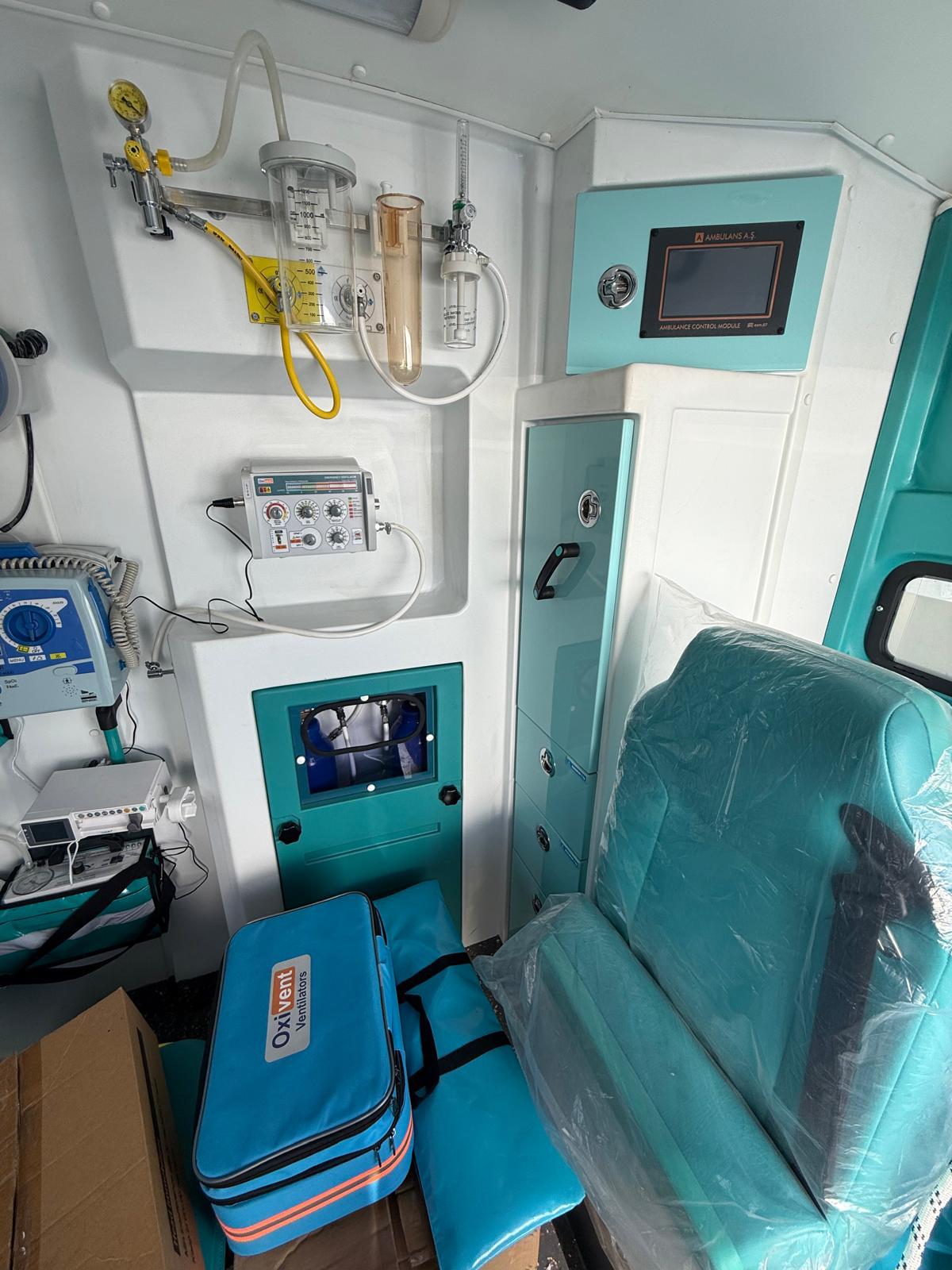

Oxygen Delivery GridCentral Steel O2 SystemDual 10L steel oxygen cylinders, wall-mounted flowmeter with humidifier bottle, high-pressure regulator, and quick-connect outlets.
Suction Unit & First AidPortable Aspirator & Emergency KitBattery-powered portable suction aspirator unit, wall-mounted sphygmomanometer, stethoscope, diagnostic penlight, and BLS first aid case.

* Technical vehicle specifications are based on the official 2025 Ford Transit North America (T150 / T250 / T350) Ambulance Prep Package specification sheet[cite: 143].

“`
