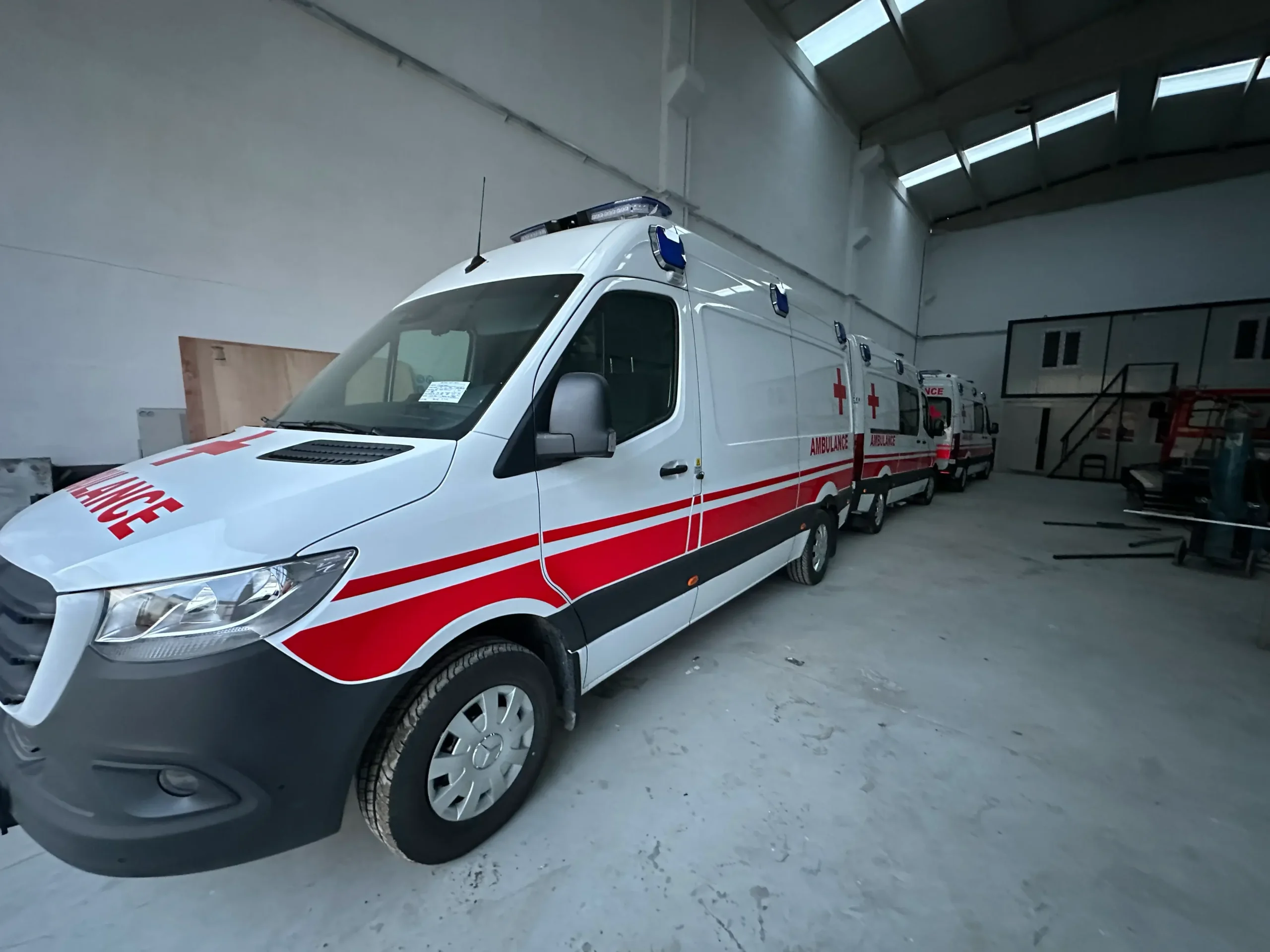

Mercedes Sprinter Ambulance
Mercedes Sprinter Ambulance - Image 2
Mercedes Sprinter Ambulance - Image 3
Mercedes Sprinter Ambulance - Image 4
Mercedes Sprinter Ambulance - Image 5
Mercedes Sprinter Ambulance - Image 6
Mercedes Sprinter Ambulance - Image 7
Mercedes Sprinter Ambulance - Image 8
Mercedes Sprinter Ambulance - Image 9

Mercedes Sprinter Ambulance

SKU AMB-MB-SPR-STD Category Brand:

Mercedes-Benz Sprinter ambulance conversions by Infinity Chassis Units, with patient-compartment planning, medical equipment integration and electrical systems tailored to the intended service. Explore the vehicle configuration and compare a van conversion with a separate box-body ambulance.

Compare related options: Mercedes Box-Type Ambulance · Ford Transit Ambulance.

Discuss your configuration and request a quotation.



Request a Quote

Mercedes-Benz Sprinter 417 CDI Advance Life Support (ALS) Ambulance (2026 Model)

Advanced Life Support & Emergency Response Unit — Engineered by Infinity Chassis Units Otomotiv Ltd. Şti.

🌟 Engineering & Operational Highlights

  • German Engineering Base: Built on the high-performance Mercedes-Benz Sprinter 417 CDI manual transmission chassis.
  • Crash-Tested Safety: 10G crash-tested main stretcher assembly with a 2-moving 5-stage adjustable stretcher platform for maximum patient stability.
  • Hygienic Foamboard Modular Interior: German Vekaplan PVC foamboard cabinet system with locked/unlocked drawers and dedicated equipment mounting towers.
  • Complete Medical Gas Grid: Dual 10L steel oxygen cylinder vault with Inspital high-pressure regulators, flowmeters, and central outlets.
  • Advanced Climate & Power Subsystems: Independent Eberspächer auxiliary cabin heating, Yılkar/Webasto air conditioning, and EMS 12V-220V inverter/rectifier grid.

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values
Base Chassis PlatformMercedes-Benz Sprinter 417 CDI
Transmission & VariantManual Transmission, Advance Life Support (ALS) Unit
Converter & ManufacturerInfinity Chassis Units Otomotiv İthalat İhracat ve Danışmanlık Ltd. Şti.
Compliance & StandardsTSE Standard Compliant Electrical Installation

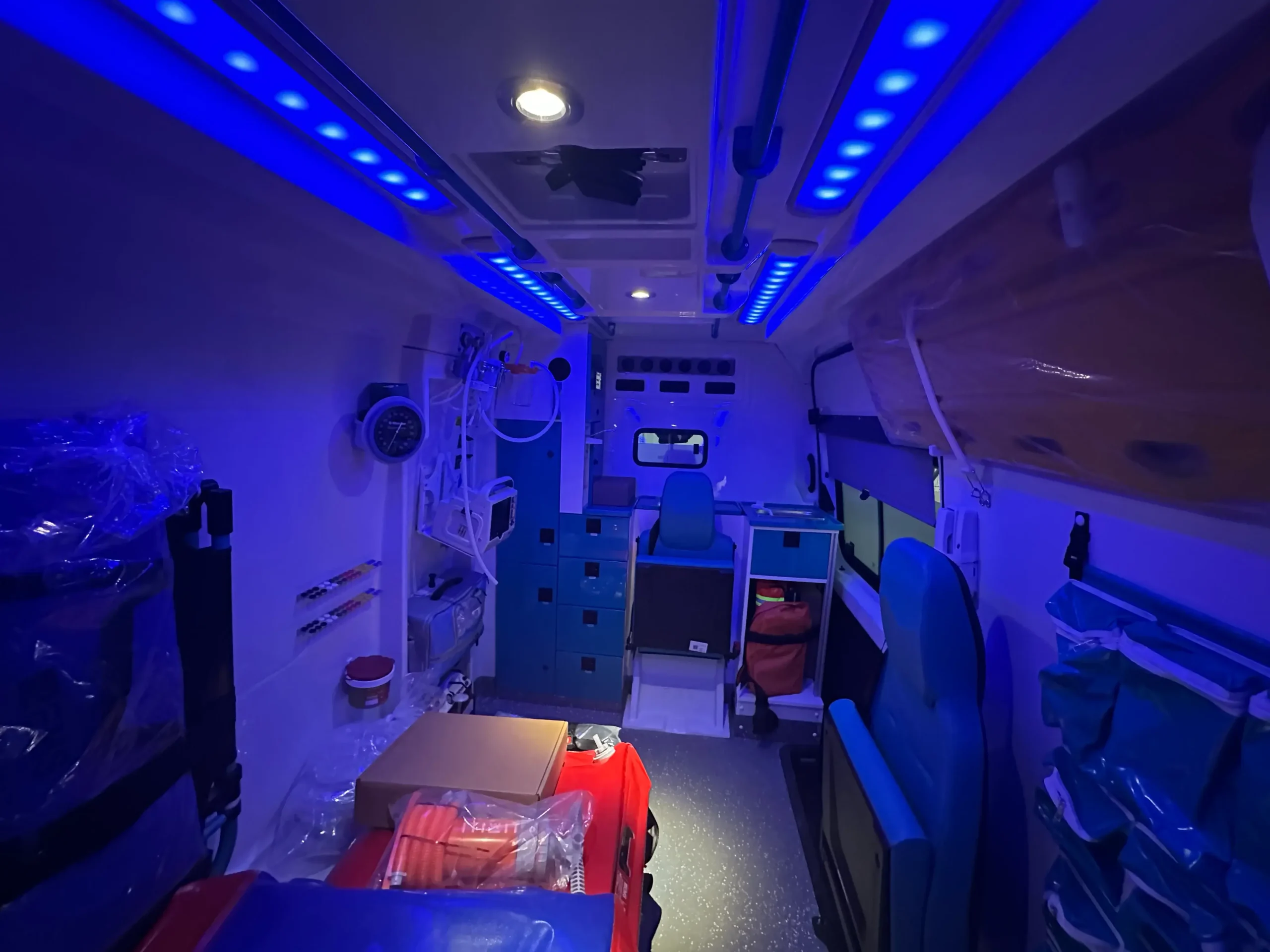

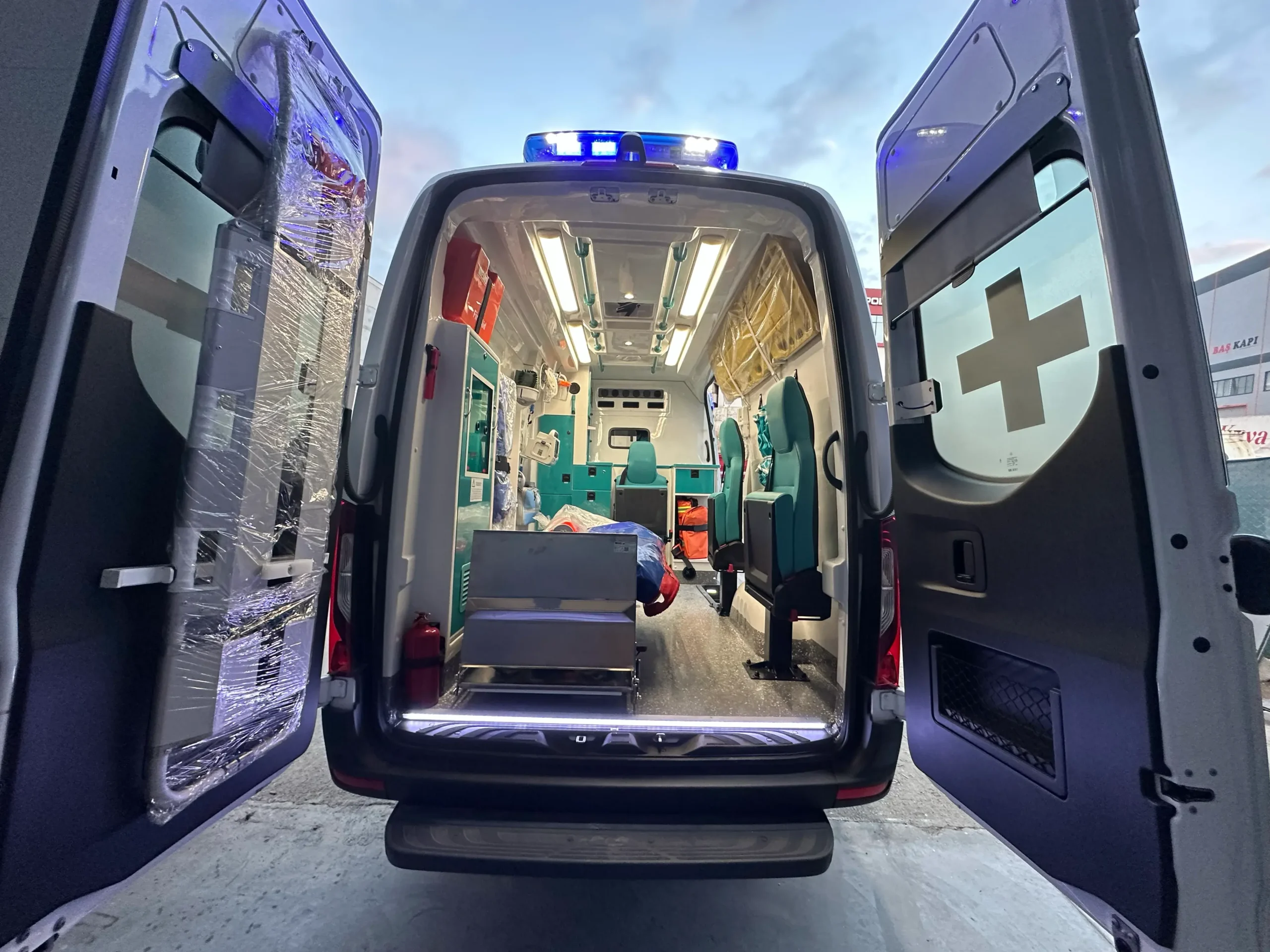

🚑 2. Patient Compartment Architecture & Interior Infrastructure

Structural ComponentMaterial, Build Standard & Engineering Detail
Thermal & Acoustic InsulationElastomeric Rubber Foam insulation with left and right side sheet reinforcements
Subfloor & Flooring Finish16 mm monolithic MDF base with Sika Epoxy floor coating
Internal Wall & Ceiling CladdingABS ready-made ceiling panels, ABS side panel coating, partition flooring coating, and door trim coverings
Medical Cabinetry SystemGerman Vekaplan foamboard cabinet system, EMS foamboard drawer cabinets (1 locked, 3 standard), and dedicated ventilator/defibrillator/aspirator cabinet tower
Seating Configuration1x Separator Cupboard Doctor Chair + 1x Right Side Functional Doctor Chair
Stretcher Platform SystemEMS 2-moving 5-stage adjustable stretcher platform for optimal loading

🔌 3. Electrical Systems, Climate Control & Emergency Hardware

System Sub-UnitTechnical Configuration
Power Inverter & ChargerEMS 12V-220V Power Inverter + EMS 220V-12V Battery Redresor (Charger)
Auxiliary Battery SystemYiğit heavy-duty 2nd auxiliary battery unit
Electrical Infrastructure & OutletsEMS color-coded heat-resistant cables, illuminated master module switch, thermal fuses, 3x 220V T-Plast outlets, and 5x 12V Üstün sockets
External Shoreline Input220V Metece external power input with piece clamp and 2-meter connection cable
HVAC & Auxiliary HeatingYılkar or Webasto patient cabin A/C system (with blowing vents) + Eberspächer independent rear cabin heater
Emergency Warning SystemsArmas front & rear beacon lamps, 4x blue side warning lamps, 2x amber side warning lamps, electronic siren/PA announcement device, and reverse warning buzzer
Cabin Lighting & Radio Setup4x Armas fluorescent lamps, 2x spotlights, 1x Armas address search lamp, Kumel intercom system, and Yaesu radio antenna setup

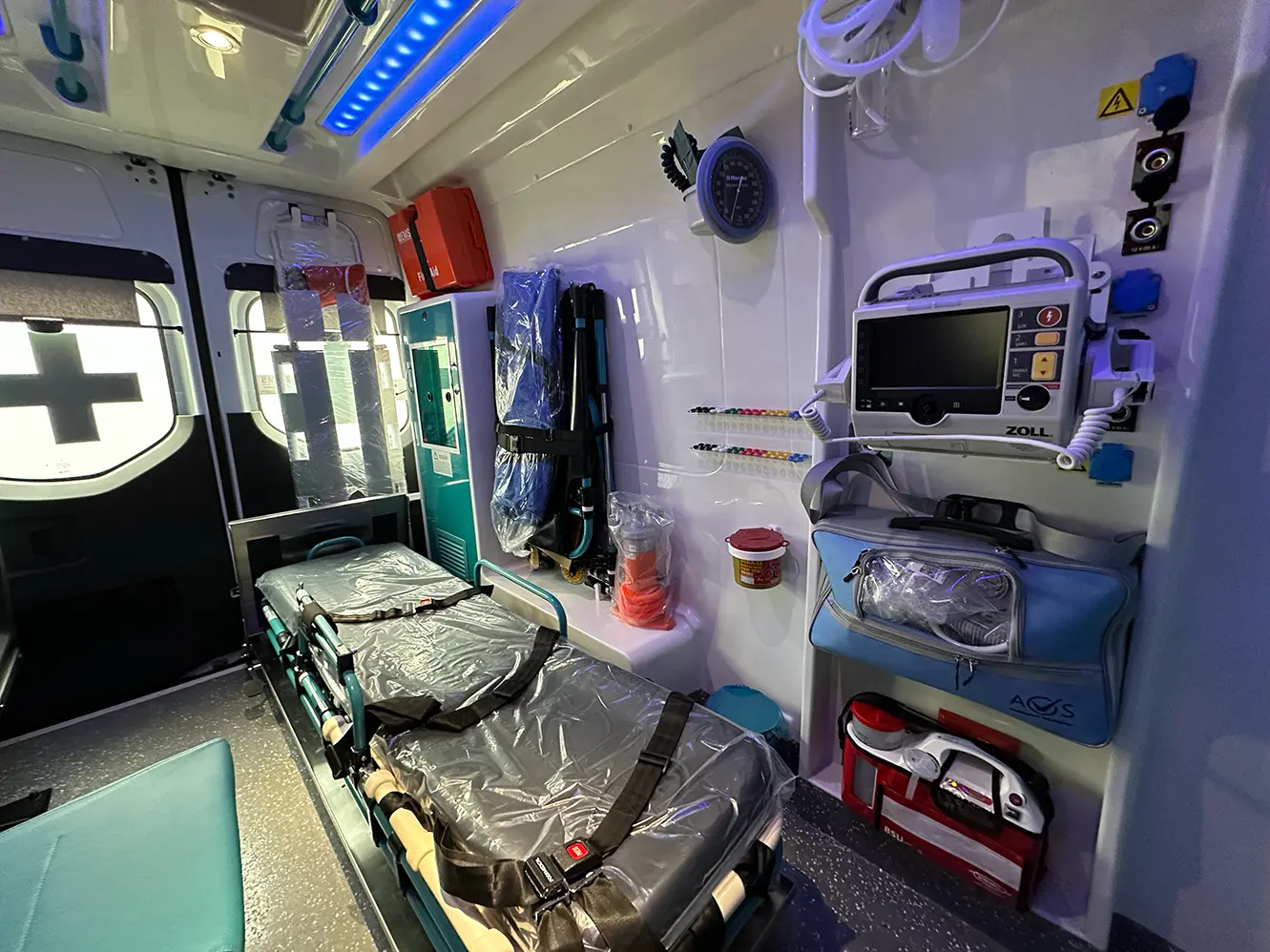

🩺 4. Medical Equipment & ALS Support Matrix

Equipment DescriptionBrand / OriginOperational Capabilities
Main Stretcher AssemblyEMS (Turkey)10G crash-tested main loading stretcher with locking system, cushion, safety belts, shoulder belt, arm support board, and serum strap
Auxiliary StretchersEMS (Turkey)Combination Chair Stretcher, Scoop Stretcher, and Vacuum Stretcher complete with pump and belts
Defibrillator UnitComen (China)Defibrillator device with integrated patient monitor for cardiac monitoring and resuscitation
Transport VentilatorAVS (Turkey)Portable transport ventilator with wall mounting kit, patient circuit hose, and anesthesia mask
Portable Aspirator UnitOscar Bascoral (Italy)High-vacuum portable suction aspirator with wall mounting charging kit

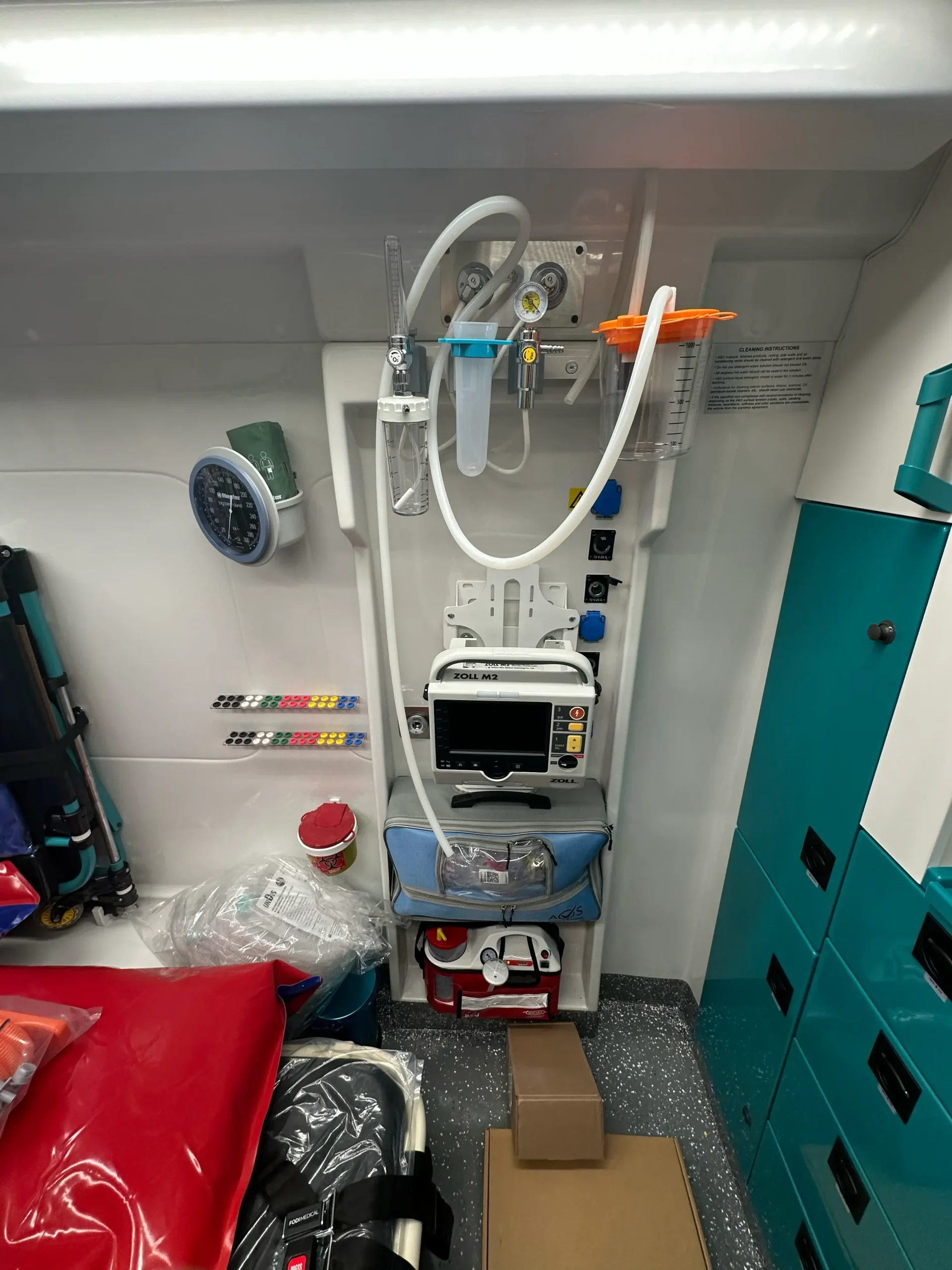

Central Oxygen & Suction GridBursan / Inspital (Turkey)2x 10L steel O2 tubes, pressure gauges, flowmeters, suction cups, high-pressure hoses, O2 regulators, and wall sockets
Immobilization SystemsEMS (Turkey)HDPE Spine Board, KED Extrication Vest, Traction Splint Set, Neck Collar Set, and 6-piece Inflatable Splint Set
Emergency Resuscitation BagEMS (Turkey)1L portable oxygen unit, 3-blade Laryngoscope set, intubation tubes, airways, resuscitator, colorimetric measurement detector, injection set, and Magill forceps
Specialized Treatment KitsSöhngen (Germany) / EMSComplete Emergency Set, Burn Treatment Set (with aluminum burn blanket & wraps), and Basic Medical Supplies Case
Diagnostic InstrumentationHonsun / F-Bosch / MEDALWall-mounted sphygmomanometer, portable aneroid BP monitor, stethoscopes, diagnostic otoscope/rhinoscope set, and Clever Chek glucometer

* Technical specifications are based on the Mercedes-Benz Sprinter 417 CDI Advance Life Support (ALS) Ambulance datasheet converted by Infinity Chassis Units Otomotiv Ltd. Şti.

“`
