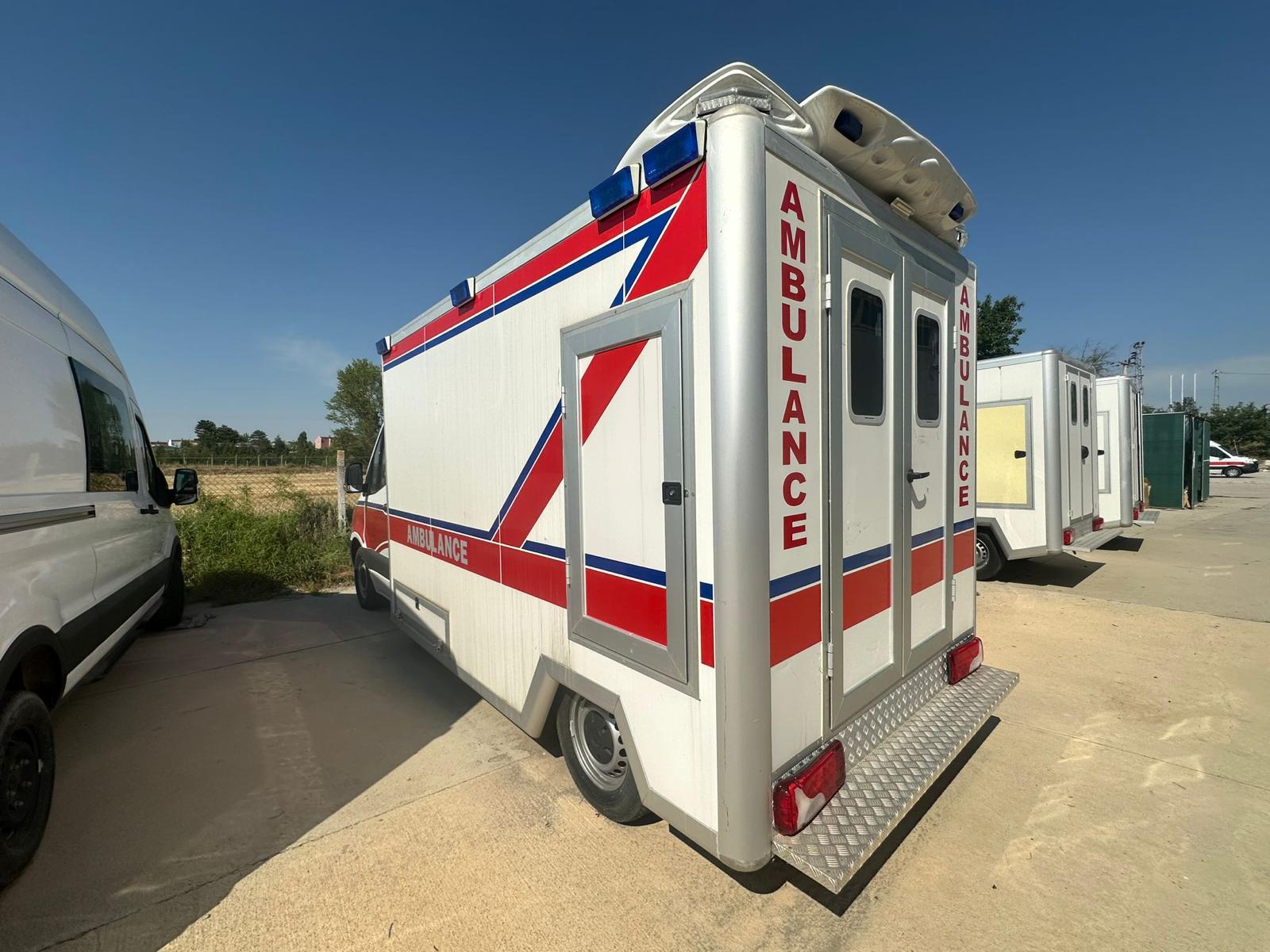

Mercedes Box-Type Ambulance

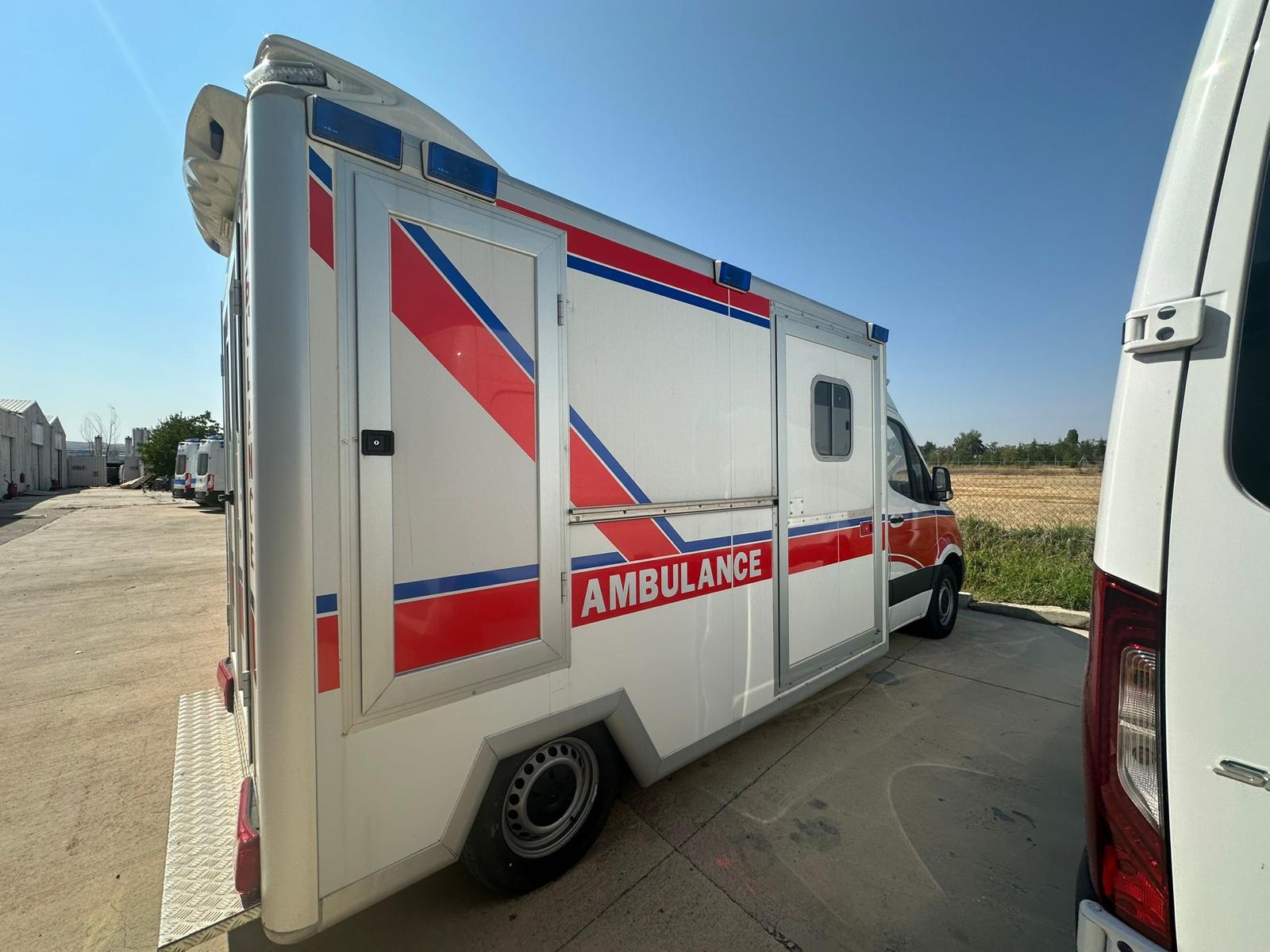

Mercedes Box-Type Ambulance - Image 2
Type 3 Ambulance

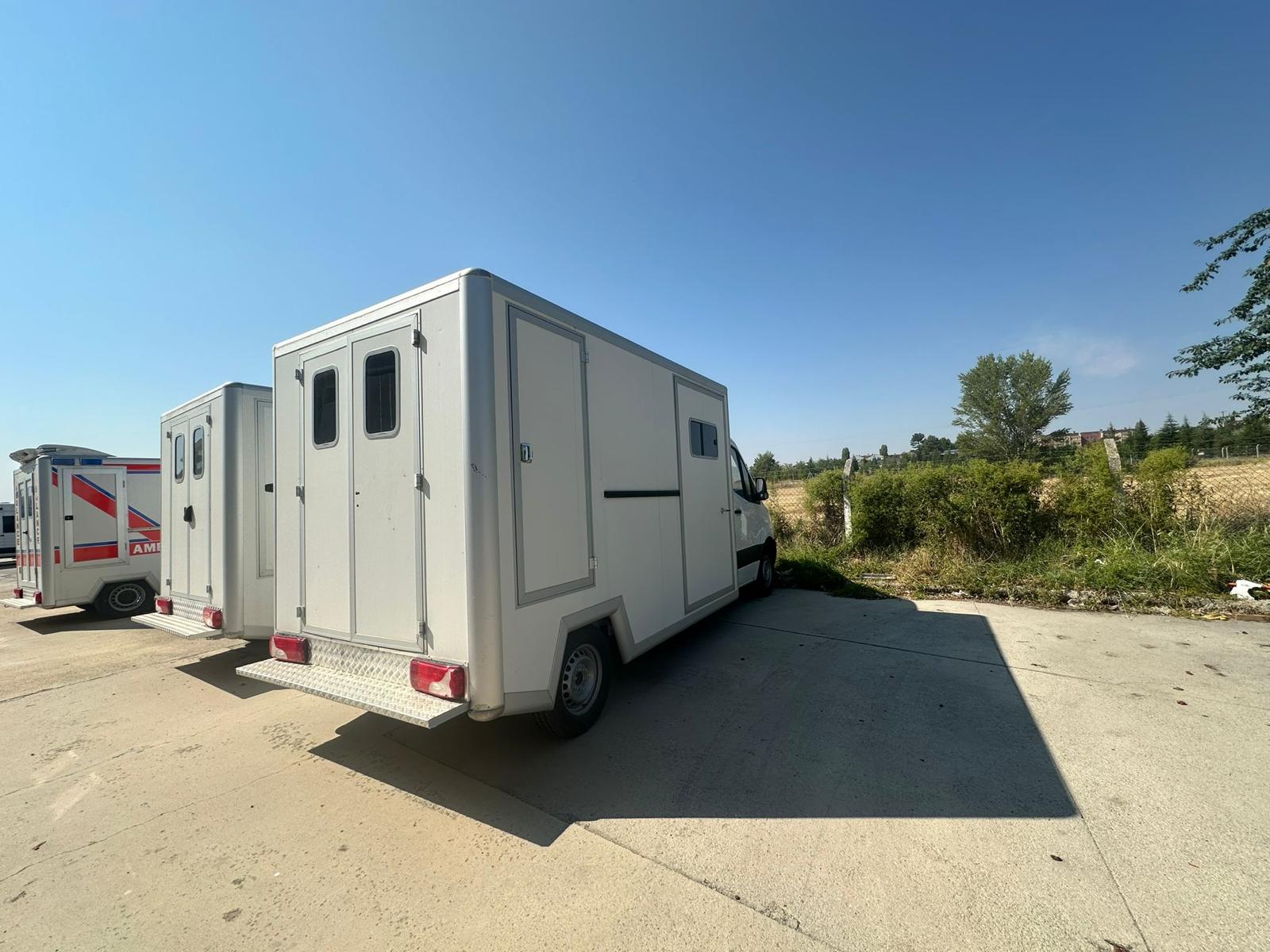

Mercedes Box-Type Ambulance - Image 4
Mercedes Box-Type Ambulance - Image 5
Type 2 Ambulance

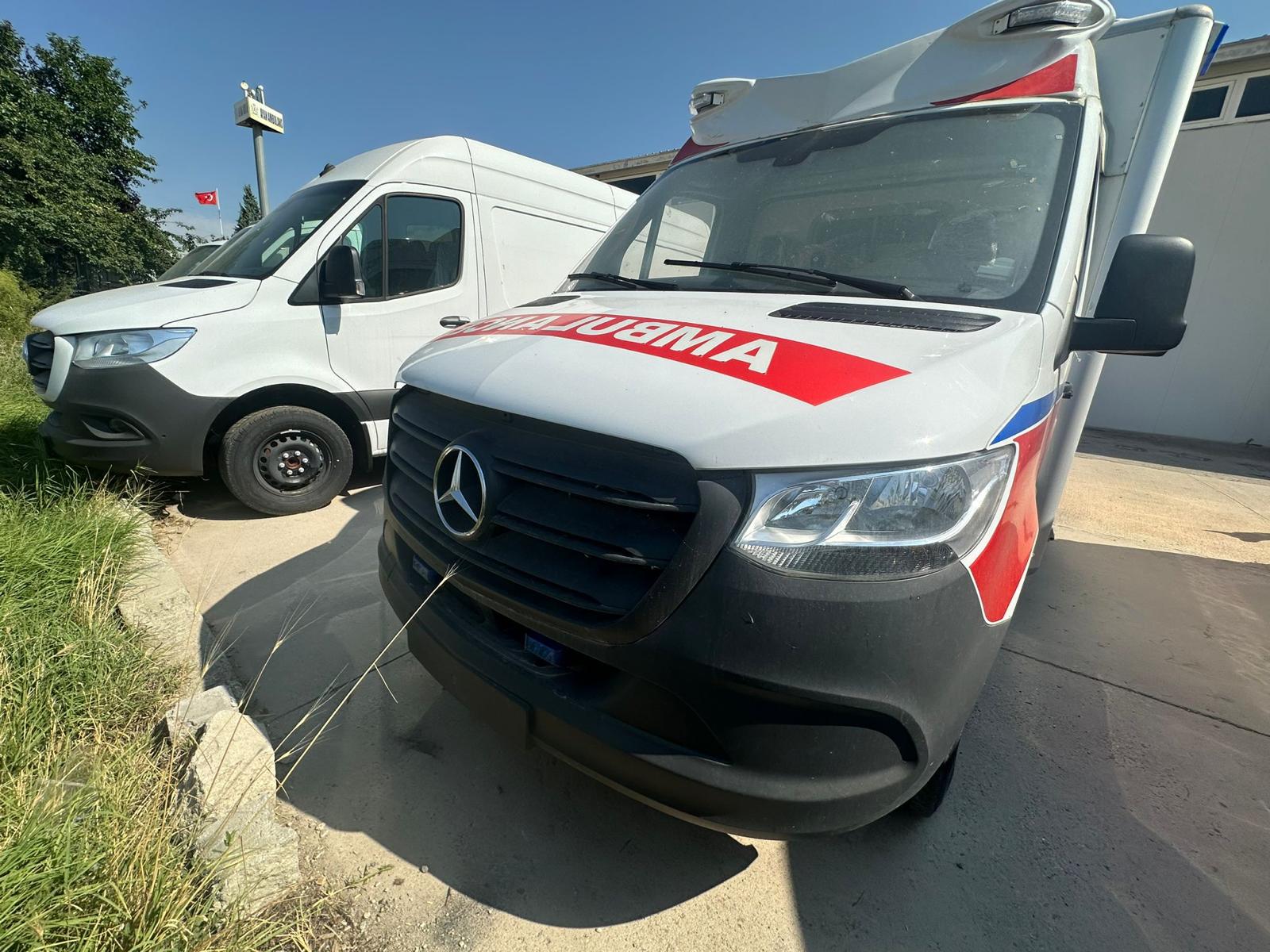

Mercedes Box-Type Ambulance - Image 7

Mercedes Box-Type Ambulance

SKU AMB-MB-BOX-STD Category Brand:

A Mercedes-Benz Sprinter-based ambulance with a separate modular medical box. The box-body layout provides a dedicated patient-care space that can be configured around the required equipment and clinical workflow. Compare this model with the Sprinter van ambulance before specifying your project.

Compare related options: Mercedes Sprinter Ambulance · Toyota Land Cruiser 4×4 Box Type Ambulance.

Discuss your configuration and request a quotation.

Request a Quote

Mercedes-Benz Sprinter Box-Type Intensive Care (ICU / ALS) Ambulance

Heavy-Duty Modular Box Platform — Built by Infinity Chassis Units for Maximum Interior Space, High Thermal Insulation & Critical Intensive Care Operations

🌟 Modular Box Architecture & Engineering Highlights

  • Polyurethane Modular Box Structure: High-strength, lightweight polyurethane sandwich panels providing exceptional thermal (heat/cold) and acoustic noise insulation.
  • Reinforced Corner Construction: Heavy-duty Aluminum 5254 corner trims and ST-37 steel chassis framework bolted using 12mm Grade 9.8 high-tensile bolts (5,480 kg load capacity per bolt).
  • Sliding Rail Medical Mount Grid: Wall-mounted aluminum rail system with customizable sheet-metal device mounts for quick repositioning of ICU equipment.
  • Hygienic Vekaplan Storage: Lightweight, washable Vekaplan PVC foamboard cabinet system with sliding plexiglass doors and lockable medicine drawers.
  • Heavy-Duty Subfloor & Ramp System: 16mm monolithic MDF subfloor coated with anti-bacterial, crack-resistant Sika Epoxy floor finish, plus an integrated aluminum wheelchair roller ramp.

⚙️ 1. Box Body Architecture & Structural Dimensions

Structural ParameterTechnical Details & Dimensions
Base Chassis PlatformMercedes-Benz Sprinter Chassis Cab Platform
External Box ConstructionInsulated Polyurethane Body Panels + Aluminum 5254 Corner & Edge Profiles
Chassis Support FrameworkST-37 Steel Welded Profiles with Stone-Wool Ground Insulation Barrier
Overall Vehicle DimensionsTotal Length: ~6,677 mm | External Box Width: ~2,265 mm | Total Height: ~3,076 mm
Internal Box DimensionsLength: ~3,610 mm | Width: ~1,954 mm | Height: ~1,800 – 2,300 mm
Access & Storage CompartmentsRear double doors (1,268mm opening width), side entrance door with aluminum step, and exterior aluminum spare equipment luggage door

🚑 2. Patient Compartment & Interior Infrastructure

ComponentMaterial & Build Standard
Bulkhead & CommunicationFront partition wall with sliding plexiglass driver window
Flooring System16 mm Monolithic MDF base with Sika anti-bacterial, impact-resistant Epoxy coating
Internal Storage CabinetryVekaplan freefoam PVC cabinetry with sliding plexiglass windows, front counter cabinet, left/right modules, lockable drawers & handwashing basin
Medical Equipment Rail MatrixWall-mounted sliding aluminum rail system holding custom sheet-metal device plates for Infusion Pump, Ventilator, Defibrillator & Aspirator
Stretcher Base UnitStainless-steel alloy backward-sliding guide rail stretcher platform (250 kg load capacity)
Crew Seating ArrangementsCentral doctor chair facing patient stretcher + right-side functional crew chairs with seatbelts

🔌 3. Electrical, Climate & Emergency Signaling Subsystems

System UnitTechnical Specification
Power Management GridICU 12V-220V Power Inverter + 220V-12V Battery Charger (Redresor) + Yiğit 2nd Auxiliary Battery
Shoreline Input & Sockets220V Exterior shoreline inlet with clamp & 2m extension cable, 3x 220V T-Plast sockets, 5x 12V sockets
Climate AutomationRoof-mounted external Air Conditioning unit + Eberspächer Airtronic independent rear cabin heater
Warning Lights & AudioZER aerodynamic roof lightbar, front/rear beacon lights, 6x blue side warning strobe lamps, electronic siren with PA system
Internal Lighting & Comms4x ceiling lights, 2x spotlights, driver-cabin intercom system, Yaesu antenna setup

🩺 4. Medical Equipment & ICU Life Support Integration

Equipment DescriptionSpecification / BrandOperational Capabilities
Main Stretcher SystemTempered Aluminum Alloy (250 kg)Multi-stage hydraulic backrest, single-person operation roll-in stretcher with safety belts & serum strap
Auxiliary StretchersICU Standard EquipmentFoldable Combination Chair Stretcher, Aluminum Scoop Stretcher, Vacuum Stretcher with pump
Defibrillator UnitSchiller Defigard 4000Biphasic defibrillator monitor with SpO2 and ECG tracking for advanced resuscitation
Transport VentilatorKozmovent / AVS ICU VentilatorPortable critical care ventilator unit with wall mounting bracket integration
Infusion & Syringe PumpsAveus Infusion Pump UnitPrecision micro-dosing medication delivery unit mounted on wall sliding rail
Suction & Aspirator SystemMedrag Portable AspiratorHigh-vacuum electric aspirator unit with wall charging bracket mount
Oxygen Distribution Network2x 10L Steel Tanks + Koyuncu OutletsDual oxygen pressure regulators, wall-mounted flowmeters, humidifiers, and suction cups
Immobilization & ExtractionSpine Board, KED, SplintsHDPE Spine Board, KED Extrication Vest, Traction Splint Set, Neck Collar Set, and 6-piece Inflatable Splint Kit
Emergency Kits & SuppliesICU Emergency Bag & OB/Burn KitsResuscitation bag with 1L portable O2, intubation set, specialized Maternity/OB emergency set, and Burn Treatment Set

* Technical specifications are based on the Mercedes-Benz Sprinter Box-Type Intensive Care (ICU) Ambulance engineered by Infinity Chassis Units.
