Iveco Daily Ambulance

SKU AMB-IV-DAILY-STD Category Brand:

Iveco Daily ambulance conversions for emergency medical services and patient transfer. Infinity Chassis Units plans the medical cabin, equipment installation and onboard systems around the project requirements. Compare the Daily platform with the Sprinter and Renault Master ambulance alternatives.

Compare related options: Mercedes Sprinter Ambulance · Renault Master Ambulance.

Discuss your configuration and request a quotation.

Request a Quote

Iveco Daily Advance Life Support (ALS) Ambulance

Heavy-Duty European High-Cube Emergency Unit — Engineered on C-Section Ladder Chassis for Maximum Volume, Heavy Payload & Intensive Care Operations

🌟 Core Platform & Operational Highlights

  • Industrial C-Section Chassis Strength: Built on Iveco’s truck-derived C-section steel frame for high torsional rigidity and heavy-duty GVWR payload ratings (3.5t to 7.2t).
  • High-Output FIC 3.0L Heavy-Duty Diesel: Powered by the 3.0L FIC Heavy-Duty Diesel engine producing up to 180 HP / 430 Nm, paired with 6-speed manual or Hi-Matic 8-speed automatic.
  • Spacious High-Cube Patient Cabin: Up to 18 m³ internal cargo volume allowing full standing height (1.9m–2.1m) and dual stretcher / ICU equipment integration.
  • Comprehensive Thermal & Acoustic Barrier: Polyurethane spray foam / elastomeric rubber insulation with washable, anti-bacterial ABS side panels and seamless epoxy floor.
  • Heavy-Duty Electrical & Medical Grid: Dual alternators, 2000W pure sine inverter, 220V shoreline input, dual 10L oxygen cylinders, and EN 1789-compliant 10G crash-tested stretcher base.

⚙️ 1. Drivetrain, Chassis & Mechanical Performance

Engineering ParameterTechnical Specification & Values
Base Chassis PlatformIveco Daily 35S / 50C / 70C Panel Van or Chassis Cab
Engine Options2.3L F1A Turbo-Diesel (136–156 HP) / 3.0L F1C Heavy-Duty Turbo-Diesel (180–210 HP / 430–470 Nm)
Transmission & Drivetrain6-Speed Manual / Hi-Matic 8-Speed Torque-Converter Automatic Transmission (RWD / 4×4 option)
Gross Vehicle Weight Rating (GVWR)3,500 kg to 7,200 kg Heavy-Duty Class
Suspension & BrakingFront: QUAD-LEAF / QUAD-TOR Independent Suspension; Rear: Mechanical Leaf Springs / AIR-PRO Pneumatic Suspension; 4-Wheel Disc Brakes with ABS, EBD & ESP9
Fuel Tank Capacity70L / 90L Diesel Tank + 20L AdBlue Tank (Euro 6d / Euro VI compliant)

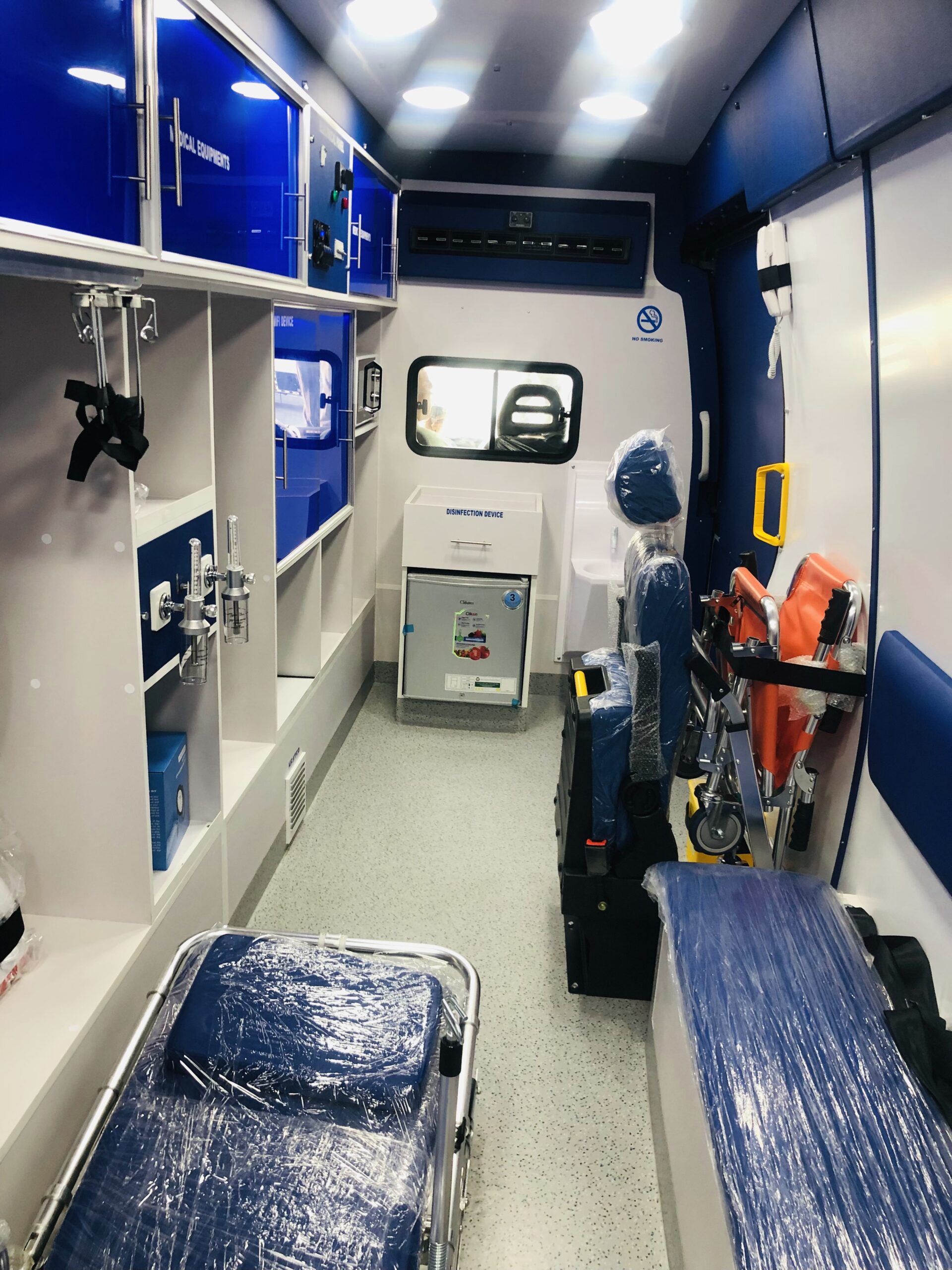

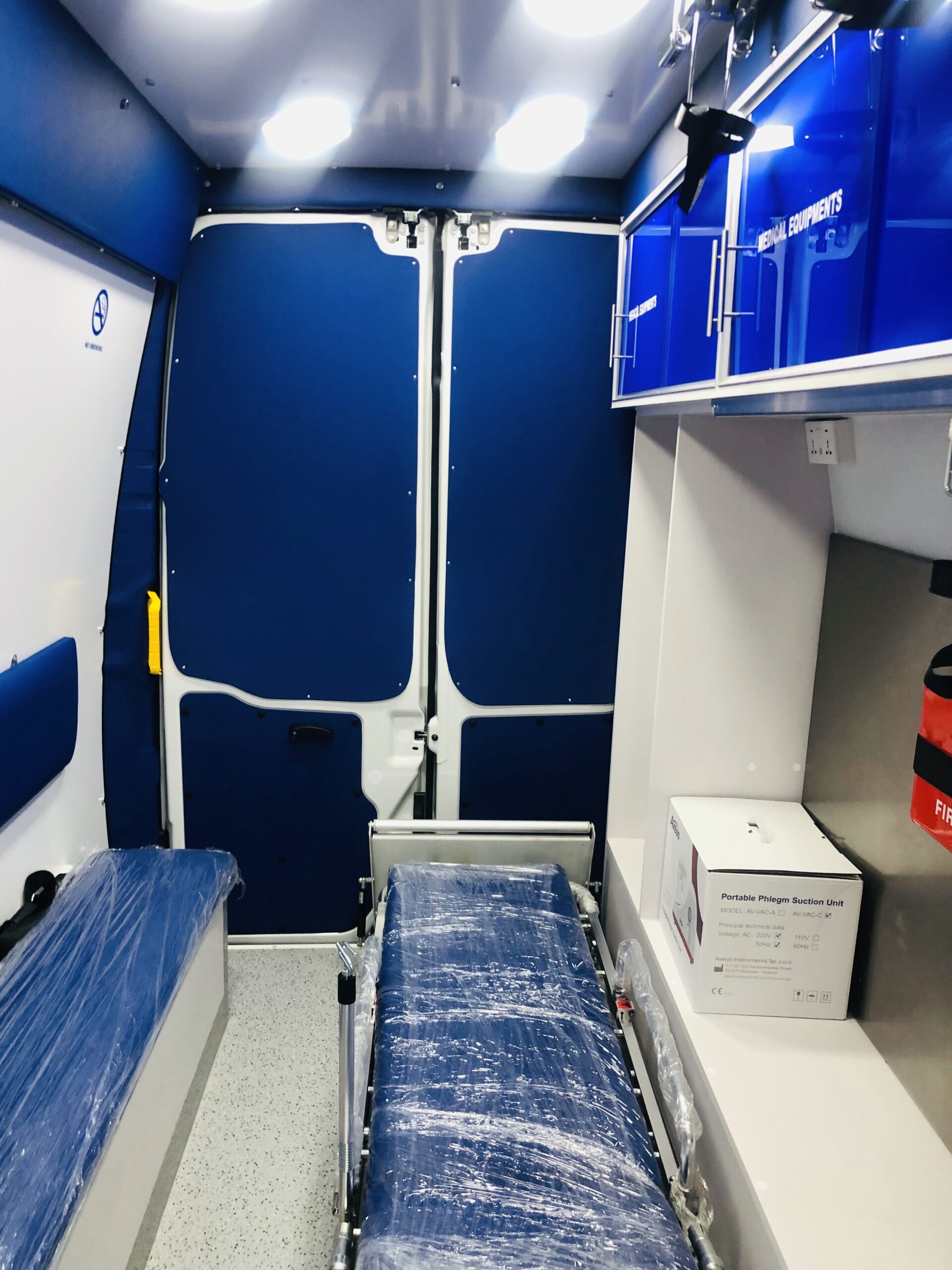

🚑 2. Patient Compartment Architecture & Interior Infrastructure

Structural ComponentMaterial, Build Standard & Engineering Detail
Internal Cabin DimensionsLength: 3,540–4,680 mm | Width: 1,740 mm | Height: 1,900–2,100 mm (Full Standing Height)
Thermal & Acoustic BarrierSelf-extinguishing polyurethane spray insulation + elastomeric rubber foam panels with thermal foil layer
Subfloor & Flooring SurfaceMonolithic 16mm marine plywood base coated with anti-bacterial, non-slip, liquid-tight Sika Epoxy or heavy-duty vinyl
Wall & Ceiling CladdingSeamless thermoformed ABS panels / Vekaplan PVC foamboard walls; easy to clean and disinfectant-resistant

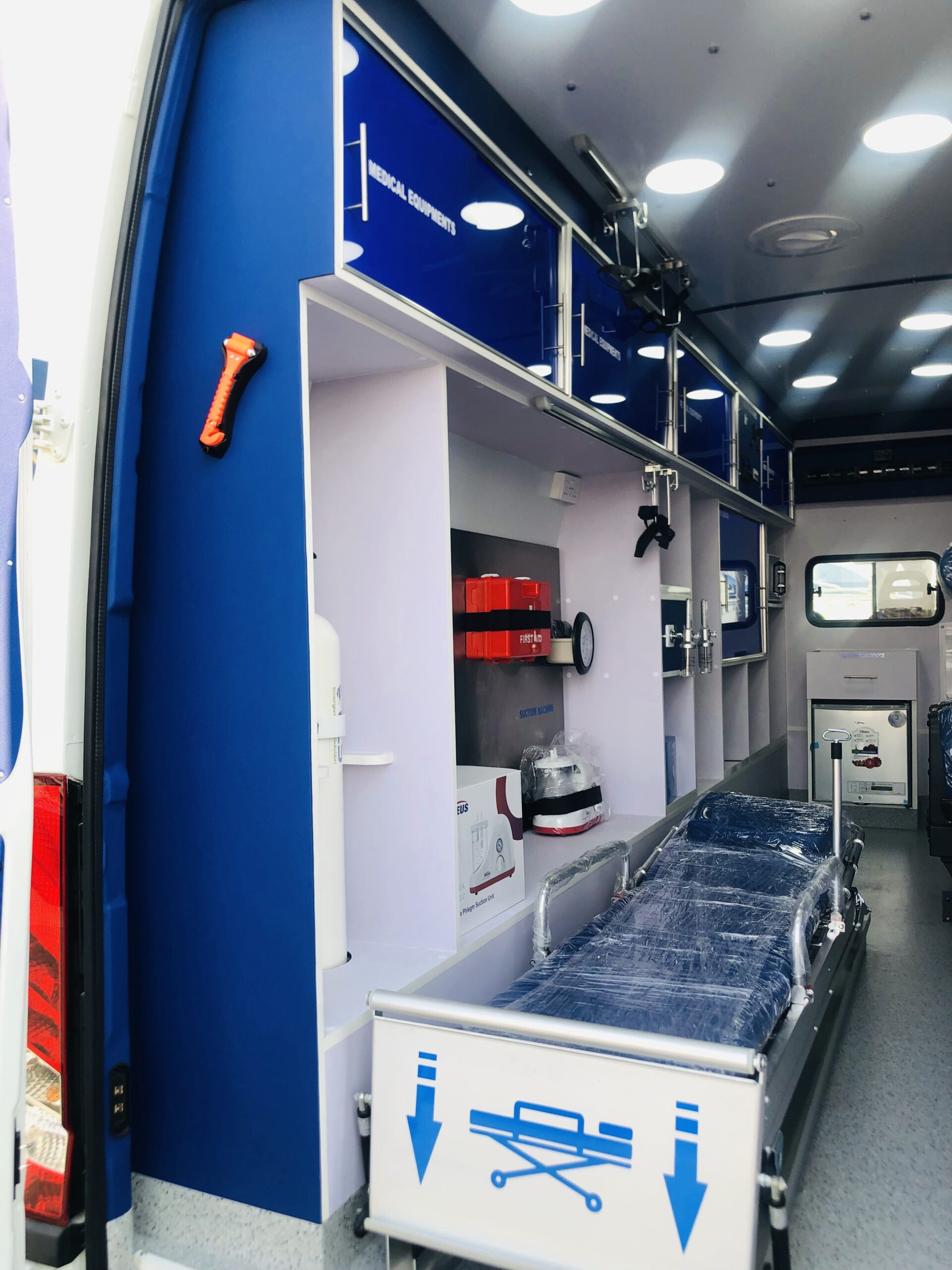

Medical Cabinetry NetworkGerman PVC foamboard cabinets with sliding acrylic doors, lockable medication vault, and equipment mounting towers

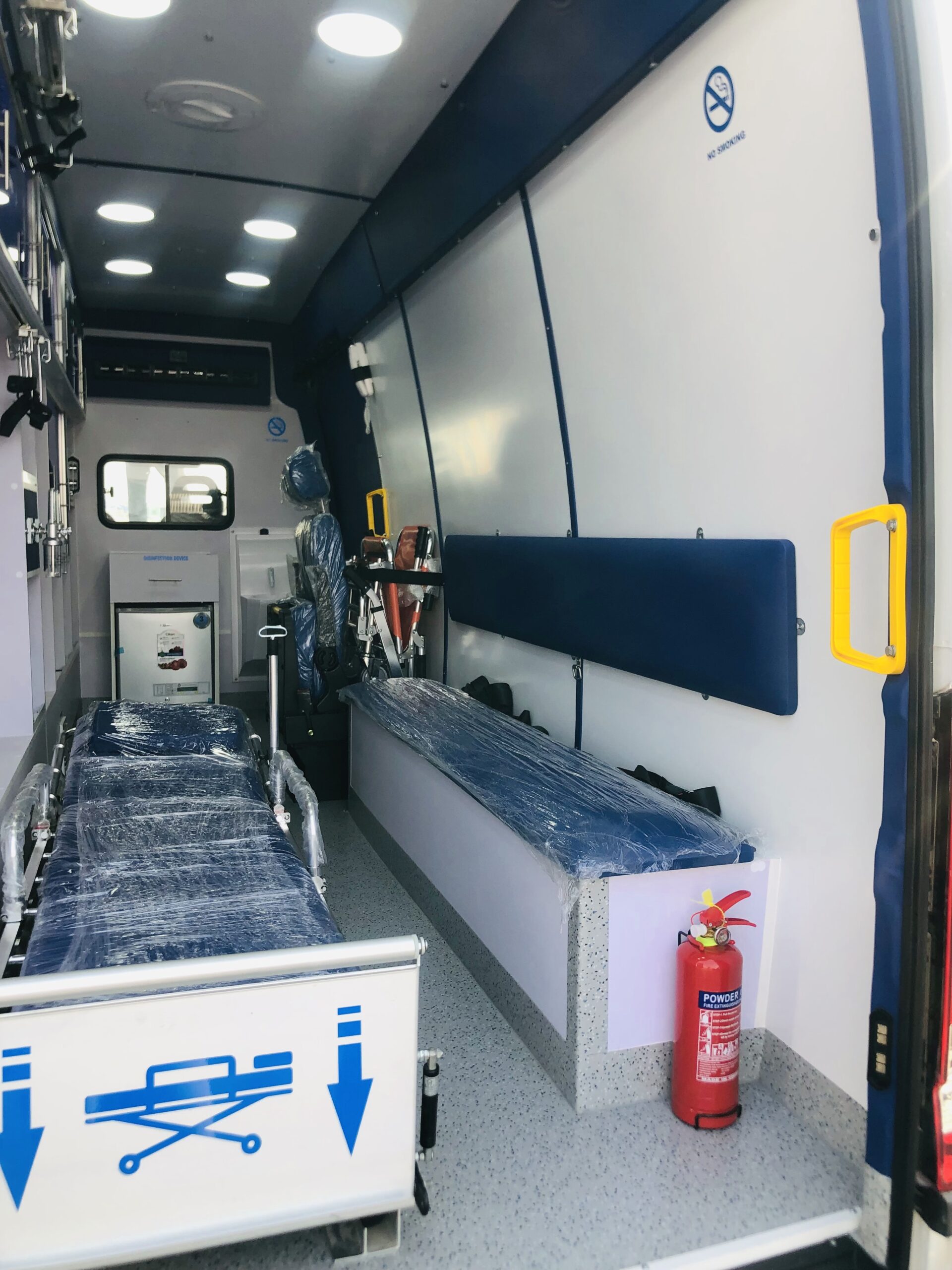

Seating Configuration1x Swivel Paramedic Seat at head of stretcher with 3-point harness + 2-seat side bench with under-seat storage

🔌 3. Electrical Systems, Climate Control & Emergency Hardware

System Sub-UnitTechnical Configuration
Power Generation & Battery GridDual Alternators (180A + 210A) + Heavy-duty dual battery isolator system (Starter + 100Ah AGM auxiliary battery)
Power Inverter & Shoreline2000W Pure Sine Wave Inverter (12V DC to 220V AC) + IP44 220V external shoreline connection with 15m cable
Control Module & OutletsCAN-bus digital touchscreen central control panel; 4x 12V DC sockets + 4x 220V AC internal sockets
HVAC & Auxiliary HeatingIndependent rear cabin A/C blowing unit + Webasto/Eberspächer 4kW diesel auxiliary heater + roof extractor fan

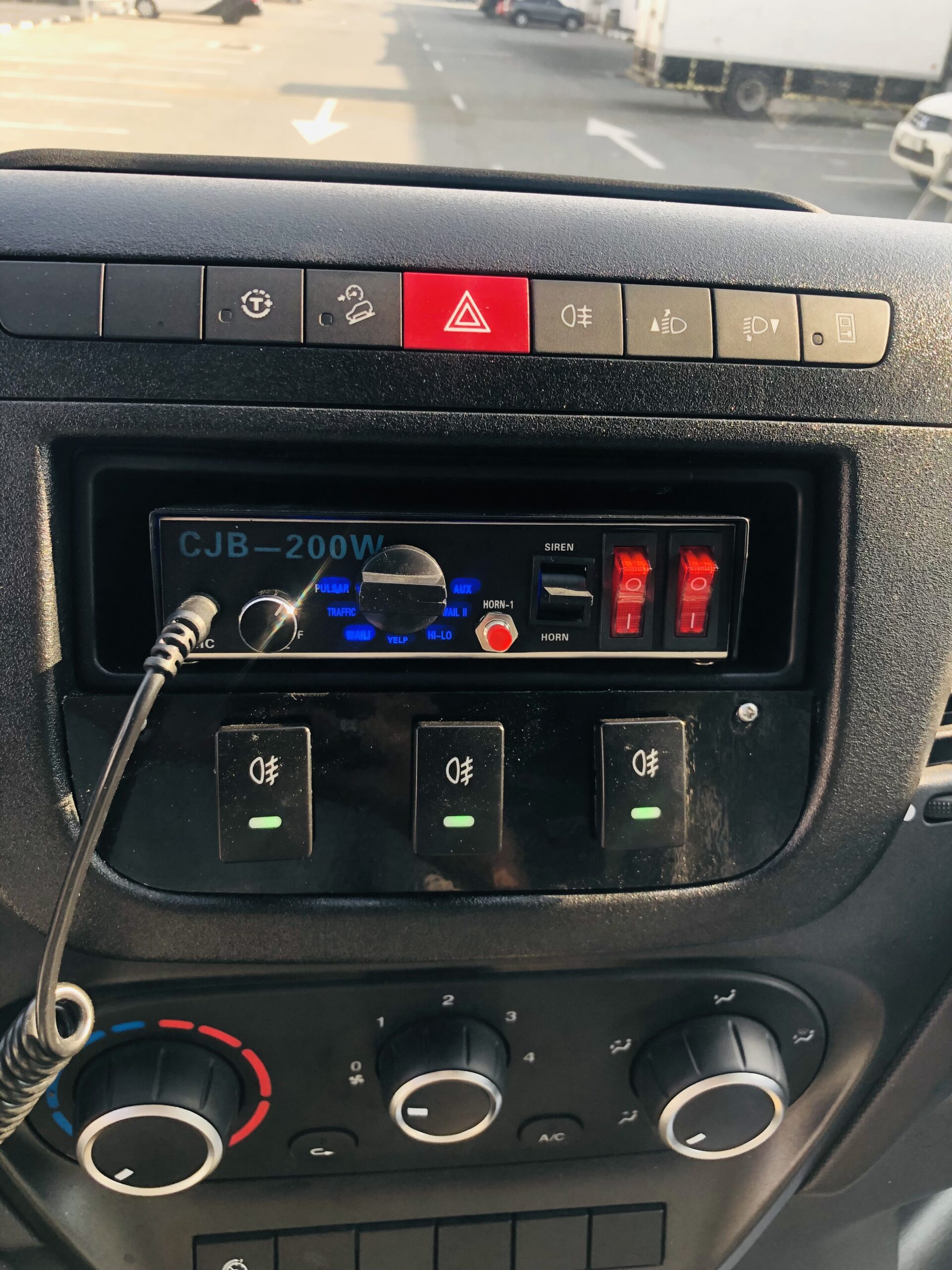

Emergency Warning SystemsECE R65 compliant LED roof lightbar, perimeter side strobes, front grill LED lights, and 100W electronic siren with PA microphone
Interior IlluminationDimmable LED ceiling lamps (>300 lx at patient plane), adjustable examination spotlight, and blue ambient night lights

🩺 4. Medical Equipment & ALS Support Matrix

Equipment DescriptionSpecification / StandardOperational Capabilities
Main Loading StretcherRoll-In Automatic Stretcher10G crash-tested self-loading main stretcher with floor lock system, adjustable headrest, safety belts, and serum pole
Auxiliary StretchersEN 1789 Compliant KitAluminum break-apart scoop stretcher, foldable evacuation stair chair, and vacuum mattress with suction pump
Defibrillator / MonitorMultiparameter Biphasic UnitBiphasic defibrillator with 12-lead ECG, SpO2, NIBP, EtCO2 monitoring, pacing, and AED shock mode
Transport VentilatorPortable Emergency VentilatorTurbine-driven transport ventilator with wall mount bracket, patient circuit hose, and CPAP/BiPAP support
Portable Aspirator UnitHigh-Vacuum Suction PumpRechargeable battery-powered suction aspirator with wall charging cradle and 1L canister
Central Oxygen SystemDual 10L Oxygen Grid2x 10L steel O2 cylinders, high-pressure regulators, wall-mounted flowmeters with humidifiers, and quick DIN outlets
Immobilization & First AidALS Resuscitation SuiteHDPE spine board, KED extrication device, cervical collars, limb splint sets, BVM resuscitators, and ALS trauma backpack

* Technical specifications are based on standard Iveco Daily Panel Van conversion architecture for Advance Life Support (ALS) & Emergency Medical Services (EMS).

“`

360° Ambulance View
